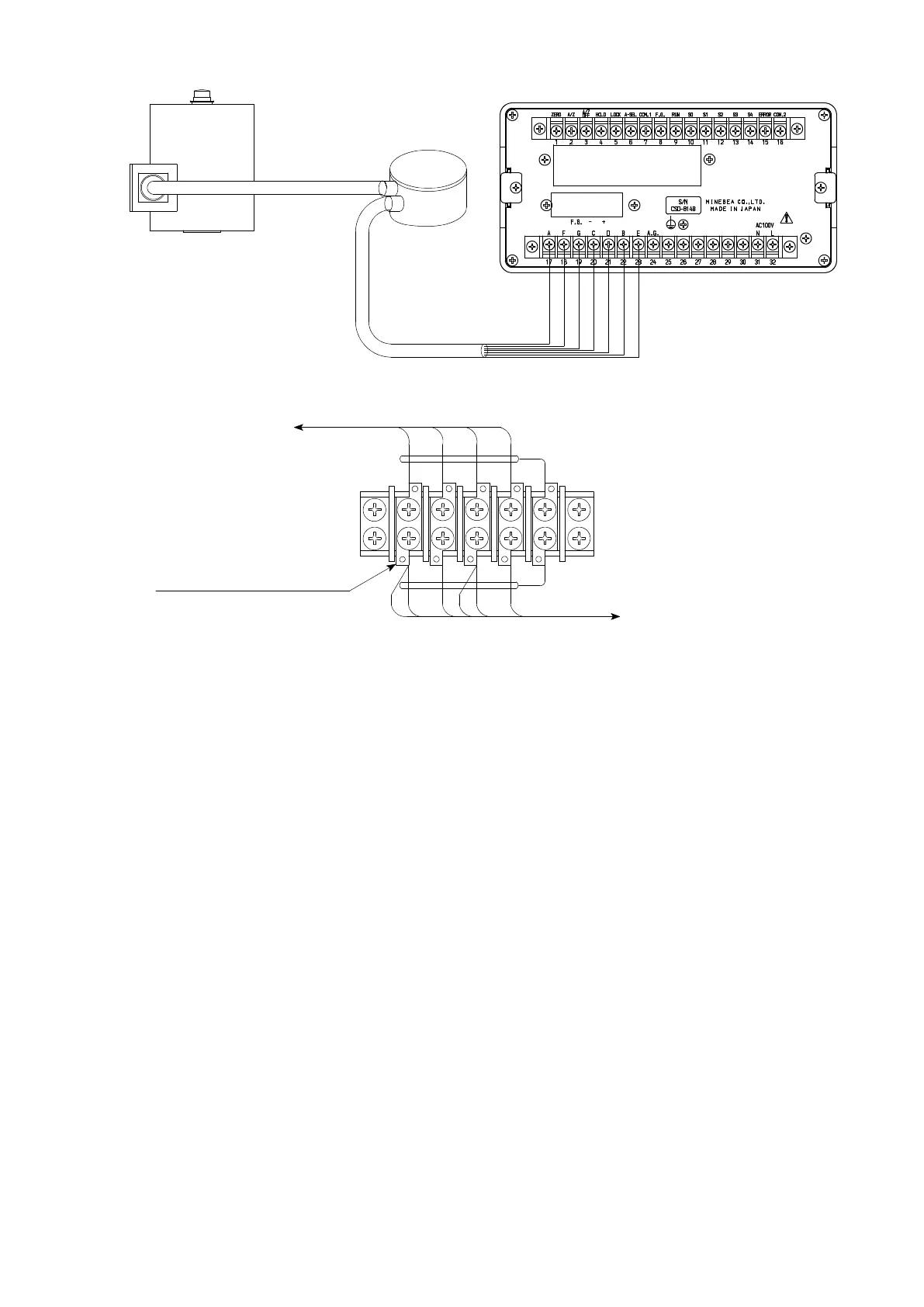

ii) In case of application of CAB−501(6−cores cable)

B−304

CAB−501

※

※※

※3 (Length of CAB−502 should be within 30 m totally.)

3 m

Junction box

※

※1 GRN

※

※1 BLU

Shield

RED

ORN

BLK

WHT

B−304 Internal terminal connection

To CSD−814B

To Load cell

RED

WHT

BLU

GRN

YEL(Shield)

RED

WHT

BLU

GRN

BLK

ORN

Terminal Pitch 9.5 mm

YEL(Shield)

Suitable crimp−type

terminal lugs:

1.25−4 or 2−4
