4−3−2.

Connection with external control input

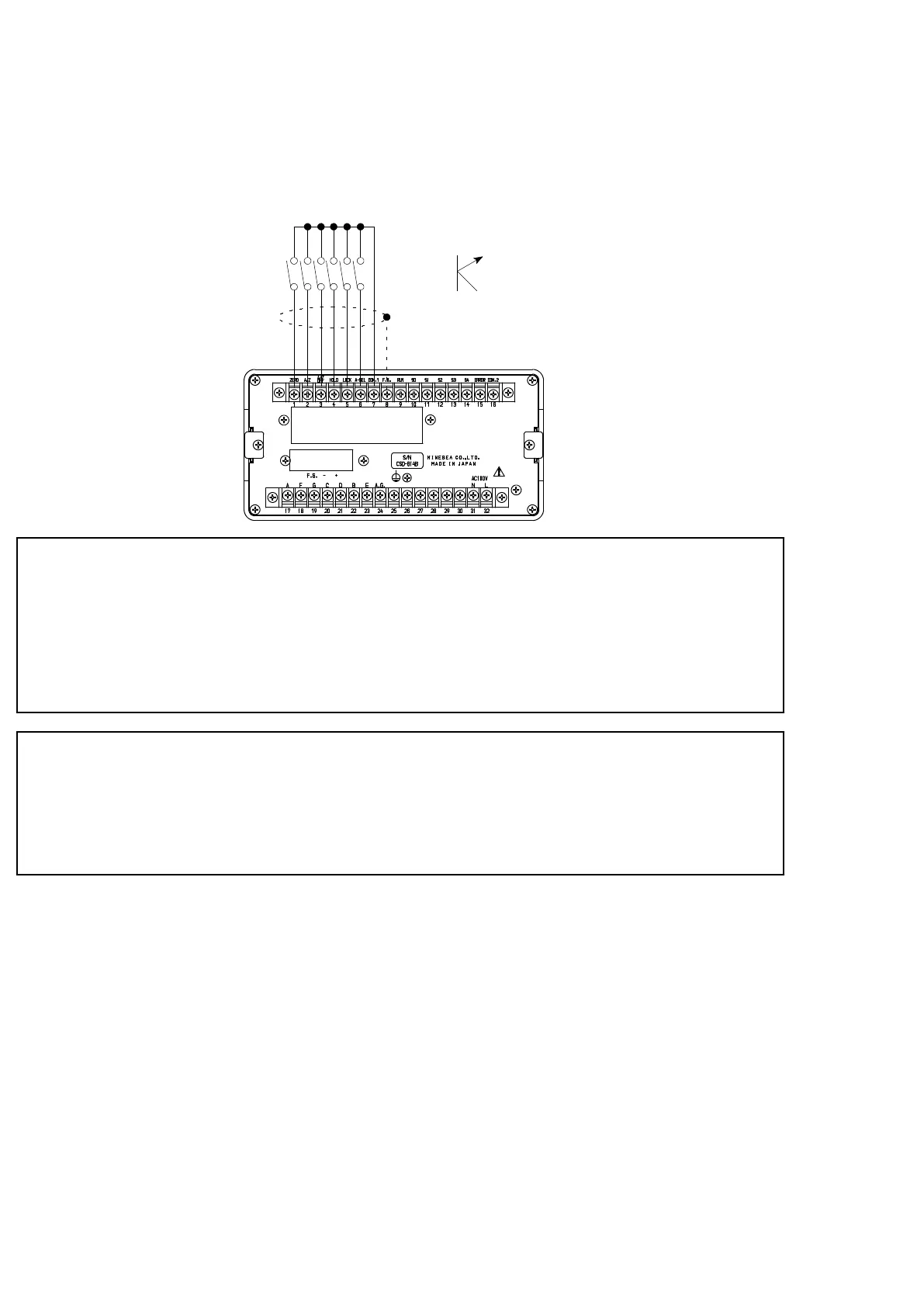

Connection with external control input of “ZERO”, “A/Z”, “A/Z OFF”, “HOLD”, “LOCK” and

“A−SEL” should be used with the contact between each terminal and “COM 1” at terminal

No.7, or with the open collector as the following figure indicates.

As for the function for each input, refer to the paragraph 7−1. External control input, contact

output.

Shield

● For the connection with external control input, be sure to apply

shielded cable, and shielded cable should be connected with F.G.

terminal (Terminal No.8) of the instrument.

If not connected, it may cause malfunction due to the effect from

external noise and so on.

Warning ● Connection with external control input should be made securely as

the figure indicates.

If neglected, it may cause an unexpected malfunction to the

instrument.
