Minebea CSD-814B

To Next Page

To Previous Page

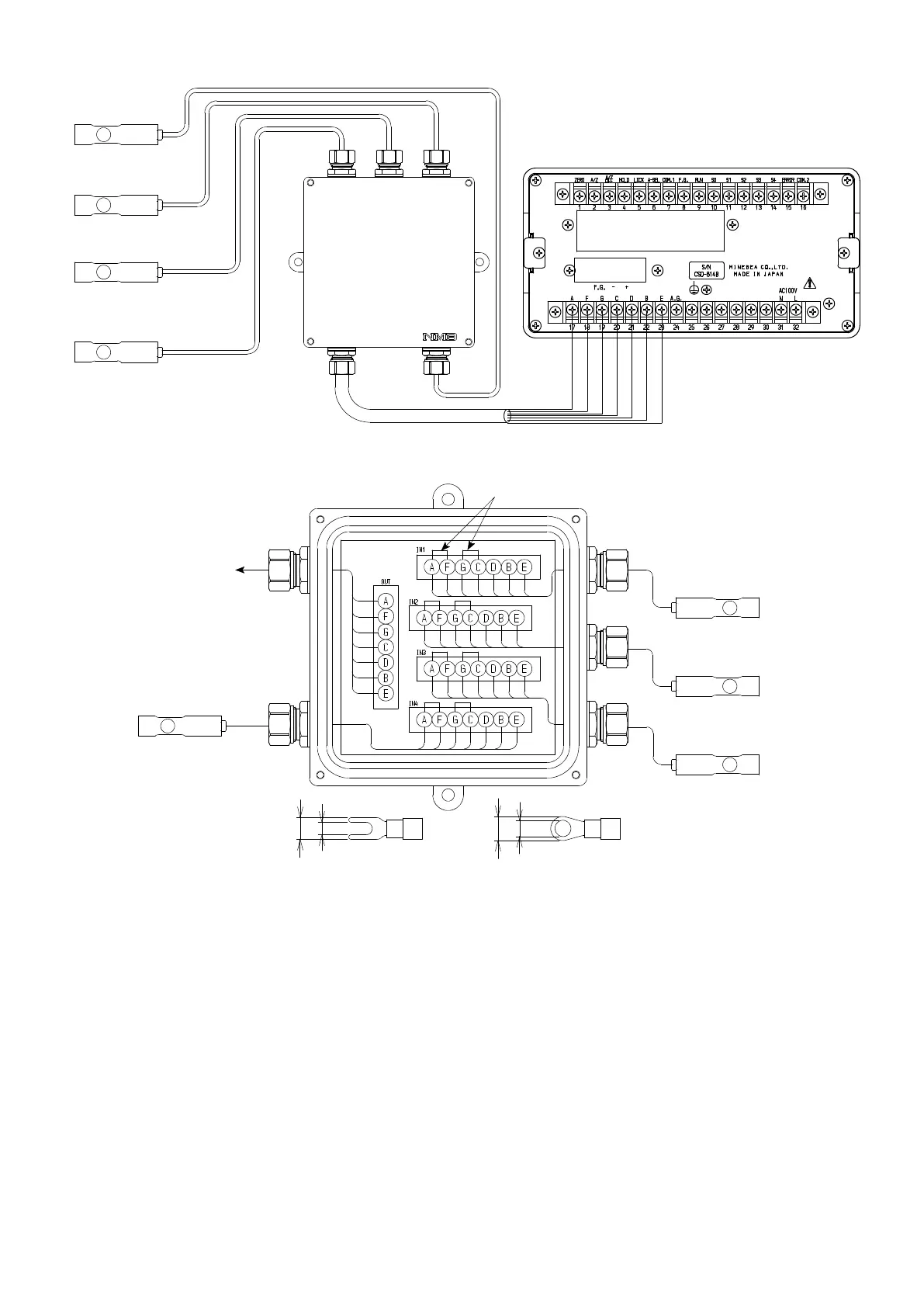

ii) In case of application of CAB−501(6−cores cable)

Shield

RED

WHT

ORN

BLK

※

※1 GRN

※

※1 BLU

※

※※

※3 (Length of CAB−501 should be within 100 m totally.)

CAB−501

SB−310 Internal terminal connection

Short bar

･Y type

･Round type

Input

Point 1

Input

Point 2

Input

Point 3

SB−310 Internal terminal connection

To CSD−814B

Output

Point

Input

Point 4

Suitable solderless

terminal

φB

φA

A: 3.2 mm or less

B: 7 mm or less

GN BL

OR BK

WH GN

OR BK

GN BL
