93
Procedures
・ Fine adjustment on the minimum value for
analog output.

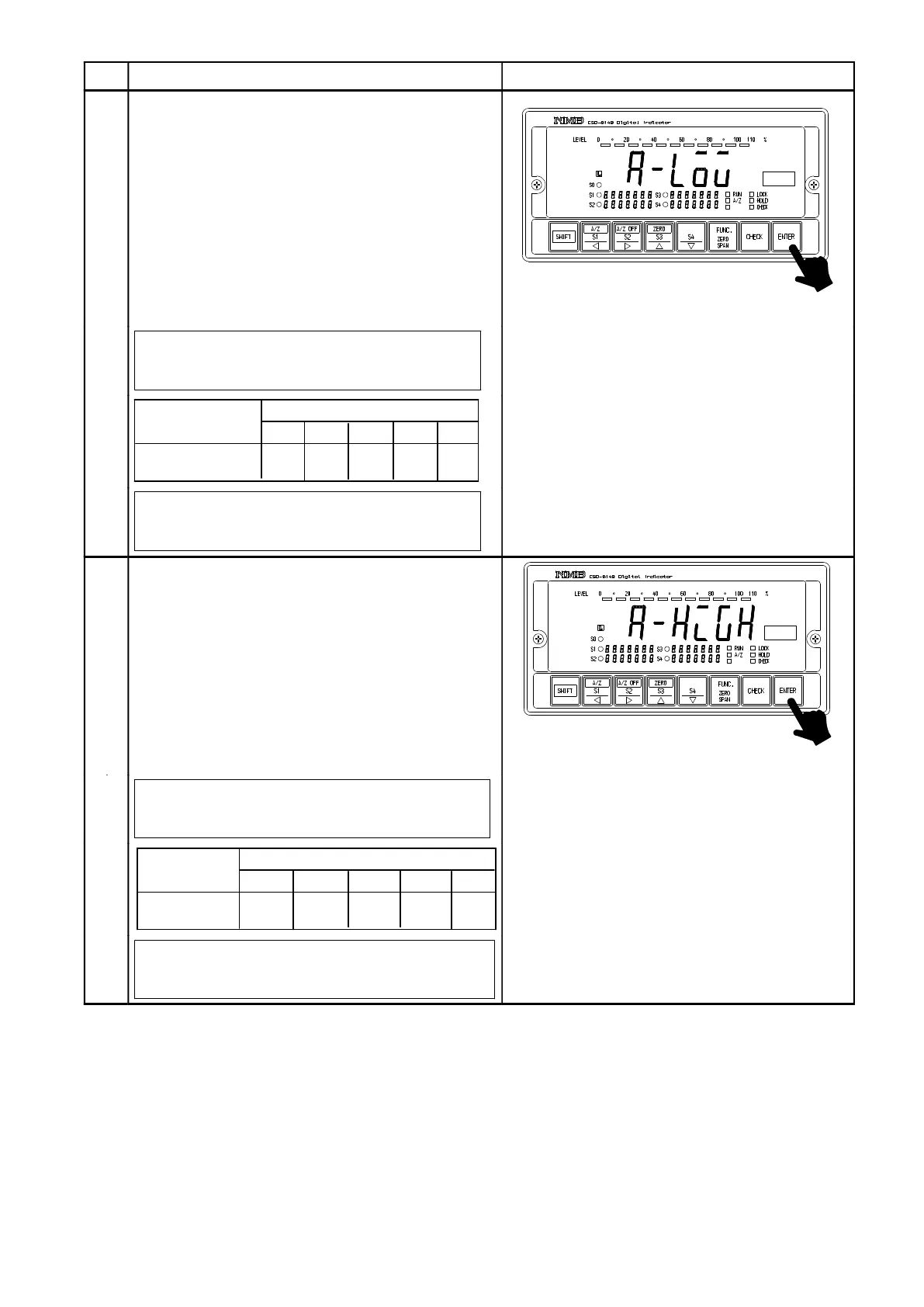

Press the key. VCAL mode can be entered,
then the load display will show “A−LOW”.
By pressing the key again, the load display
will start to flashing. At the same time, analog
output corresponding to the minimum analog
output value will output. Adjust so that the
output will become the minimum value with the
right keys.
: Increases analog output
The minimum values are as follows
depending on the options.
: Decreases analog output
Option No.
P07 P23 P24 P25 P26
Minimum
Value
4 mA 0 V 0 V 0 V 1 V
By pressing the key continuously, contin−
uous increase/decrease will be provided.
・ Fine adjustment on the maximum value for
analog output.
Press the key. The load display shows
“A−HIGH”. By pressing the key again, the
load display begins to flash on and off. At the
same time, analog output corresponding to the
maximum analog output value will output.
Adjust so that the output will become the
maximum value with the right keys.
: Increases analog output value
4
The maximum values are as follows,
depending on the options.
: Decreases analog output value.
Option No.
P07
Maximum
Value
20 mA 1 V
5 V
10 V
5 V
P23 P24 P25
P26
By pressing the key continuously, contin−
uous increase/decrease will be provided.
