5. Accessing the internal parts
MiR1350 User Guide (en) 05/2022 - v.1.2 ©Copyright 2021-2022: Mobile Industrial Robots A/S. 46
You can now access the Manual brake release switch and MiR Controller
interface. To access the motor controller carrier board and dynamic brake
contactors, follow these steps:

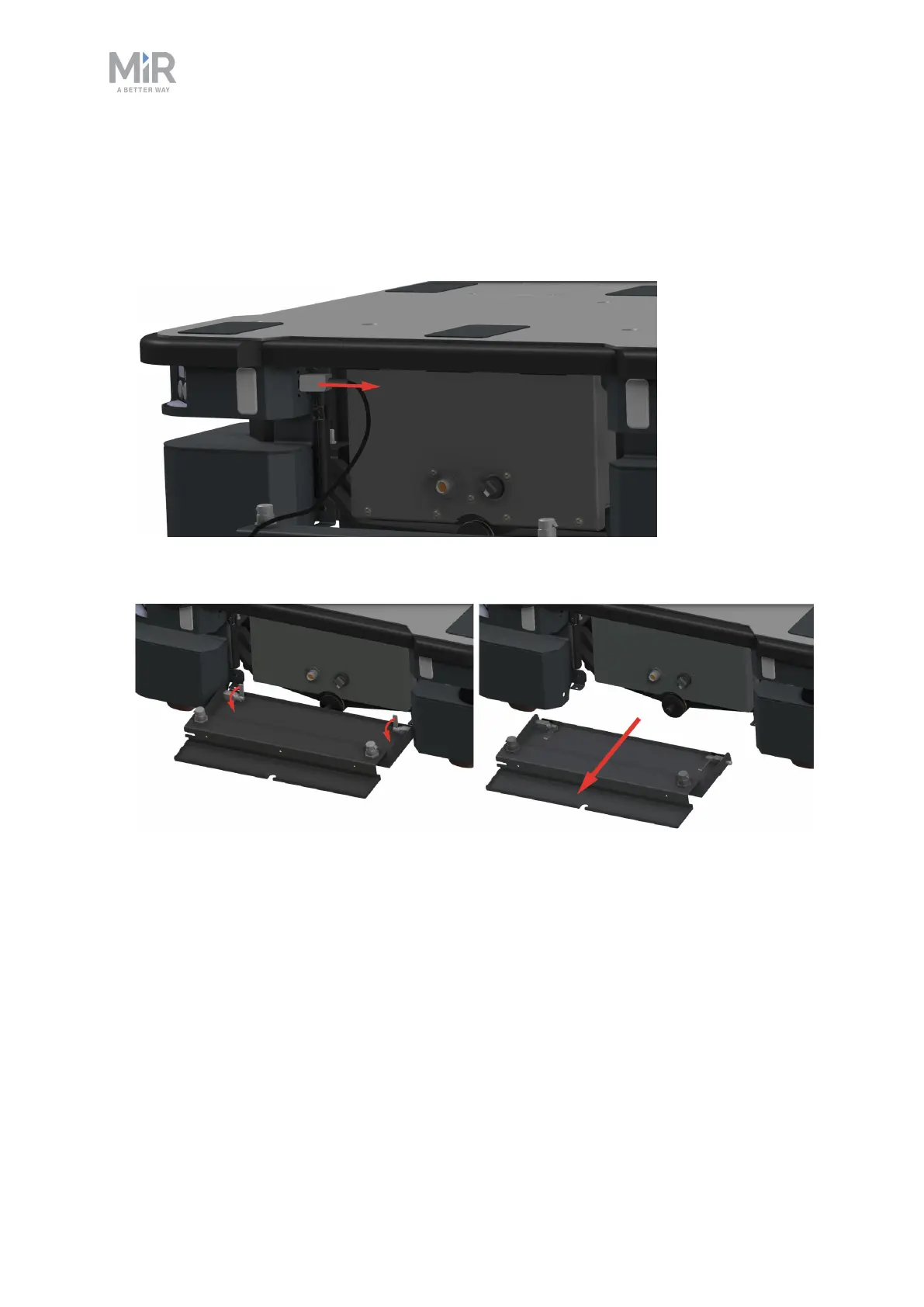

3. Disconnect the status light connector.
4. Remove the hatch by twisting the two hinges.
