(4) Example of script file description
The following provides an example of describing the script file to start user programs.
(a) When loading user programs from script file in standard ROM
The following gives an example of loading user programs ("fileA.out", "fileB.out")
in the standard ROM from the script file in the standard ROM.
POINT
Since the maximum number of arguments that can be specified for one command
is 12, up to seven arguments can be given to the function entry specified in
taskSpawn (funcB in the above example).
The task will not start if eight or more arguments are specified for the function
entry specified in taskSpawn (funcB in the above example).

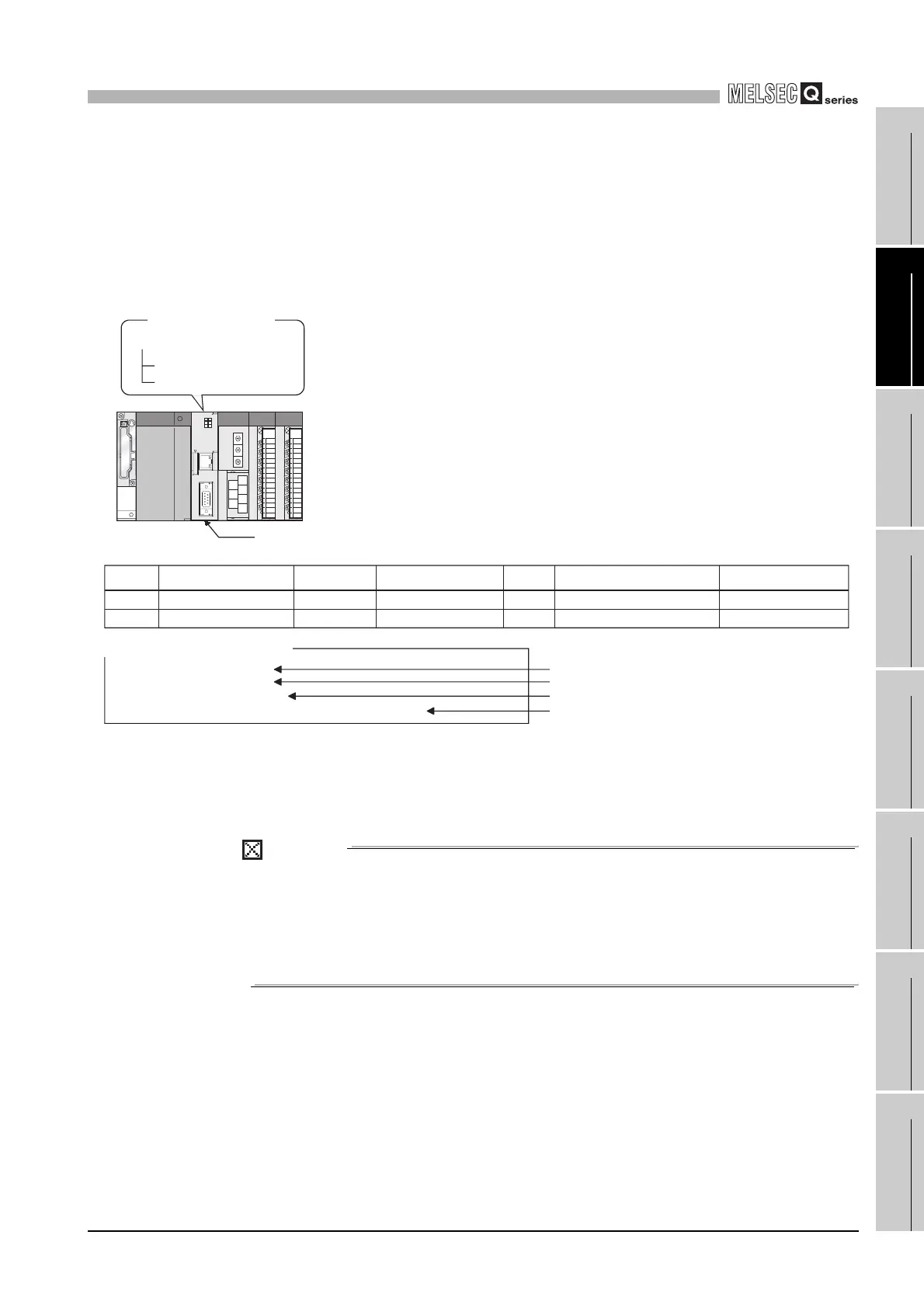

Figure 10.16 Example of script file description (loaded from standard ROM)
1
Default: 100
funcA
/ROM/DirA/fileA.out
2 taskB 120 5000
funcB
/ROM/DirB/fileB.out
ld (1, 0, "/ROM/DirA/fileA.out")
ld (1, 0, "/ROM/DirB/fileB.out")
sp (funcA, 0, 0, 0, 0, 0, 0, 0, 0, 0)
taskSpawn ("taskB", 120, 0, 5000, funcB,10, 0, 0, 0, 0, 0, 0)
1)
2)
3)
4)
/ROM
/DirB
"STARTUP.CMD"
"fileB.out"
*2
/DirA "fileA.out"
*1
Files in standard ROM
<Stored files>
*1 "funcA" function already included in fileA.out
*2 "funcB" function already included in fileB.out
C Controller module
<Task settings>
Startup
order
Task name Priority Stack size (byte)
Function
name
Argument specification File storage location
Default: tN (N=1, 2, ...) Default: 20000 None
Specified (First argument: 10)
<Example of script file description >
1) The "fileA.out" file is loaded from the standard ROM "DirA" directory.
2) The "fileB.out" file is loaded from the standard ROM "DirB" directory.
3) The "funcA" function is generated under the default task name (t1).
4) The "funcB" function is generated under the task name "taskB".
