5 - 24
5.6 Network Settings for 1:1 Connection
5
SETTINGS AND PROCEDURES BEFORE OPERATION
5.6 Network Settings for 1:1 Connection
Connect the development environment (personal computer) to the C Controller module on
a one-to-one (1:1) basis by a crossing cable.
After that, set the C Controller module using the C Controller setting utility on the
development environment (personal computer).
This section explains the network settings on the personal computer for 1:1 connection of
the C Controller module and development environment (personal computer).
(1) System configuration for 1:1 connection
(2) Network settings of development environment (personal computer)
(a) Network settings of development environment (personal computer)
Set the same network address as that of the C Controller module.

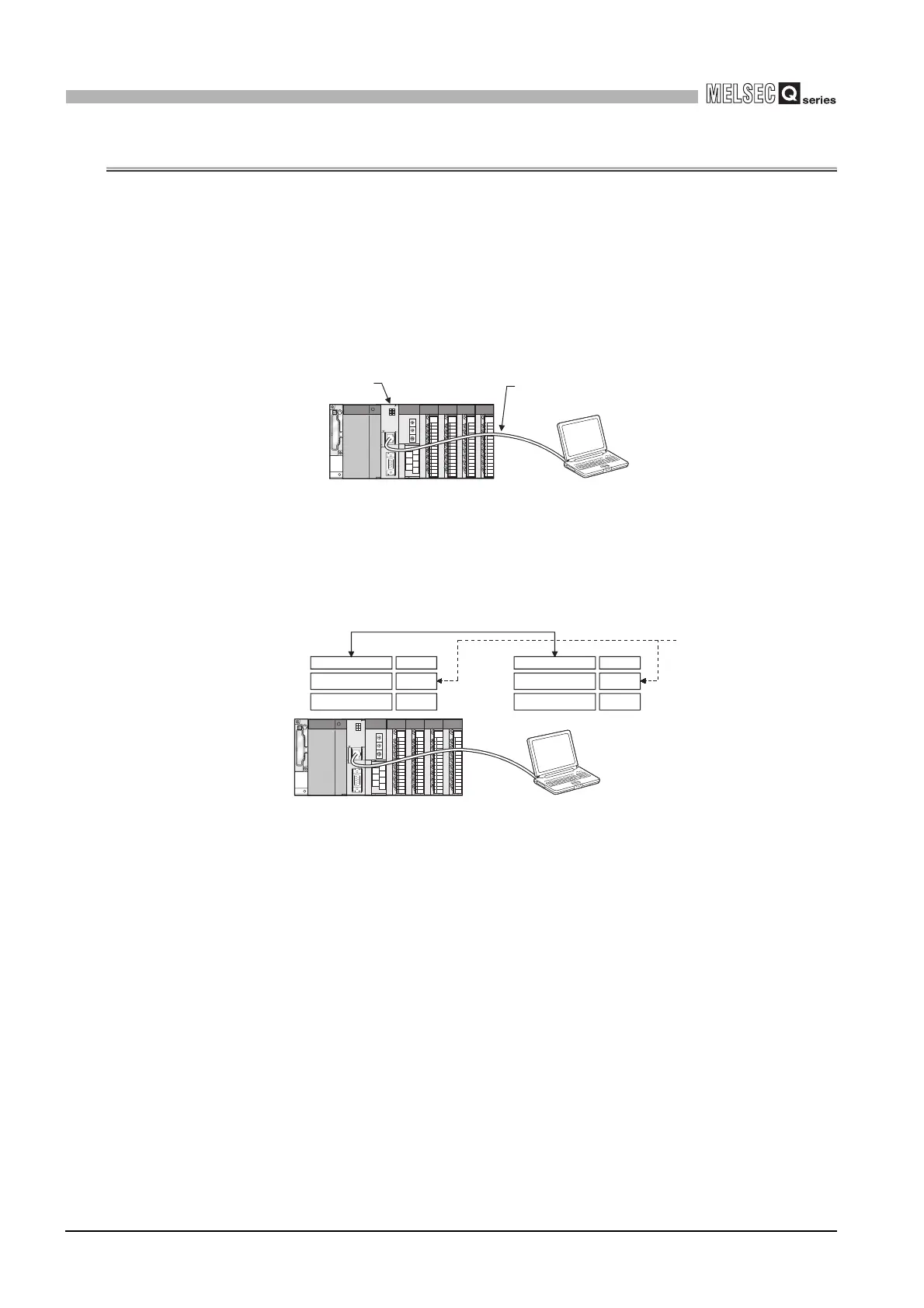

Figure 5.23 System configuration for 1:1 connection
Figure 5.24 Network settings of development environment (PC)
C Controller module
Crossing cable
Development environment
(personal computer)
C Controller module
IP address
Subnet mask
Network part
Host part
Network part Host part
Set the same value.
Set different values.
192.168.3. 3
0
1
0
255.255.255.
192.168.3.
255.255.255.
Development environment
(personal computer)
To Next Page
