4 - 57
4.7 Output (Y) Status Setting for Switching STOP to RUN
4
FUNCTIONS
4.7 Output (Y) Status Setting for Switching STOP to RUN
(1) Output (Y) status setting for the case where STOP status is changed to
RUN status
When the C Controller module status is switched from RUN to STOP, the RUN-state
output data (Y) are stored into the C Controller module and actual outputs are all
turned off.
During the STOP, the outputs (Y) cannot be changed from the user program.
The C Controller module offers the following two options for the case where the STOP
status is changed to the RUN status:
• The output status before STOP is output.
• The output (Y) is cleared.
(2) Setting applications
When the C Controller module is changed from STOP to RUN, whether to resume the
output from the previous state or not can be selected.
• When set to "Previous state"
• When set to "Recalculate"

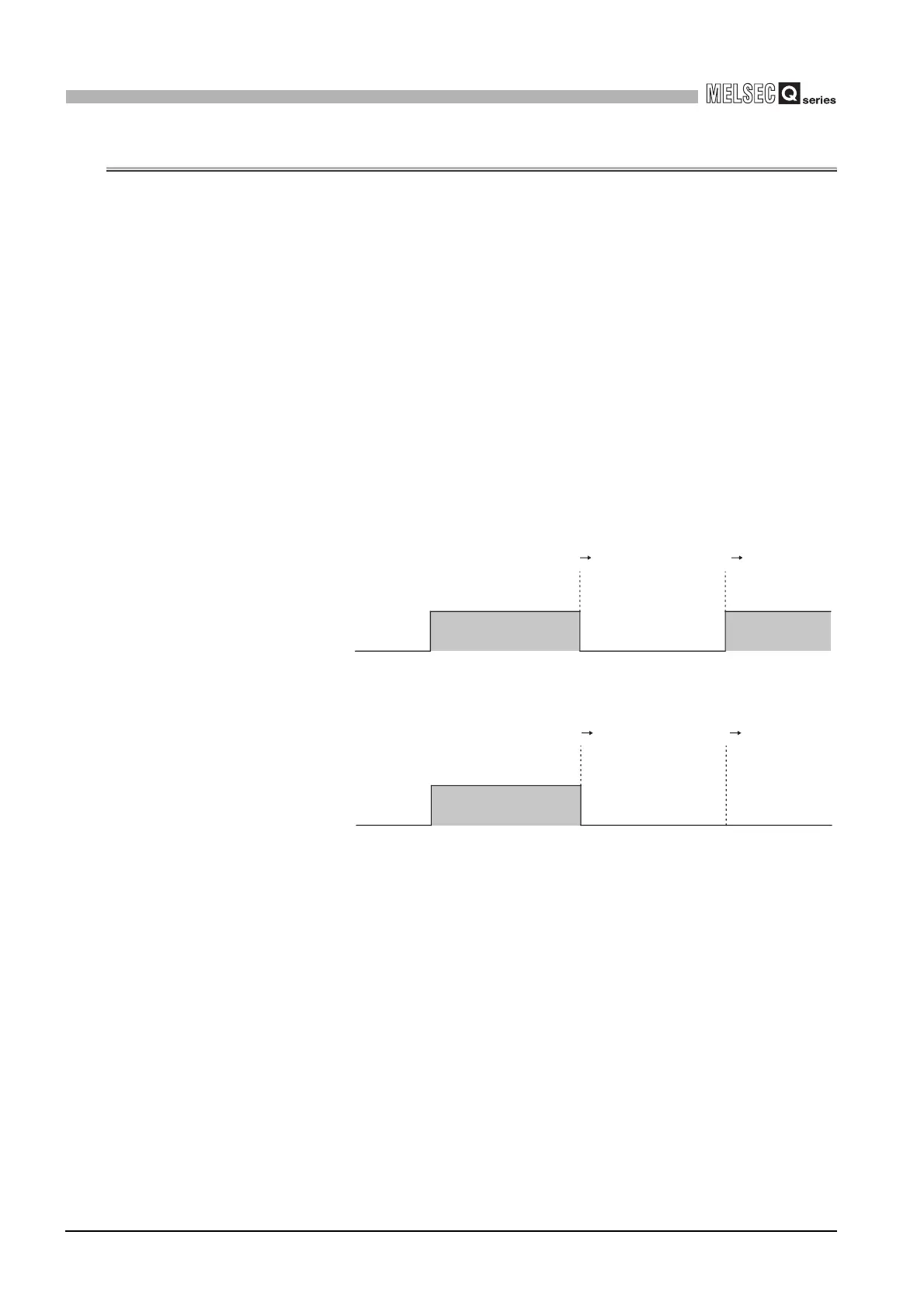

Figure 4.42 Timing chart for "Previous state" setting
Figure 4.43 Timing chart for "Recalculate" setting
STOP RUNRUN STOP
Output (Y)
Output (Y)
STOP RUNRUN STOP
