9.4.7 Operating Target setting screen
The logical station No. for access to a multiple CPU system can be set on this screen.
POINT
1. To update the settings into the C Controller module, write the parameters on
the <<Online operation>> tab and power on and then off or reset the C
Controller system.
2. Set a programmable controller CPU as the Target CPU.
(To next page)

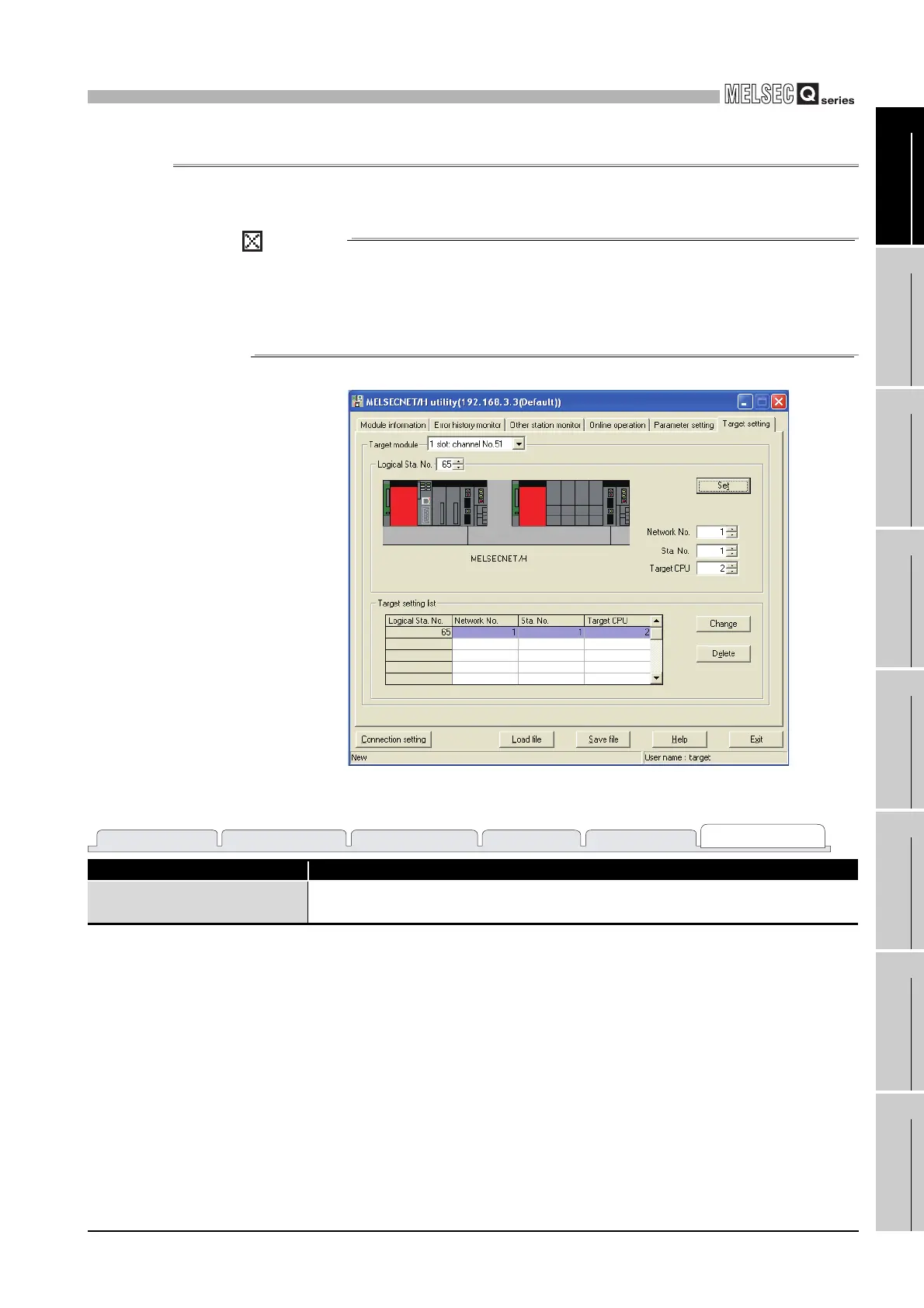

Figure 9.96 Target setting screen
Table9.88 Explanation of Target setting screen
Item Description
Target module
Select the module to be set.
(Initial value: "1 slot", Setting range: "1 slot" to "4 slot")
Module information Error history monitor Other station monitor Online operation Parameter setting
Target setting
To Next Page
