9 - 150
9.5 Device Monitor Utility
9.5.12 Other operations
9
UTILITY OPERATION
9.5.12 Other operations

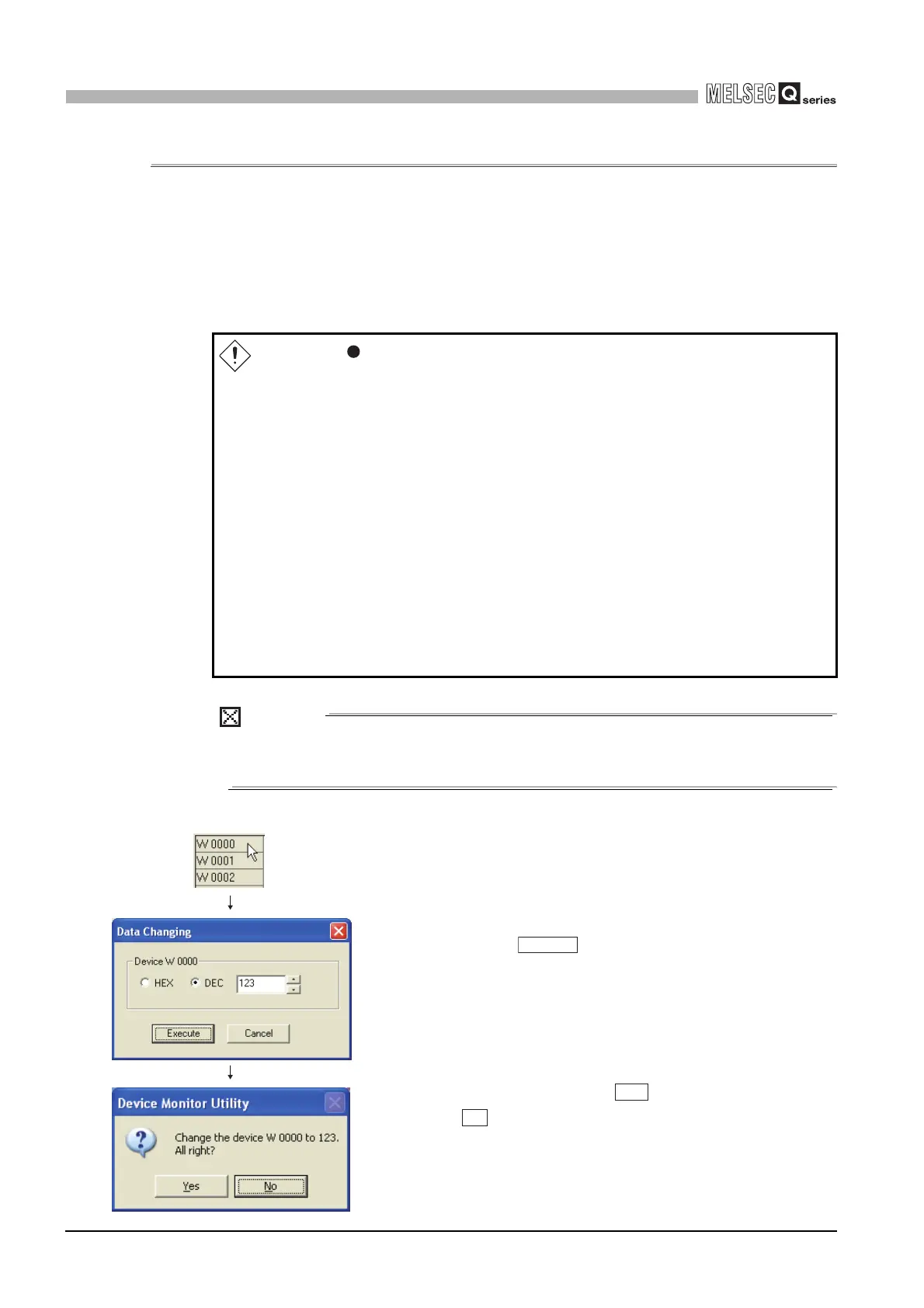

By double-clicking the device No. on the screen during monitor execution, word device
data can be changed or bit devices can be turned ON/OFF.
(1) Word device
The following explains how to change a word device.
(Only in 16-bit display format)
POINT
If a communication error has occurred during connection, make connection target
setting again.
Danger
When controlling (data change) a running C Controller module
connected to a development environment (personal computer),
configure an interlock circuit in the user program so that the whole
system will function safely all the time.
Also, before performing any other controls (operating status change
(status control)) to the running C Controller module or handling the
development environment (personal computer), configure an
interlock circuit in the user program to ensure the safety of the whole
system.
In these controls, especially, the one from an external device to a
remote C Controller module, the C Controller module side problem
may not be resolved immediately due to failure of data
communications.
To prevent this, create an interlock circuit in the user program, and
establish corrective procedures for communication failure between
the external device and C Controller module.
1) Double-click the word device No. whose value is to be
changed.
2) As the dialog box appears, set any value.
Then, click the button.
3) To accept the change, select in the dialog box.
Select to cancel.
Execute
Yes
No
To Next Page
