9.2 C Controller Setting Utility
9.2.9 Operating Multiple CPU setting screen
9
UTILITY OPERATION
9.2.9 Operating Multiple CPU setting screen
Make the parameter setting (Multiple CPU setting) of the C Controller module.
Set the parameters related to the multiple CPUs.
POINT
1. In a multiple CPU system configuration, utilize the multiple CPU parameters
set to the QCPU (Q mode). Utilizing the multiple CPU parameters prevents
mismatches between the settings of the C Controller module and those of
each programmable controller CPU.
2. When the multiple CPU parameters of the QCPU (Q mode) are not utilized in
a multiple CPU system configuration, complete the <<Multiple CPU setting>>
tab setting and then make the I/O assignment setting.
3. To update the settings into the C Controller module, write the parameters from
the <<Online operation>> tab and power off and then on or reset the C
Controller system.

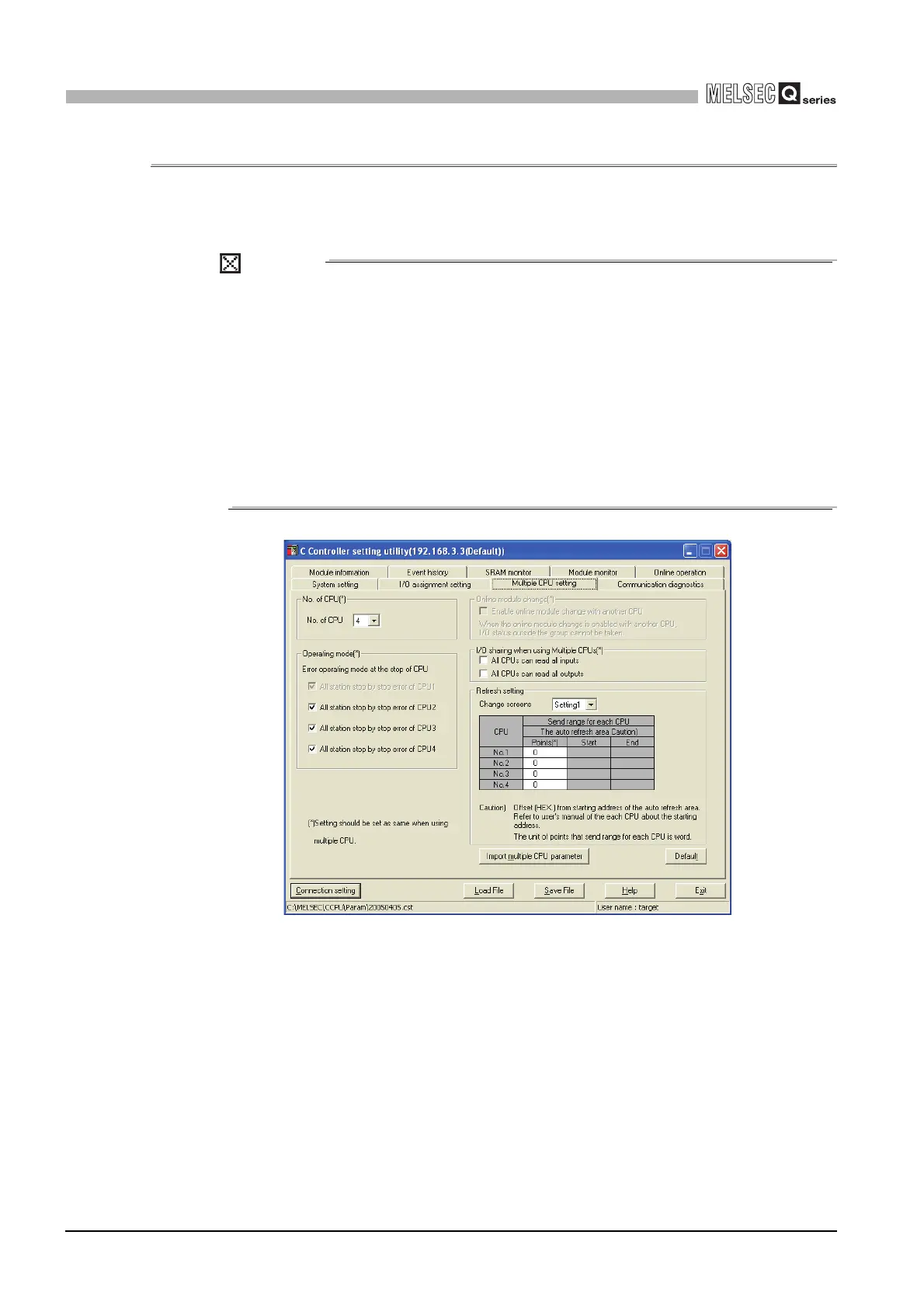

Figure 9.44 Multiple CPU setting screen
