17.2 Setting Parameters Added for Multiple CPU System
17.2.2 Parameters required for multiple CPU system
17
STARTING MULTIPLE CPU SYSTEM
17.2.2 Parameters required for multiple CPU system
The following parameters must be set for the multiple CPU system.
The same parameters must be set to "Items of the same setting to all CPU modules" of all
CPU modules in the multiple CPU system.( Section 15.1)

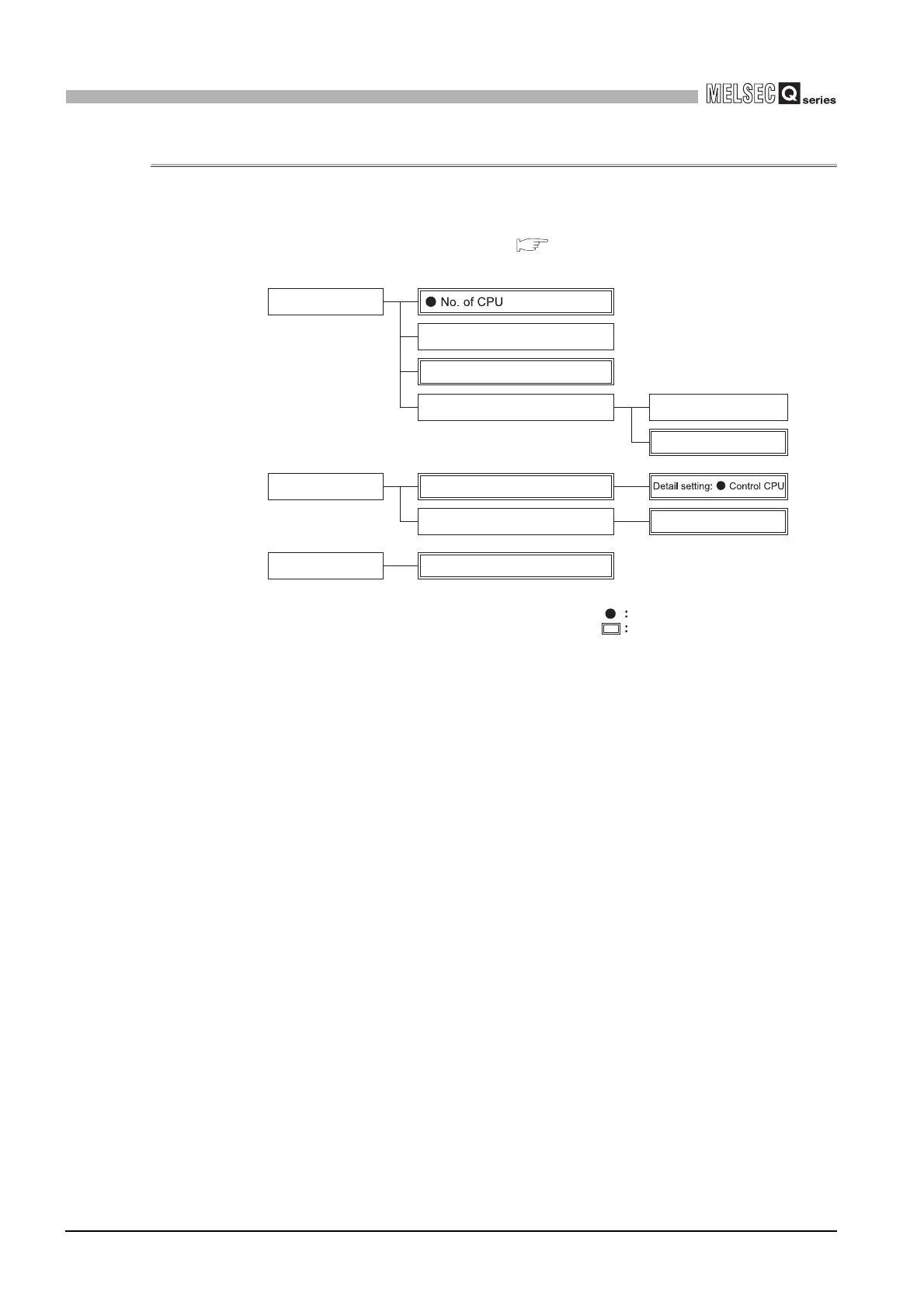

Figure 17.3 List of parameters necessary for multiple CPU system
Multiple CPU setting
Operating mode
I/O sharing when using Multiple CPUs
Refresh setting
Change screens
Send range for each CPU
I/O assignment setting
I/O assignment
Base setting
Slots
System setting
Points occupied by empty slot
Setting required
Item of the same setting to
all CPU modules
