6 - 1
6.1 Relation between No. of Base Units and No. of Slots
6
I/O NUMBER ASSIGNMENT
CHAPTER6 I/O NUMBER ASSIGNMENT
This chapter explains the I/O number assignment required for the C Controller module to
communicate data with I/O modules and/or intelligent function modules.
6.1 Relation between No. of Base Units and No. of Slots
The C Controller module can construct a system in the following configurations.
• One main base unit and extension base units
• One slim type main base unit only
(1) Applicable configuration and slots
Refer to Section 2.1.4 for the applicable configurations and slots.

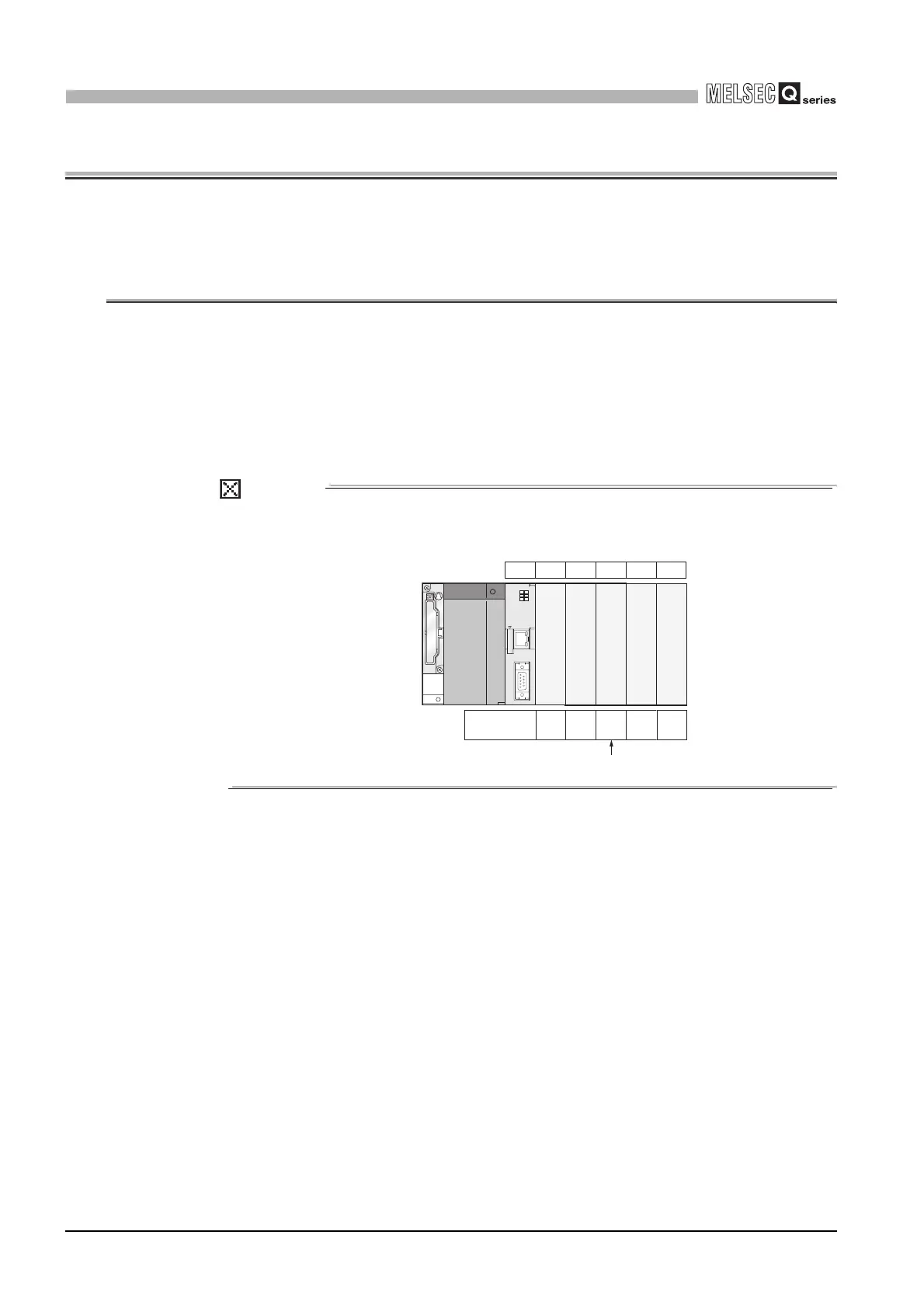

POINT
The available slots (modules) include empty slots.
(If Slot 2 is set to "Empty, 0 point" as shown below, it occupies one slot.)
Occupies 1 slot.
0CPU 1 3 42
Number of
slot points
16
points
16
points
16
points
16
points
0
point
Input OutputEmptyInputInput
