Mitsubishi MELSEC Q Series User Manual

4 - 71
4.14 Interrupt from Intelligent Function Module
4
FUNCTIONS
4.14 Interrupt from Intelligent Function Module
(1) Interrupt from intelligent function module
The C Controller module can receive the interrupt event from the interrupt module and
the intelligent function module.
In the user program, create a program to receive an interrupt event and execute the
relevant processing using the QBF_WaitUnitEvent function.
(2) Setting of interrupt from intelligent function module
To receive the interrupt from the intelligent function module, set "Intelligent function
module setting" by the <<System setting>> tab of the C Controller setting utility.
(a) Intelligent function module interrupt event setting
1) CPU side "Interrupt event start no."
Set the interrupt event start No. on the C Controller module.
Setting range: 50 to 255
2) CPU side "Interrupt event no. of module"
Set the number of interrupt execution conditions set by the intelligent function
module.
Setting range: 1 to 16 (conditions)
3) Intelligent module side "Start I/O No."
Set the start I/O No. of the intelligent function module from which the interrupt
is to be performed.
Setting range: 0000 to 0FF0, 3E00 to 3E30(
H)
4) Intelligent module side "Start SI No."
Set the intelligent function module interrupt pointer No. set at the intelligent
function module.
Setting range: 0 to 15

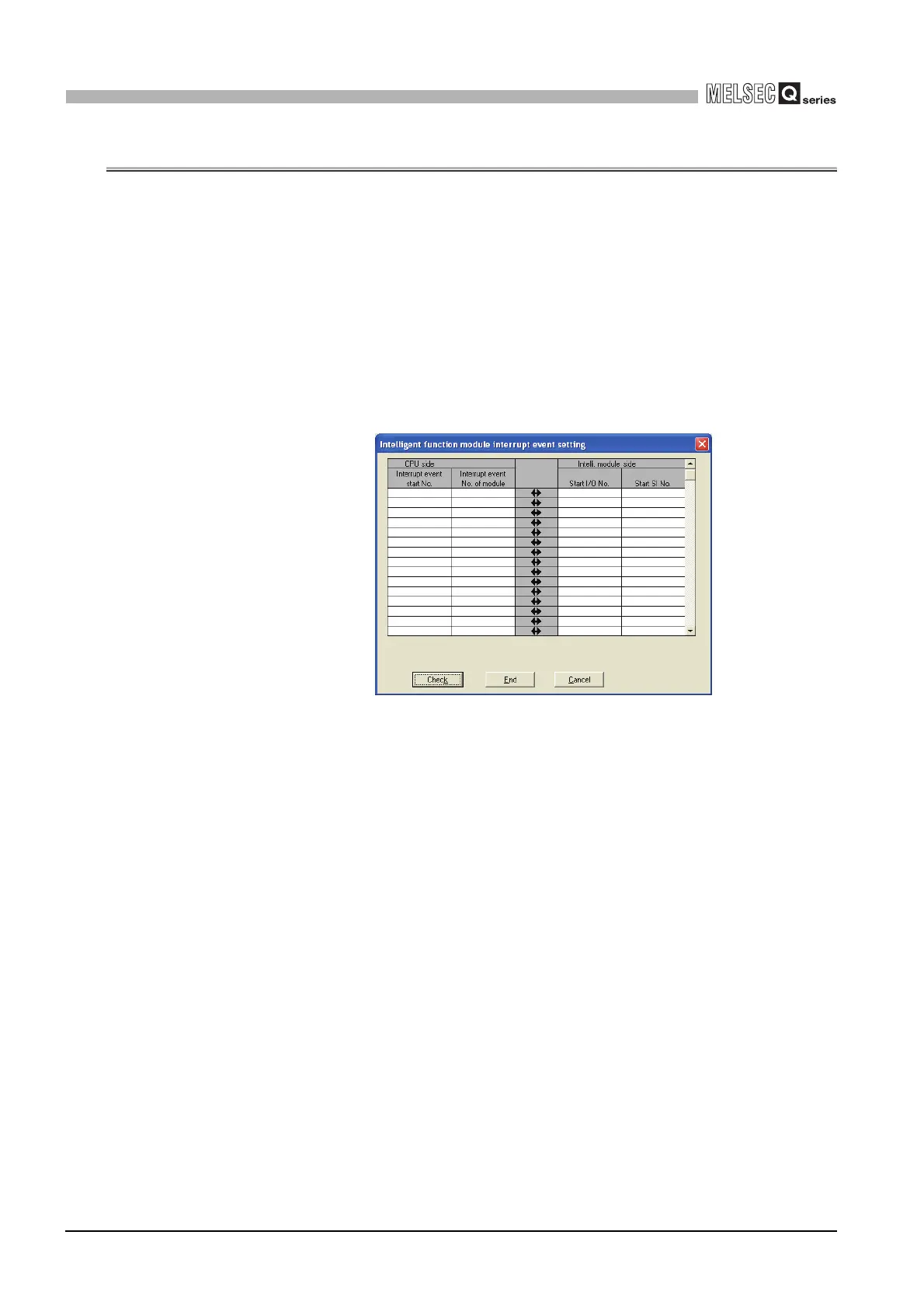

Figure 4.53 Intelligent function module interrupt event setting
