15.1.1 Setting No. of CPUs (Setup required)
(1) No. of CPU
On the <<Multiple CPU setting>> tab of the C Controller setting utility, select the
number of CPU modules to be used in the multiple CPU system.
(2) Reserving empty slots
To reserve "Empty slot" for mounting a CPU module in the future, set "CPU (Empty)"
on the <<I/O assignment setting>> tab of the C Controller setting utility.
( Section 13.1)
(Example)When reserving one out of four CPU slots for future use
Set 4 to No. of CPU on <<Multiple CPU setting>>, and set "CPU (Empty)"
to Slot 3 (the 4th CPU module) on <<I/O assignment setting>>.

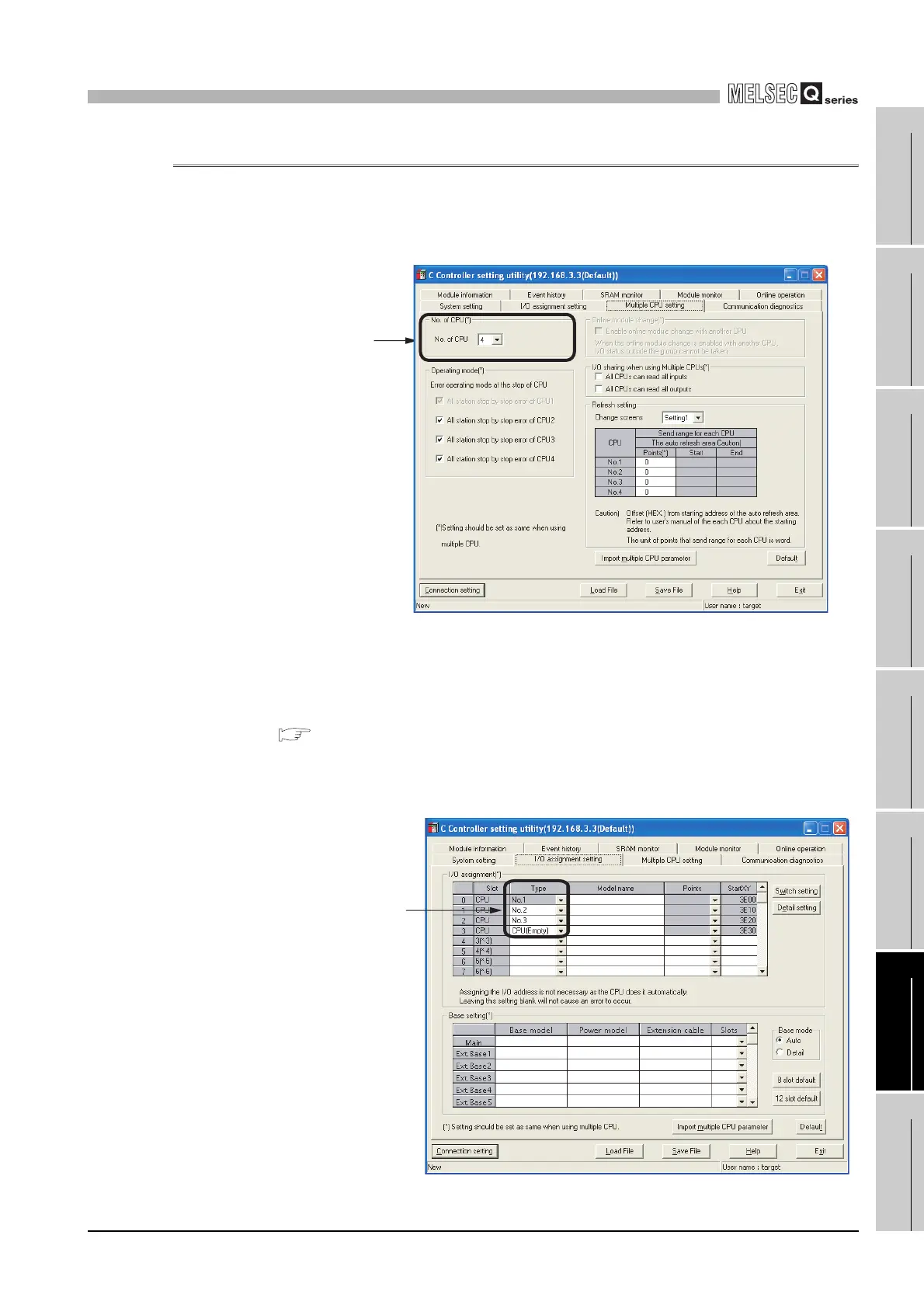

Figure 15.1 No. of CPU setting screen
Figure 15.2 Empty slot setting screen
No. of CPUs
"CPU (Empty)" setting
