MOOR INSTRUMENTS moorLDI2 RESEARCH USER MANUAL
144
2.2.3 Iontophoresis Protocol Configuration
To set up an automatic iontophoresis protocol select Ionto or click the ION icon

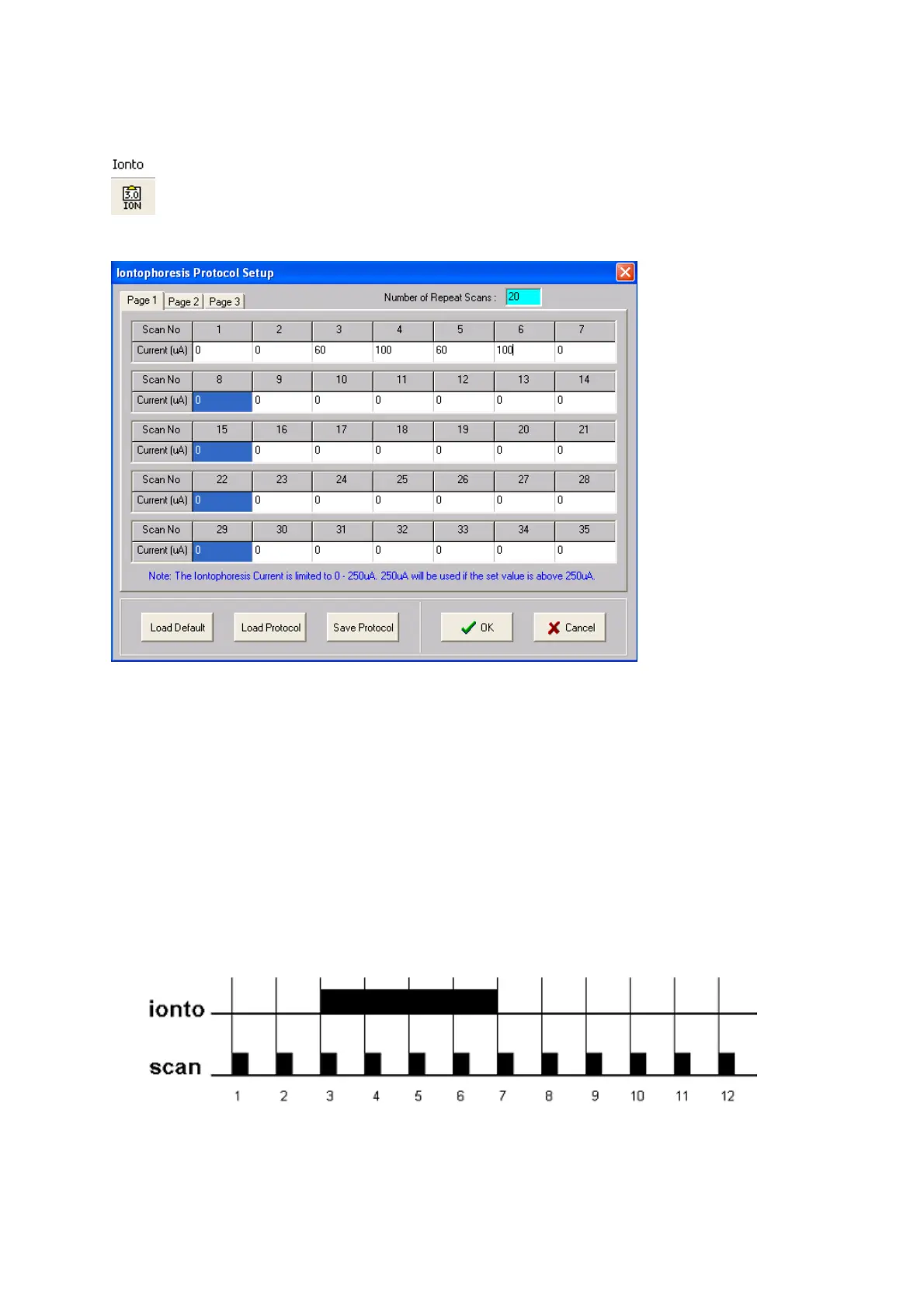

Iontophoresis Protocol Menu
The minimum current that will activate the MIC1-e controller is 10µ
µµ
µA.
The minimum current that will activate the MIC2 controller is 4µ
µµ
µA*.
The maximum current that can be selected is 250µ
µµ
µA for MIC1-e or MIC2
* A minimum current of 1 µ A can be obtained when the MIC2 is used in manual mode.
Other variables within the Iontophoresis Protocol Settings window are:
Number of Repeat Scans - the total number of scans.
The total duration of iontophoresis is determined by the Repeat Interval and the number of scans
during which a current is selected. The repeat interval is set in Scanner Setup, Repeat and Line Scan.
(see Section 8)
Schematic to show the Iontophoresis Current/ Scan interval protocol
