MOOR INSTRUMENTS moorLDI2 RESEARCH USER MANUAL
19
3.5 CABLE CONNECTIONS
If a clinical mobile stand has been supplied, refer directly to Section 3.1.1
N.B. the mains supply to all equipment should be turned OFF until all connections have been made.
Connect cables as shown schematically below:
3.5.1 CABLING
Analogue Camera Model:
CONTROL
BOX
PORT 1
PORT 2
25 WAY SCREENED CABLE
8 WAY SCREENED CABLE
RS232
LINK
COMPUTER
PRINTER
VIDEO LINK
25 WAY 'D' TYPE
8 WAY
Circular
TYPE
SCANNER
HEAD
PHONO
SOCKET

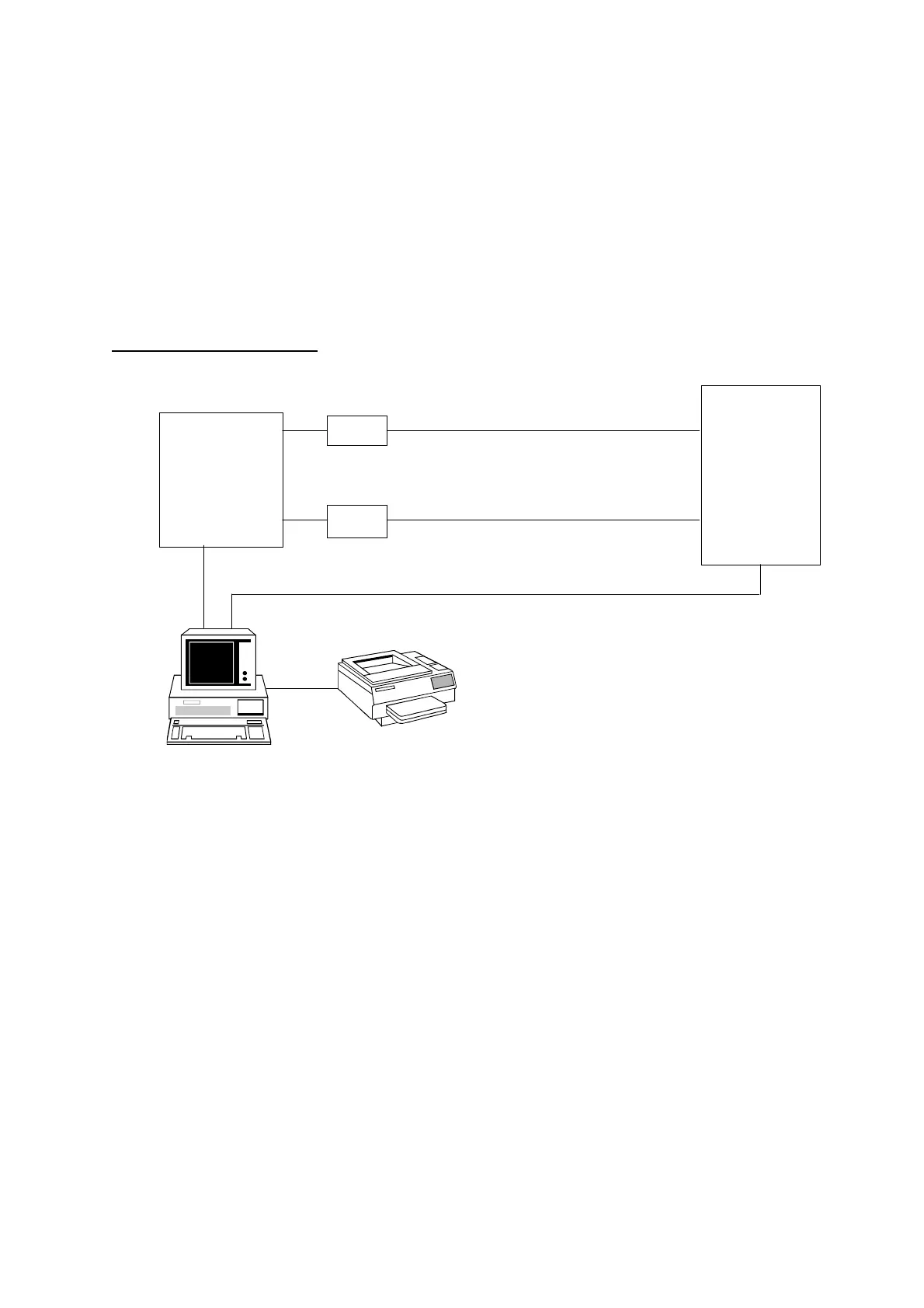

FIGURE 3A – DIAGRAMMATIC REPRESENTATION OF THE CABLE CONNECTIONS
(ANALOGUE CAMERA MODEL)
