MOOR INSTRUMENTS moorLDI2 RESEARCH USER MANUAL

10.4.5

PASTE FLUX IMAGE

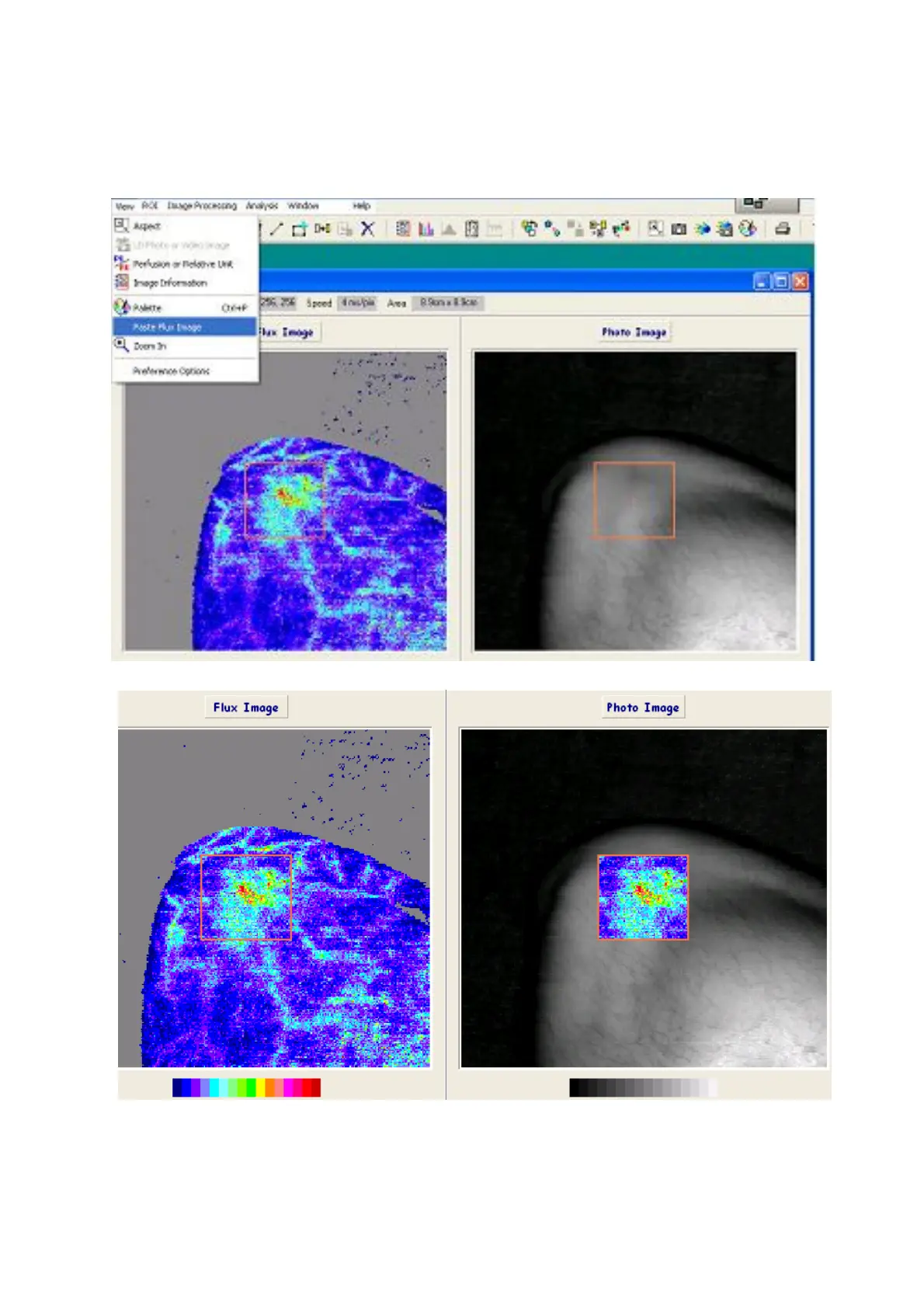

One or more (uptp 5) rectagular ROIs on the Flux image can be pasted on to the Photo Image.
