MOOR INSTRUMENTS moorLDI2 RESEARCH USER MANUAL
11
2. SYSTEM DESCRIPTION

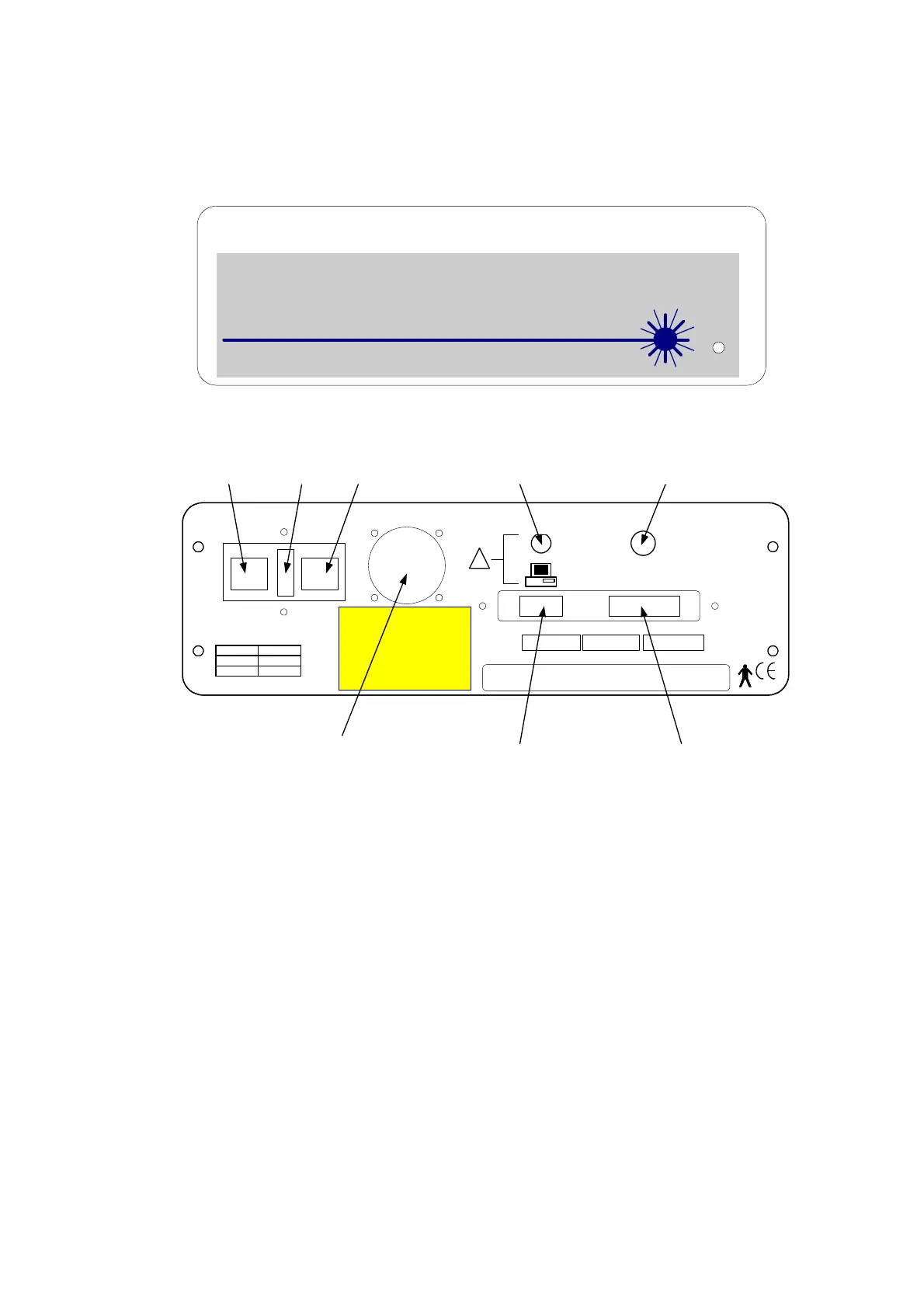

Figures 2A, 2B and 2C show the layout of the front and rear panels of the moorLDI2 control unit.
Moor Instruments
moorLDI
Laser Doppler Imager Control
POWER
FIGURE 2A - FRONT PANEL OF THE moorLDI2 CONTROL UNIT
1. Socket for mains lead 2. Fuses.
3. ON/OFF switch. 4. Fan.
5. BNC output for devices (e.g MIC2). 6. Port 2: from scan head.
7. RS232 lead to PC. 8. Port 1: from scan head.
FIGURE 2B - BACK PANEL OF THE CONTROL UNIT (ANALOGUE CAMERA MODEL)
SUPPLY FUSES 250v
220 - 240V 500 mA (T)
100 - 120V 1 A (T)
100 - 230V ~
50 - 60 Hz
50 VA
WARNING
ISOLATE MACHINE BEFORE REMOVING COVERS
ATTENTION
ISOLER MACHINE AVANT D'ENLEVER COUVERCLES
ACHTUNG
MASCINE ISOLIEREN BEVOR ENTFERNUNG DER DECKEL
AVISO
AISLE LA MAQUINA ANTES DE QUITAR
ATTENZIONE
ISOLARE MACCHINA PRIMA DI RIMOUVER COPERCHI
!
Port 1
Port 2Non-isolated O/P
Made in England by Moor Instruments Ltd Millwey, Axminster, Devon, EX13 5HU
Tel: +44 (0)1297 35715 Fax: +44 (0)1297 35716
www.moor.co.uk
CB SnDom Model
4
7 8
6532
1
0120
