If the Repeat Interval is set to 0:0:0, a fast repeat scan mode will be selected where the solenoid will
not be turned off between each succesive scan. This ensures that the time between the finish of one
scan and the start of the next is a minimum.
6.3.3.2 Line Scan Setup
This is a special type of repeat scan where Y is kept constant (there is no beam movement in Y
direction during a line scan ie the beam is moved backwards and forwards along the same line ). The
maximum line number in a Line Scan is 26250 (250x105).
If the Number of Repeat Lines is less than 250 the Line Scan will be treated as a Single Image and
displayed as such. If the Number of Repeat Lines is more than 250 the Line Scan will be treated as a
Repeat Image. For example if the Number of Repeat Lines is 1000 then 4 scan images of 250 lines
will be displayed.
The line position is defined by the bottom line Y0 of the marked area of the scan area rectangle in
the Image Scan page. (Y0 must be an even number).

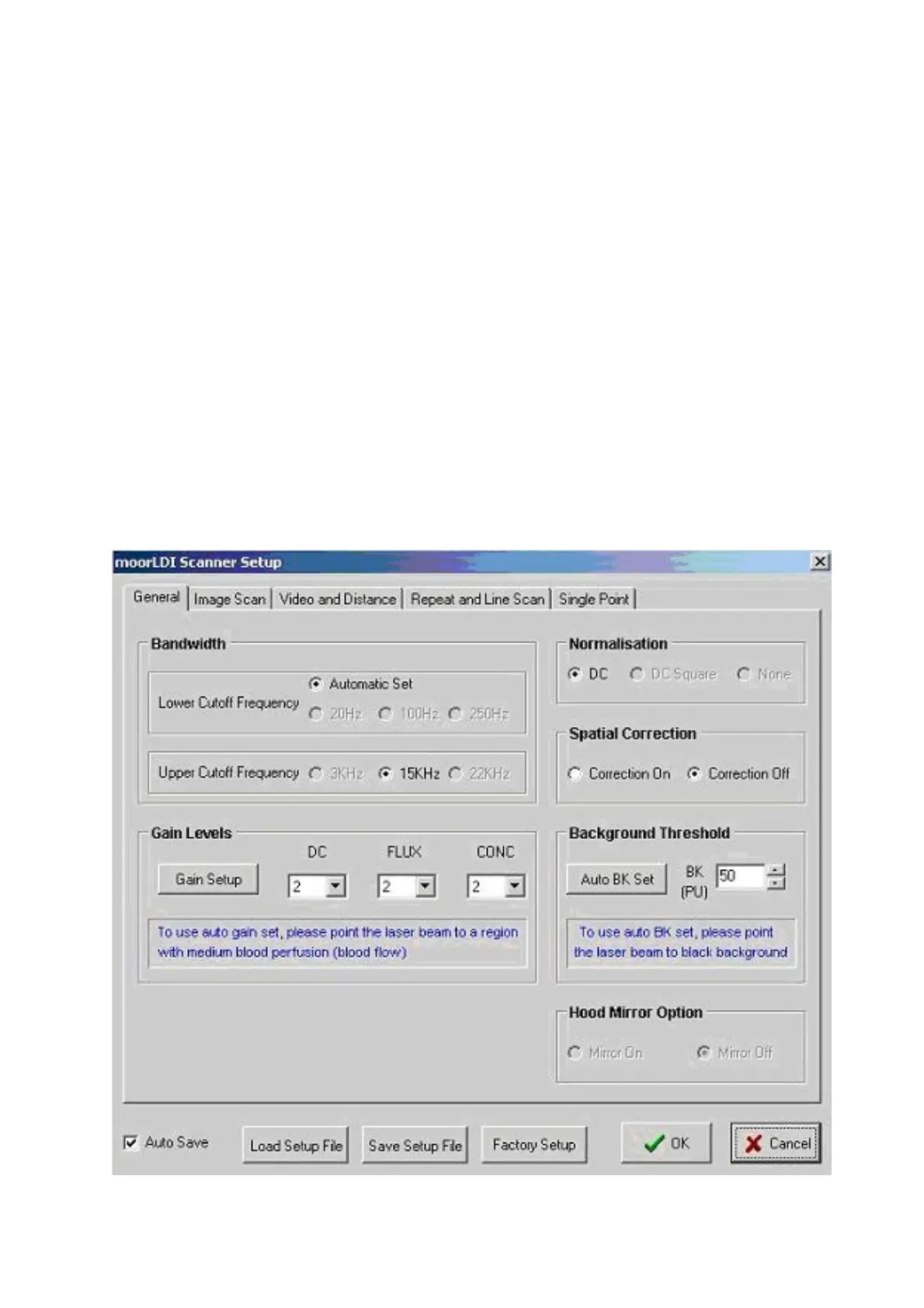

6.3.4 GENERAL WINDOW OF SCANNER SETUP
6.3.4.1 Bandwidth
