MOOR INSTRUMENTS moorLDI2 RESEARCH USER MANUAL

5. INTRODUCTION TO moorLDI2 SOFTWARE

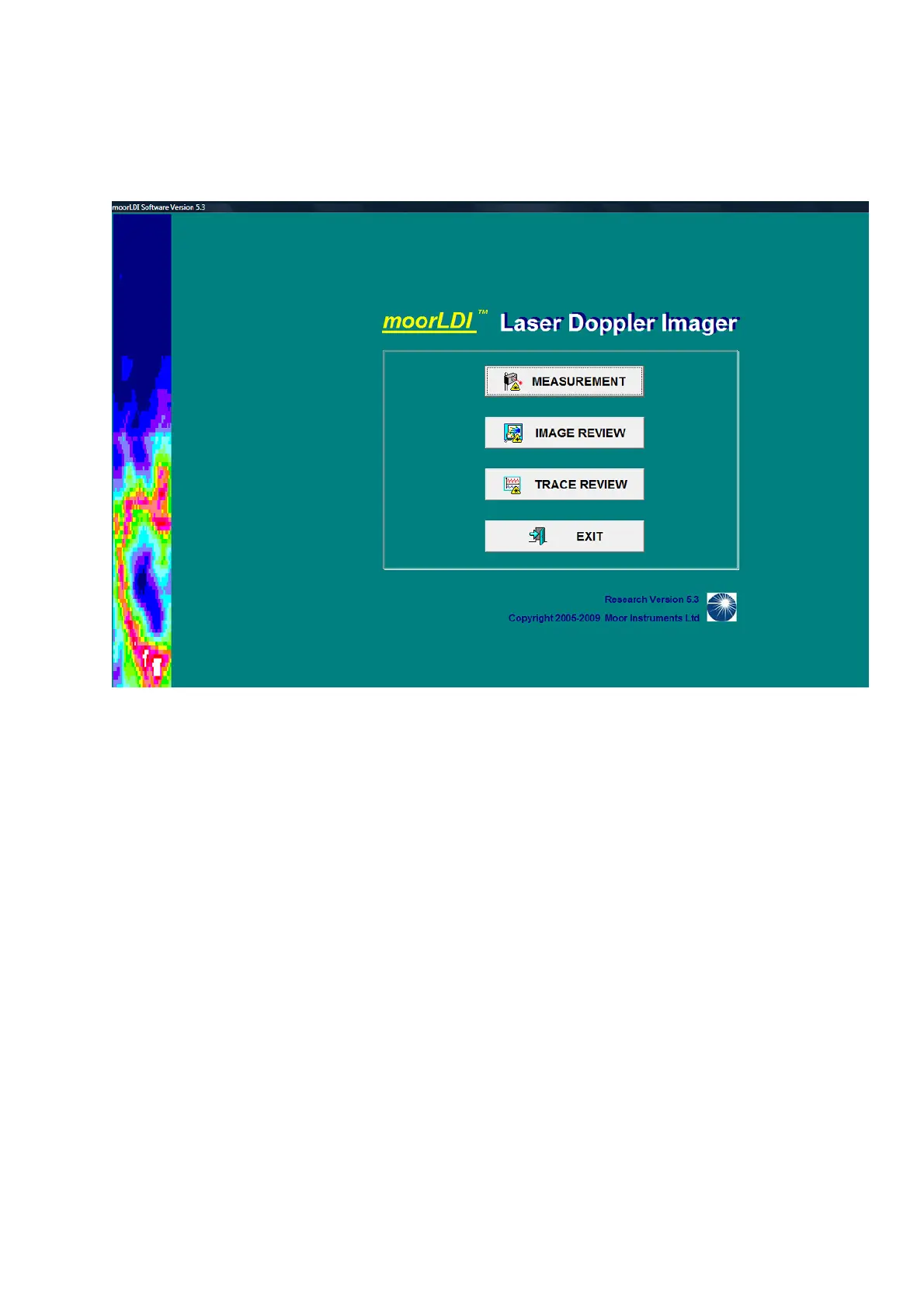

Once loaded, the moorLDI2 V5.3 software presents the following options

1. MEASUREMENT To obtain Laser Doppler Measurements (scan, repeat scan, repeat line

and single point measurement)

2. IMAGE REVIEW Image processing and analysis

3. TRACE REVIEW To review single point measurements.
