MOOR INSTRUMENTS moorLDI2 RESEARCH USER MANUAL

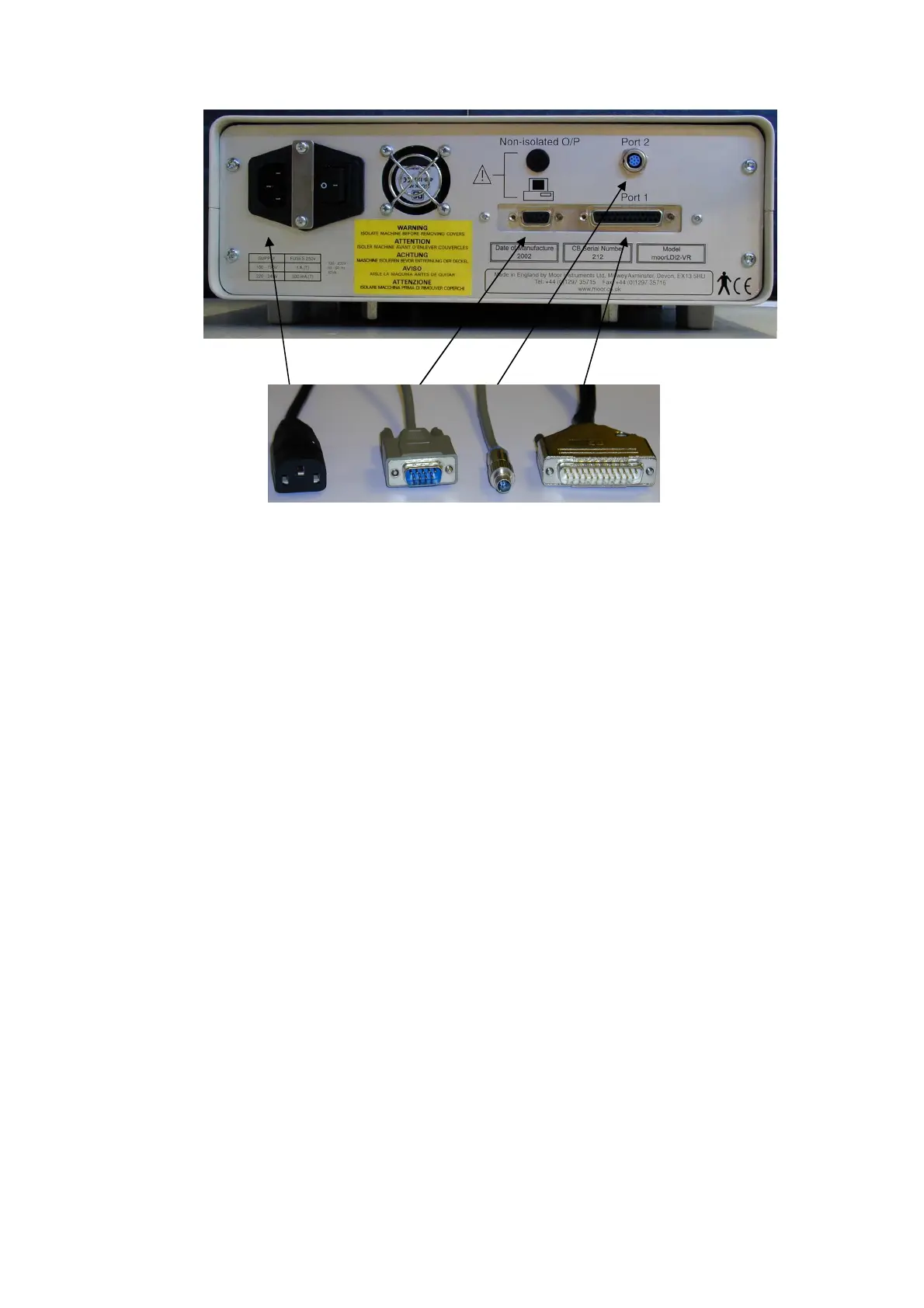

FIGURE 3B – BACK OF THE CONTROL BOX SHOWING CABLES AND THE

CORRESPONDING CONNECTIONS (ANALOGUE CAMERA MODEL)

Power

cable

RS232 lead 25 Way

screened

cable

8 Way

cable
