MOOR INSTRUMENTS moorLDI2 RESEARCH USER MANUAL

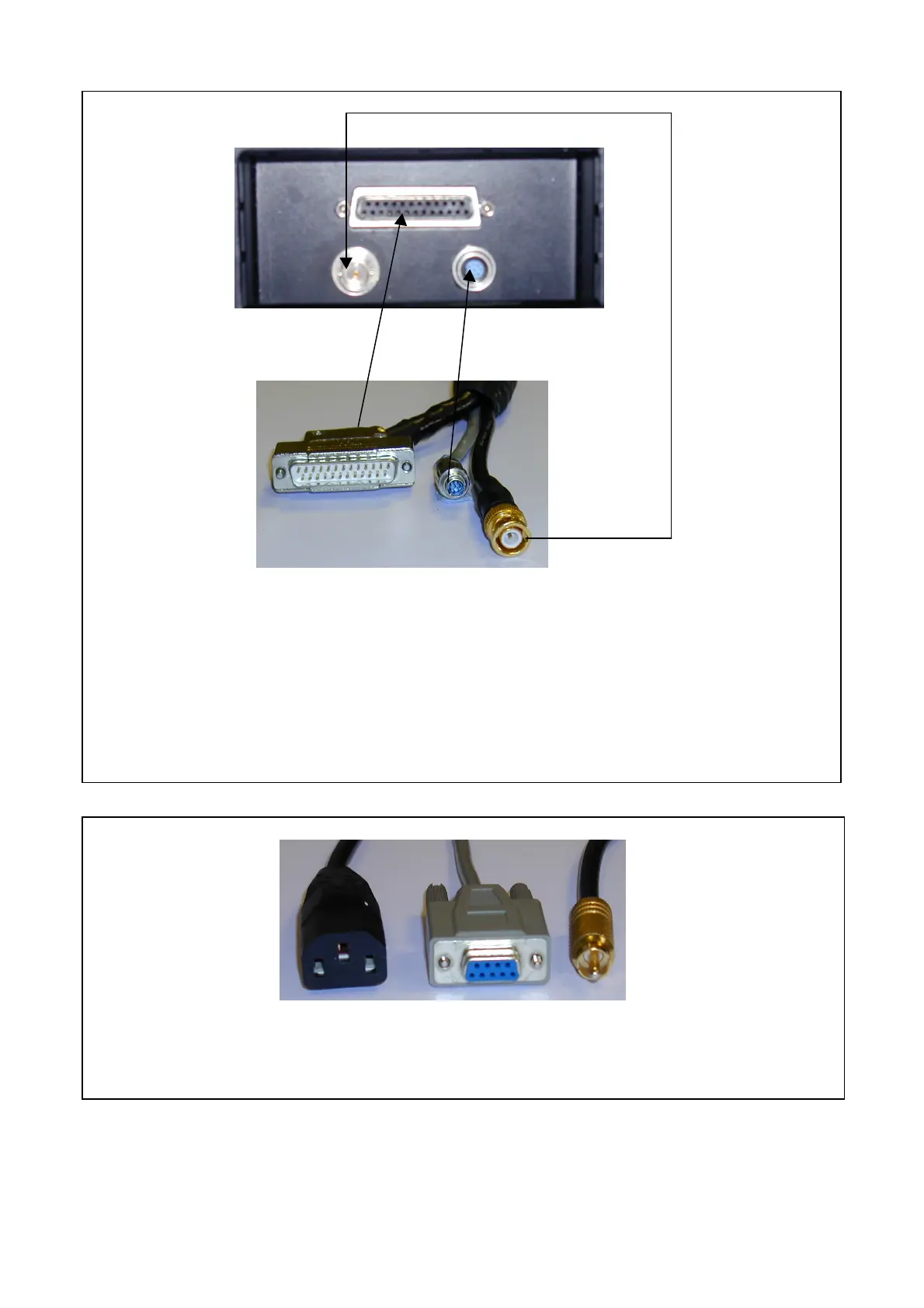

FIGURE 3C – BACK OF THE SCAN HEAD AND CONNECTING CABLES

(ANALOGUE CAMERA MODEL)

FIGURE 3D – PC CONNECTION CABLES (ANALOGUE CAMERA MODEL)

25 way screened

cable

8 way

connector

Video

cable

Power cable RS232 lead Video

cable
