工件零点设定
WORKPIECE ZERO POINT SETTING
102
2 注意 2 NOTE
1. 安装工件，使其侧面（待测面）平行于 X 或 Y 轴。 1. Mount a workpiece with its side (face to be measured) parallel to
the X- or Y-axis.
2. 要得到矩形的中心，则在 X 和 Y 轴方向上进行测量。 2. To obtain the center of a rectangle, execute the measurement in
both X- and Y- axis directions.
1) 按下 [ 中间点 ] 软键。 1) Press the [INTERMID POINT] soft-key.
[ 显示‘ 中间点测量 ’屏幕。] [The ‘ MIDDLE POINT MEASUREMENT ’ screen is
displayed.]
2) 使用数据输入键选择‘ 测量轴 ’。 2) Select ‘ MEAS. AXIS ’ using the data entry keys.
‘ 1: X-axis ’ ‘ 2: Y-axis ’ ‘ 1: X-axis ’ ‘ 2: Y-axis ’
3) 按下轴进给量选择按钮
Z
[×1] 或
X
[×10]。 3) Press the axis feed amount selection button
Z
[×1] or
X
[×10].
1 “ 轴进给量选择按钮 / 开关 ” （ 154 页） 1 “Axis Feed Amount Selection Buttons/Switch” (page 154)

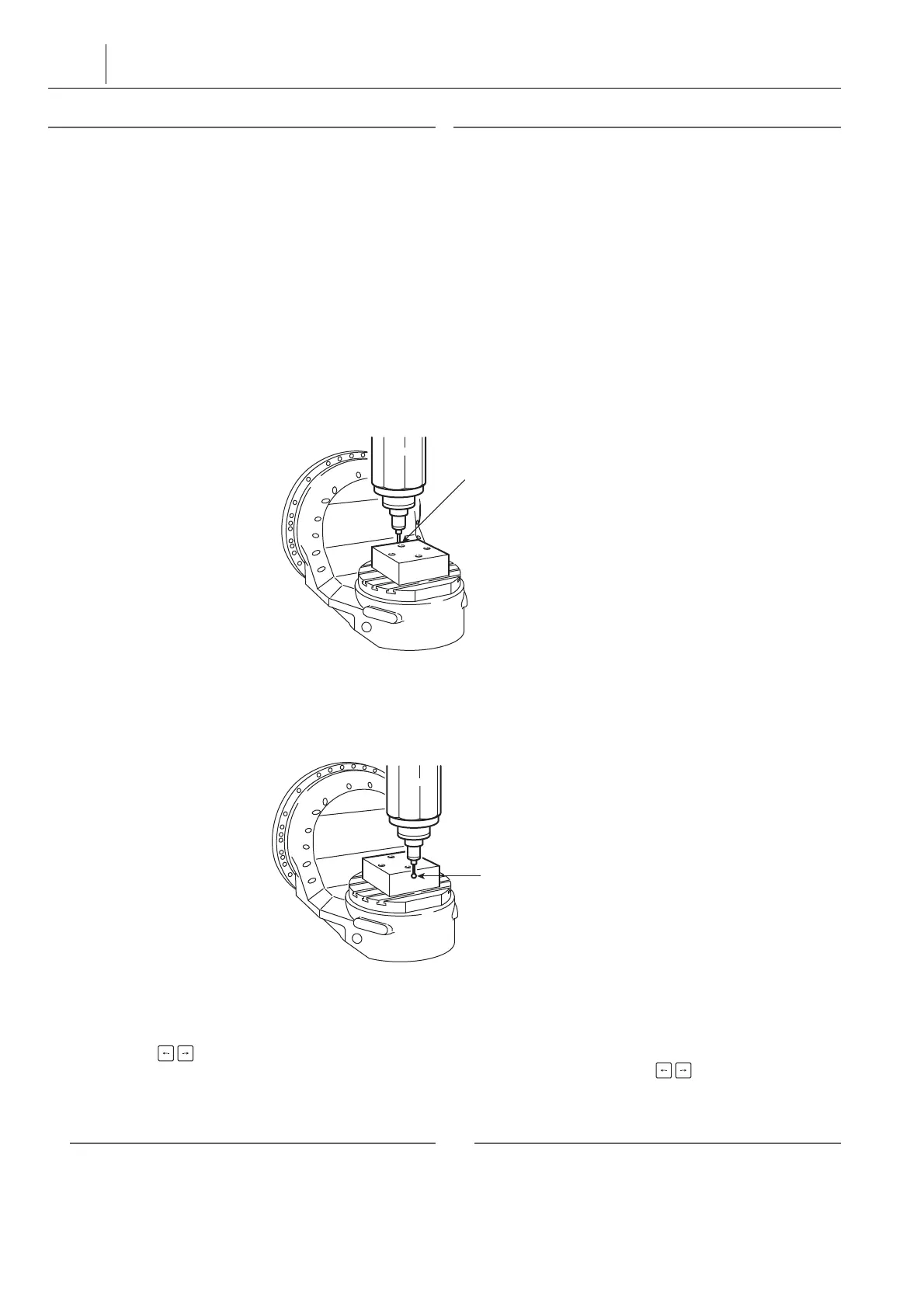

4) 用手动脉冲发生器移动测量工具，使其轻触测量点 1。 4) Move the measuring tool and bring it into light contact with
the measuring point 1 using the manual pulse generator.
5) 按下 [ 测量 ] 软键。 5) Press the [MEASURE] soft-key.
[ 显示‘ 测量点 1’的数据。] [Data is displayed for ‘ MEAS. PNT1 ’.]
6) 用手动脉冲发生器移动测量工具，使其轻触测量点 2。 6) Move the measuring tool and bring it into light contact with
the measuring point 2 using the manual pulse generator.
7) 按下 [ 测量 ] 软键。 7) Press the [MEASURE] soft-key.
[ 显示‘ 测量点 2’的数据。] [Data is displayed for ‘ MEAS. PNT 2 ’.]
[ 显示‘ 中心位置 ’的计算数据。] [The calculated data is displayed for ‘ CNTRNG POS. ’.]
8) 用光标移动键 选择数据所写入的坐标系，然后按下
[ 写 ] 软键。
[ 计算出的数据写入坐标系。]
8) Select the coordinate system which the data is written into
using the cursor control keys and press the [WRITE]
soft-key.
[The calculated data is written into the coordinate system.]
2 注意 2 NOTE
如要再次进行测量，按下 [ 测量重试 ] 软键。 To carry out measurement again, press the [MEAS. RETRY]
soft-key.
