工件零点设定
WORKPIECE ZERO POINT SETTING
8) 检查夹具或工件的基准点（零点）。 8) Check the reference point (zero point) of the fixture or
workpiece.
2 注意 2 NOTE
根据测量类型，以下步骤可能有所变化。 The following procedure varies according to the type of
measurement.
基准面测量 Reference Face Measurement
1) 按下 [ 参考面 ] 软键。 1) Press the [REF. FACE] soft-key.
[ 显示‘ 参考面测量 ’屏幕。] [The ‘ REFERENCE FACE MEASUREMENT ’ screen is
displayed.]
2) 使用数据输入键选择基准面。 2) Select the reference surface using the data entry keys.
< 更改测量工具的半径时 > <When changing the radius of the measuring tool>
a) 将光标移动至‘ 刀具半径 ’。 a) Move the cursor to ‘ TOOL RAD. ’.
b) 输入半径，然后按下
[
(Enter) 键 /
\
( 输入 ) 键。 b) Input the radius, and press the
[
(Enter) key/
\
(INPUT) key.
2 注意 2 NOTE
设定的动态半径值不变。完成测量后，动态半径值返回先前的
值。
The set dynamic radius value is not changed. After the
completion of measurement, the dynamic radius value returns
to the previous one.
< 因切削余量而指定参考面作为从测量点的偏离位置时 > <When specifying the reference surface as the position
deviated from the measuring point due to cutting
allowance>
a) 将光标移动至‘ 切削公差 ’。 a) Move the cursor to ‘ CUT ALLOW. ’.
b) 输入切削余量，然后按下
[
(Enter) 键 /
\
( 输入 ) 键。 b) Input the cutting allowance, and press the
[
(Enter)
key/
\
(INPUT) key.
3) 按下轴进给量选择按钮
Z
[×1] 或
X
[×10]。 3) Press the axis feed amount selection button
Z
[×1] or
X
[×10].
1 “ 轴进给量选择按钮 / 开关 ” （ 154 页） 1 “Axis Feed Amount Selection Buttons/Switch” (page 154)

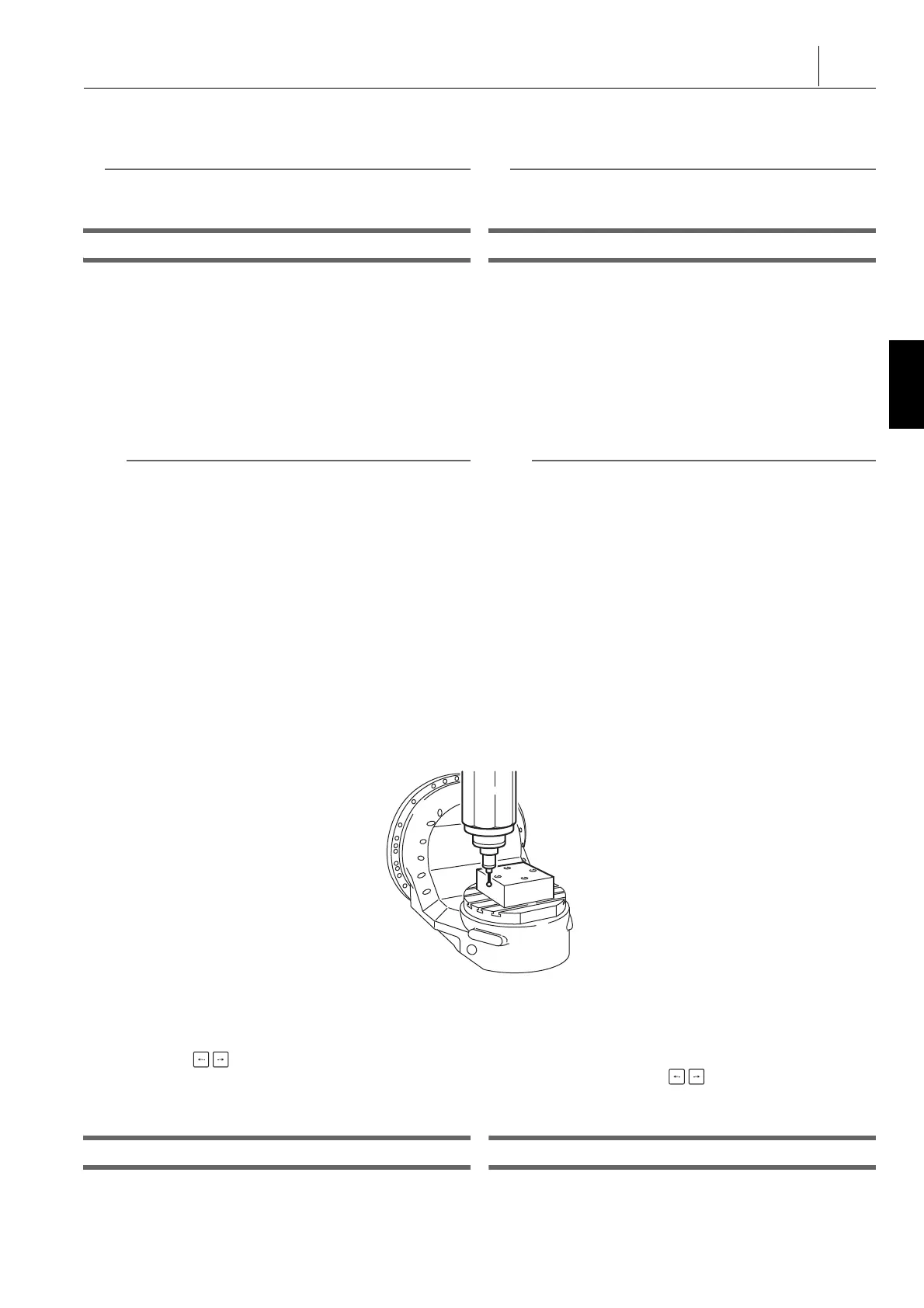

4) 用手动脉冲发生器在指定方向上移动测量工具，并使刀尖轻
触工件。
4) Move the measuring tool in the specified direction and bring
the tool tip into light contact with the workpiece using the
manual pulse generator.
5) 按下 [ 测量 ] 软键。 5) Press the [MEASURE] soft-key.
[ 显示‘ 测量点 ’和‘ 中心位置 ’的数据。] [Data is displayed for ‘ MEAS. POINT ’ and ‘ CNTRNG
POS. ’.]
6) 用光标移动键 选择数据所写入的坐标系，然后按下
[ 写 ] 软键。
[ 计算出的数据写入坐标系。]
6) Select the coordinate system which the data is written into
using cursor control keys and press the [WRITE]
soft-key.
[The calculated data is written into the coordinate system.]
中点测量 Middle Point Measurement
该测量方法适用于工件零点位于沿 X 或 Y 轴的两点中间的情况。 This measurement is used when the workpiece zero point lies
midway between two points along the X- or Y-axis.
