Cash Acceptor
Clearing Jams in the Cash Acceptor
NCR Personas M Series 5887 Operator Manual 11-15

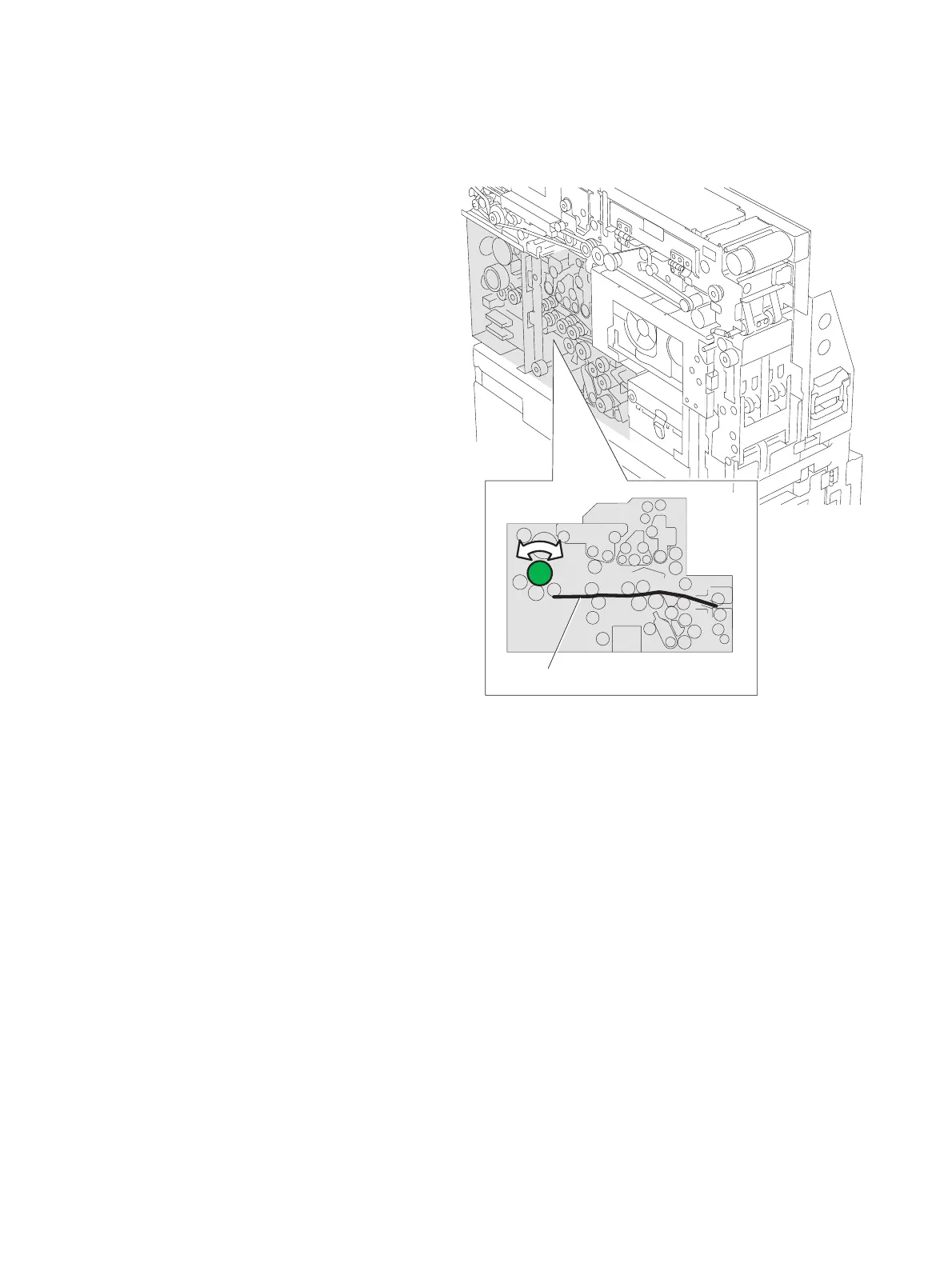

2 Turn the green knob to move the jammed cash to the area of the
straight path as shown in the following illustration. When the
cash is visible, carefully remove it.
Sensor Cleaning Reminder This is a good time to clean the main transport unit sensors. For
details, refer to the section ‘Cleaning Sensors’ later in this chapter.
3 If the jammed cash cannot be moved to the straight path, try to
move it further towards the connection between the main
transport unit and the garage unit or cassettes using the same
green knob.
Note: If the cash cannot be moved or the belts become
misaligned, call your service representative.
4 Close the main transport door and push the cash acceptor back
in to the terminal.
5 Proceed to next section to clear the jam in the garage unit.
Straight path
Main Transport Area
