Cheque Acceptor
Removing and Replacing the Ribbon Cassette
NCR Personas M Series 5887 Operator Manual 12-17

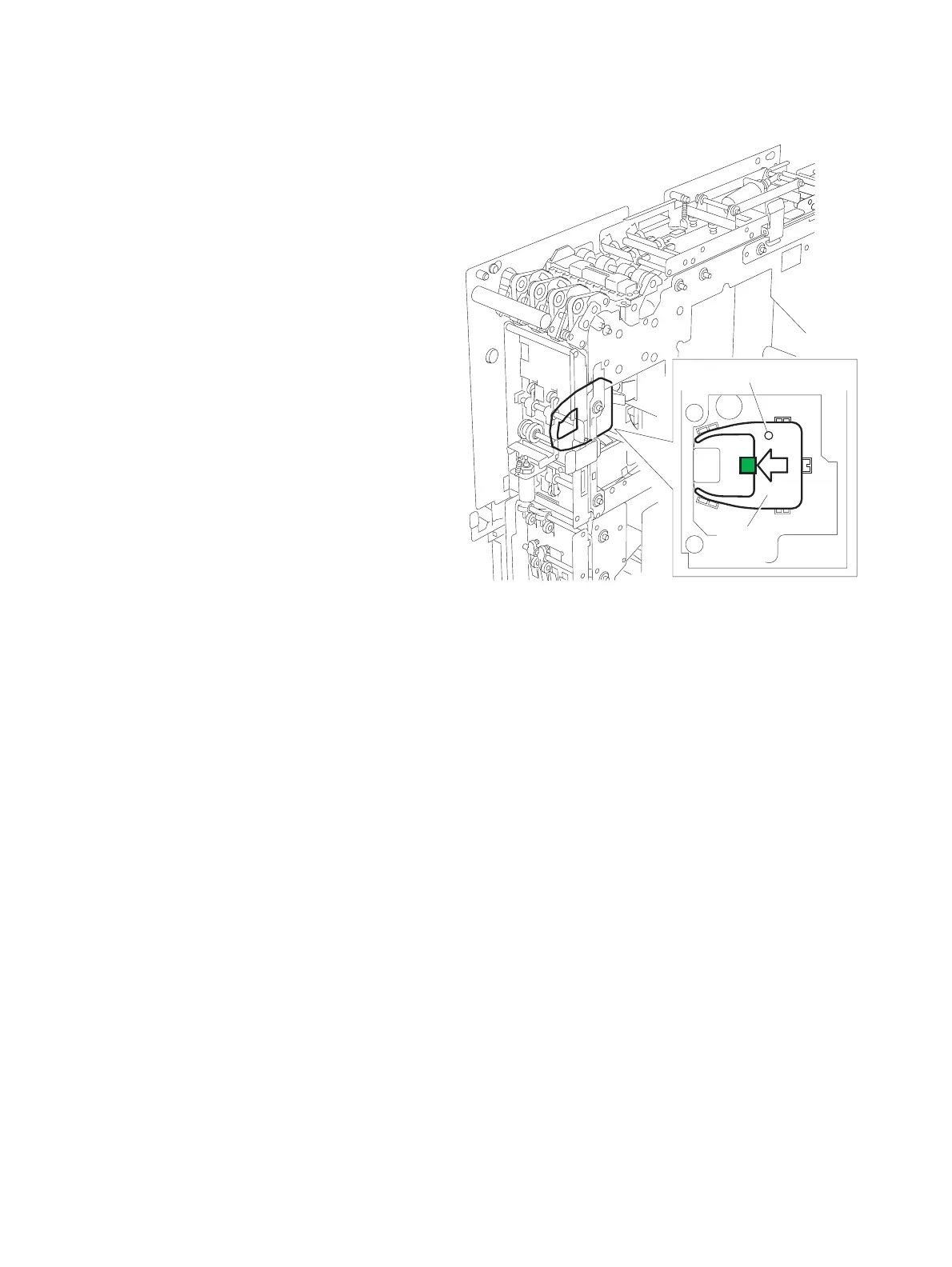

4 Push the green plastic latch left to release the ribbon cassette.
5 Remove and discard the used ribbon cassette.
6 Remove the packaging from the new ribbon cassette including a
red tab or clip if there is one.
7 Insert the new ribbon cassette by pushing in to the endorser unit
until the green plastic latch clicks and holds the cassette in
position. Ensure ribbon is around the print head.
8 Check that the new cassette has been replaced correctly by
turning the ribbon feed knob on the left side of the cassette. This
action will also tighten the ribbon.
9 To close, firmly push in the module until the latch clicks and
locks into position.
10 Follow your in-house procedures to indicate that the ribbon
cassette has been replaced.
11 If your terminal does not have the auto-supervisor option, press
the switch on the operator panel to the normal position.
12 Close and lock your terminal.
Ribbon
Cassette
Ribbon Feed Knob
