REINSTALL THE SERVICE STATION, ALIGN & SECURE THE GUIDE

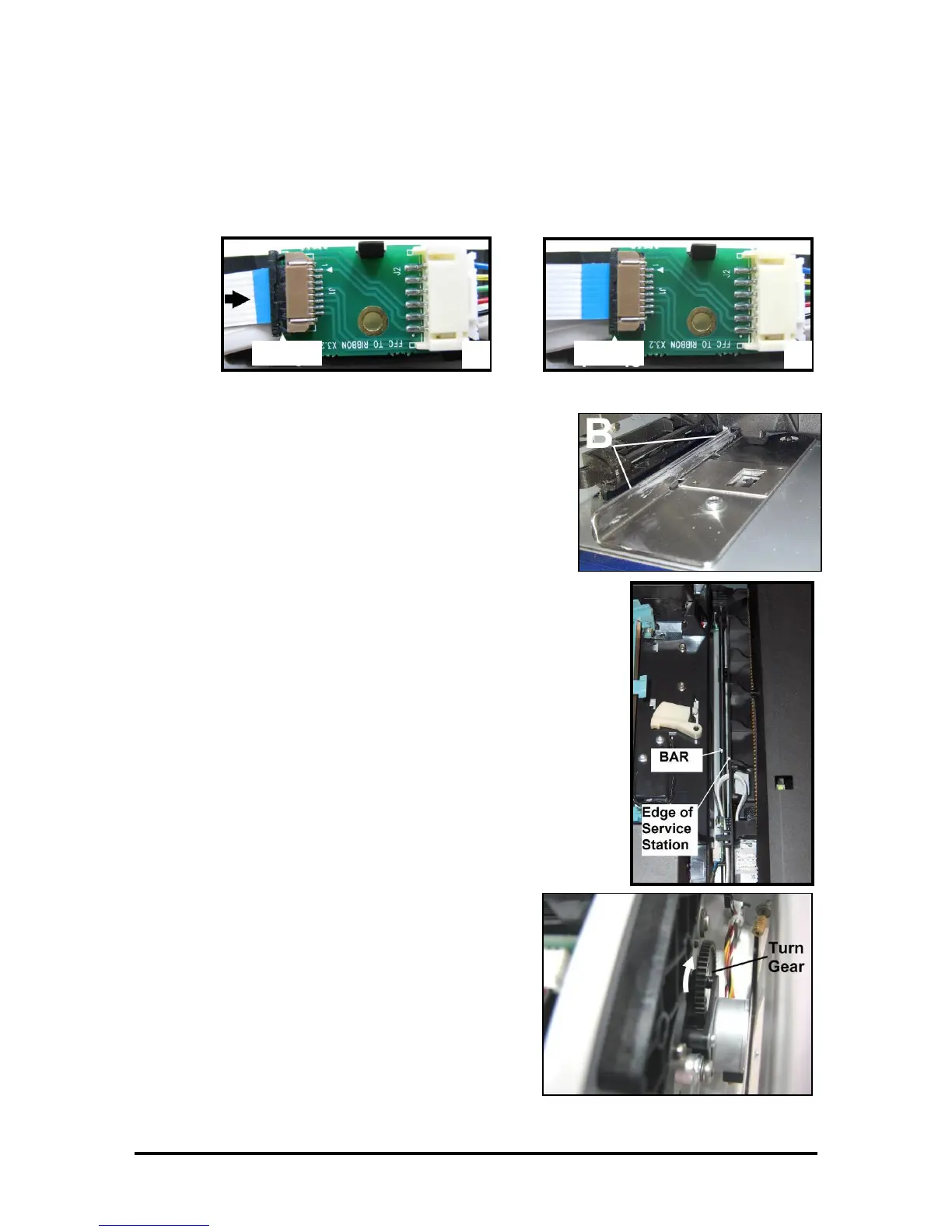

1. Reconnect the Ribbon Cable to the Service Station
[1] Plug the Ribbon Connector (blue side facing out) into the space under the cable securing
Latch.
[2] Make sure the cable is square with the connector, then close the Latch.
2. Slide the Service Station into the entrance of the
Service Station Slot.
Make sure the ridge [B] of the Guide fits into the groove,
in the bottom of the Service Station Sled.
IMPORTANT: The Service Station should slide
smoothly as you push it into the slot. If it binds or catches
on the Guide, check to be sure the Guide securing screws
are loose enough to allow the Guide to self-align. Then try
reinstalling the Service Station.
Slide the Service Station into the Service Station Slot until
it touches the gears on the drive shaft (BAR).
Look down through the Top of the printer to make sure
the Service Station is aligned with the Service Station
Drive Shaft (BAR).
IMPORTANT! Service Station must be perfectly aligned
with BAR to prevent misalignment and operating
problems.
3. Engage the Service Station Sled with the Drive
Shaft. GENTLY push the Service Station in while
turning the large Gear clockwise. Gear is located on
non-operator side of print-engine.
The small gears on the Service Station drive shaft
(BAR) should engage the gear track on the bottom of
the Service Station Sled and start pulling the Service
Station into the slot.
