NETGEAR D6220 User Manual

a. Select the Yes radio button.
b. Click the Next button.

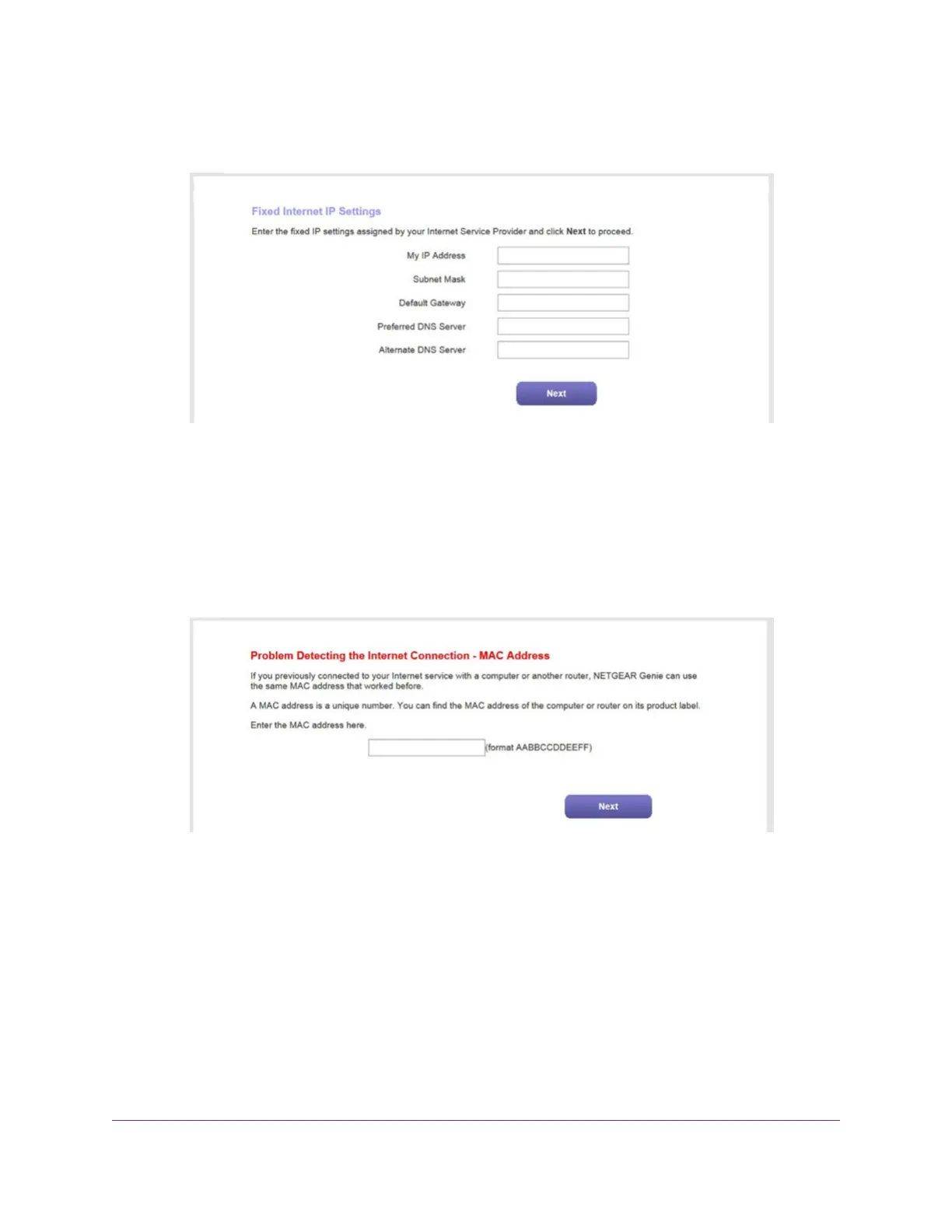

c. Enter the address information that your ISP gave you for your fixed IP address configuration.
d. Click the Next button.
• If your ISP did not assign you a fixed IP address or you do not know if your ISP assigned you a fixed
IP address, do the following:
a. Select either the No or the I don’t know radio button.
b. Click the Next button.
c. Enter the MAC address of the computer or router with which you previously were able to connect
to the Internet.
You might find the MAC address on the product label of your device. Enter the MAC address in
the AABBCCDDEEFF format, not in the AA:BB:CC:DD:EE:FF format.
d. Click the Next button.
13. If the Congratulations! page still does not display and the modem router still does not connect to the
Internet, do the following:
a. Review all your settings and make sure that you selected the correct options and entered everything
correctly.
b. Run the Setup Wizard one more time.
Manage the Internet Settings Manually
40
AC1200 WiFi VDSL/ADSL Modem Router Model D6220

NETGEAR D6220 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	900 Mbit/s
Product type	Tabletop router
Product color	Black
Security algorithms	WPA, WPA2, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power source type	AC
Routing protocols	IP
Antennas quantity	2
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	182 mm
Width	240 mm
Height	41 mm
Weight	341 g
