40 System Overview

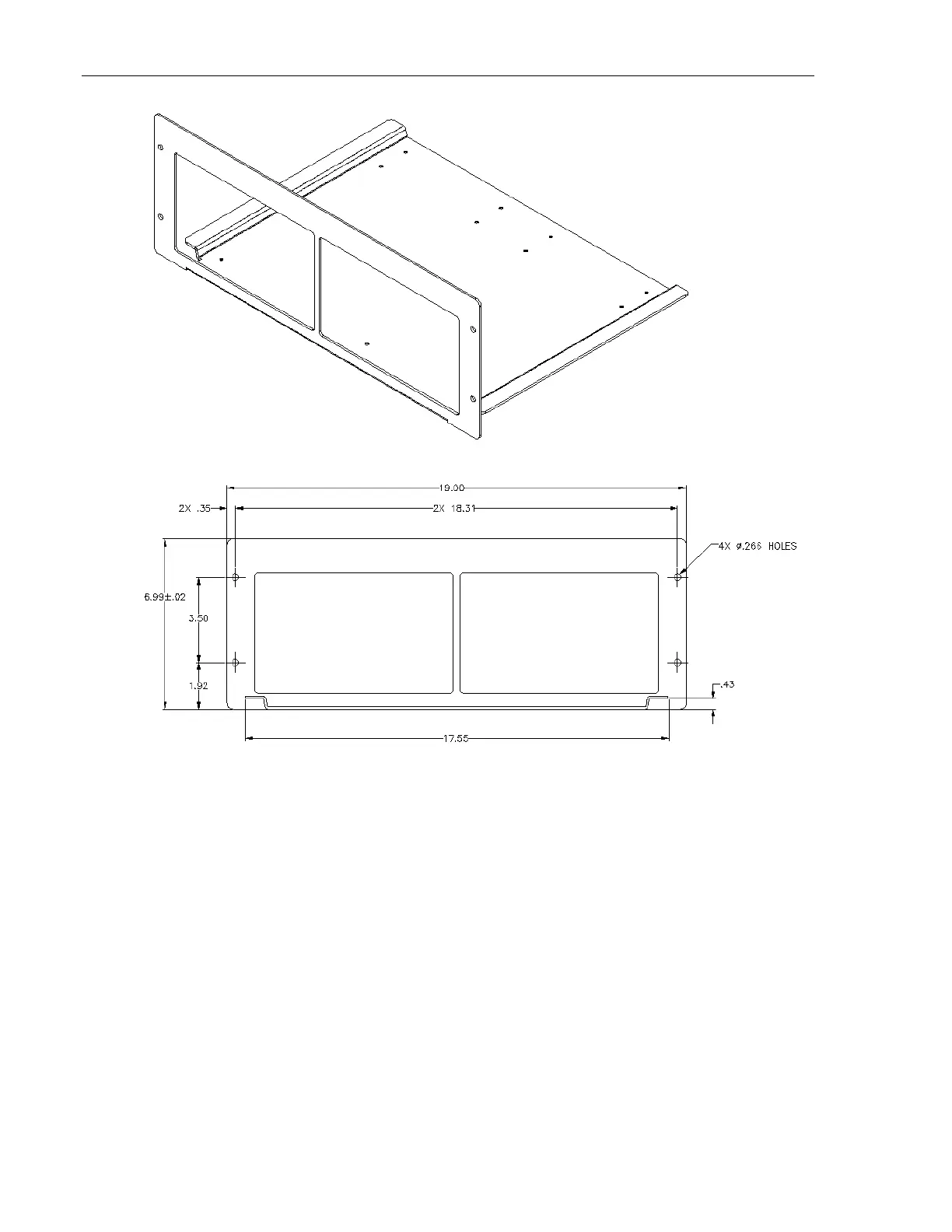

Figure 19 PM2 –RACK mounting kit
To mount the units in these racks the user needs to remove the four feet at the
bottom of the instrument. With the hardware supplied with the rack mount
kits, the bottom of the unit(s) is secured to the bracket using all four original
feet mounting positions (Figure 20). After tightening the screws the unit(s)
may be slid into a 19" rack and secured to the side rails.
