System Operation 59
4.10
4.11 Display Modes

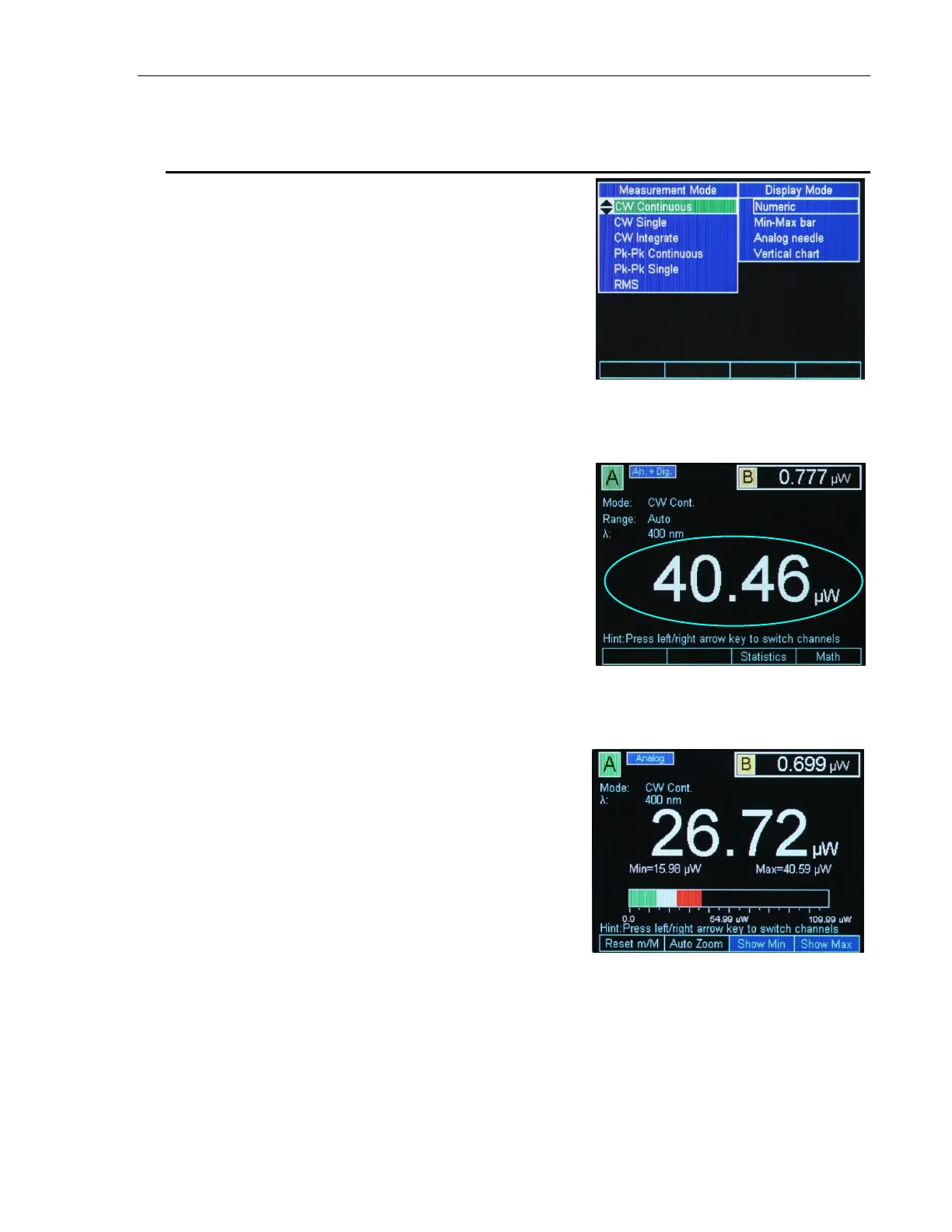

The selection of various display modes
can be done from the default screen,
by pressing the Mode soft key. When
the Mode selection screen is displayed
(Figure 53), the display mode can be
selected from the second column.
Figure 53 Mode selection screen
4.11.1 Numeric Display
The numeric display is the default
display of the 1936/2936 Series. The
numeric display shows the current
measured value of the primary
channel.
Figure 54 The Numeric display
4.11.2 Analog Bar
The Analog Bar display mode brings
a bar graph below the numeric
display. The bar graph is white and
follows the value showed by the
numeric display. The minimum and
maximum labels displayed just below
the bar graph represent the input
range the unit is currently set on. For
example, if the unit is set on
109.99 μW range, then the bar graph
shows the same range of 0 to
109.99 μW. In the middle of the bar
graph the displayed number is the
middle of the range.
Figure 55 Analog Bar
