4.1.6.1 Range
Pressing this key reconfigures the
Soft keys at the bottom of the
screen as in Figure 30.
From this screen the user has two
options.
 One is to toggle Auto/Manual
Range mode. This is accomplished
by pressing the left-most Soft key.
If the meter current configuration
is Manual mode the left-most Soft
key is labeled Auto to allow the
user to change the Range selection
in Auto Range Mode. This can be
seen in Figure 30, where the range
is 1.000 W indicating a manual
mode.
If the instrument is in Auto Range
Mode, the left most key is labeled
Manual (Figure 31). The user may
return to the main screen by
pressing the ESC key.

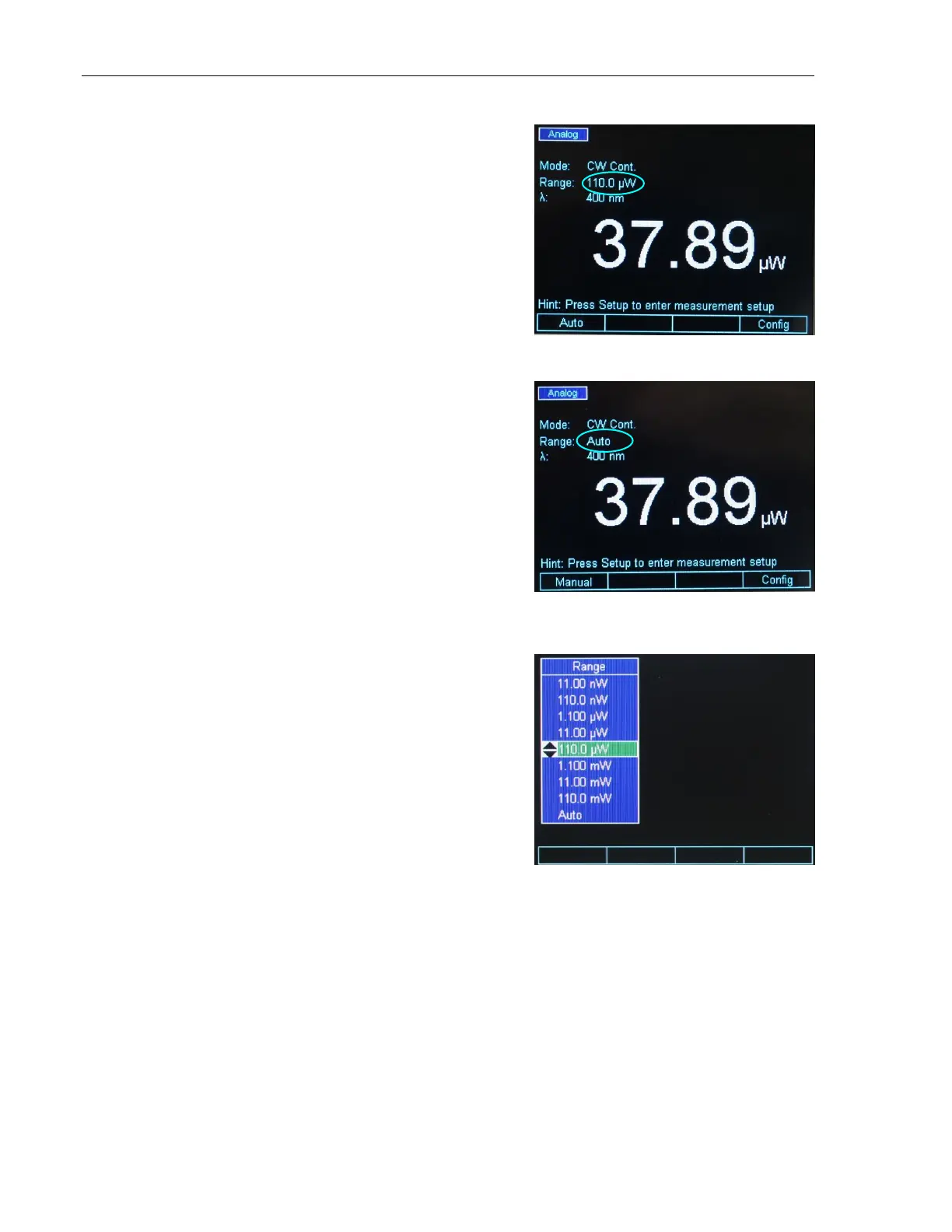

Figure 30 Manual Range mode
Figure 31 Auto Range mode
 The other option is to press the
right-most Soft key, which is
labeled Config. This action
displays the Range Configuration
screen (Figure 32). Here the user
can select a certain range or even
Auto Range with the
Navigation/Enter keys. Once a
range is selected the instrument
returns to the main screen. While
in Range Configuration screen,
the user may cancel the selection
by hitting the ESC key.
Figure 32 This screen is displayed after
pressing the Config soft key
