Nice MG3000 User Manual

6

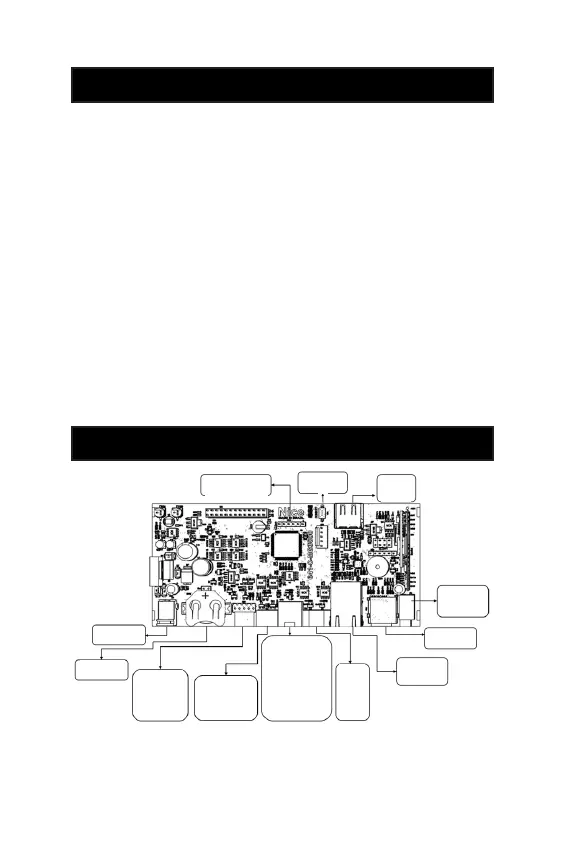

03. MODULE IP CONNECTIONS IDENTIFICATION
03.1 INTERIOR OF THE PCI BOARD EQUIPMENT
1. P4 connector (2.1mm - positive internal) for external power supply.
2. CR2032 3V battery to keep the internal clock.
3. Molex 5-way connector, RS232 for communication with PC.
4. Digital input for generating an emergency event.
5. Polarized connector with Wiegand input and 2 x RS485 - Water shor-
tage alarm and Biometrics.
6. CAN 1 and CAN 2 connection for communication with receivers (in-
ternal 100R resistor).
7. RJ-45 – Ethernet connector (TCP/IP and UDP).
8. Input slot for Internal Micro SD Card, for automatic backup and data
restoration.
9. P2 connector for amplied speakers (optional accessory).
10. USB HOST port (for computer keyboard, USB ash drive for backup/
restore, rmware update).
11. Button for forced rmware update.
12. Connection for basic biometrics module, LN3000
Figure 3.1.a
[gure 3.1.a, gure 3.2.a and gure 3.2.b]
- ENGLISH -
209
12
BIOMETRIC
MODULE LN3000
11
FORCED
BOOTLOADER
10
USB PORT
FLASH DRIVE/
KEYBOARD
9
VOICE OUTPUT
P2
SPEAKER
8
AUXILIARY
SD CARD
7
NETWORK TCP/IP
10/100 BASE-T
6
CAN 1
1. CAN H
2. CAN L
CAN 2
3. CAN H
4. CAN L
5
WIEGAND READERS
INPUT
RS485 1 - TERMINAL BLOCK
RS485 2 - BIOMETRICS
1. 12VDC OUTPUT
2. GND
3. WIEGAND D0
4. WIEGAND D1
5. RS485-1 A+
6. RS485-1 B-
7. RS485-2 A+
8. RS485-2 B-
4
DIGITAL INPUT
1. GND
2. EMERGENCY
3. NOT IMPLEMENTED
3
SERIAL RS-232
1. 5 VDC OUTPUT
2. 3,3 VDC OUTPUT
3. GND
4. TX
5. RX
2
3V CR2032
BATTERY
1
POWER SUPPLY
P4 - 12 VDC/1A
