85
11.12.1 HOW TO CONFIGURE A ROUTE
Access the “ROUTES” option, select one of the 64 available and enter a name
up to 8 characters to facilitate later identication. Tap “RECORD” and tap “PRO-
CEED”.
The next screen allows you to select which of the 4 outputs of the 8 Receivers will
be granted access (check box checked). Note that the conguration regardless
of the type (mode) of the Receiver installed on site.

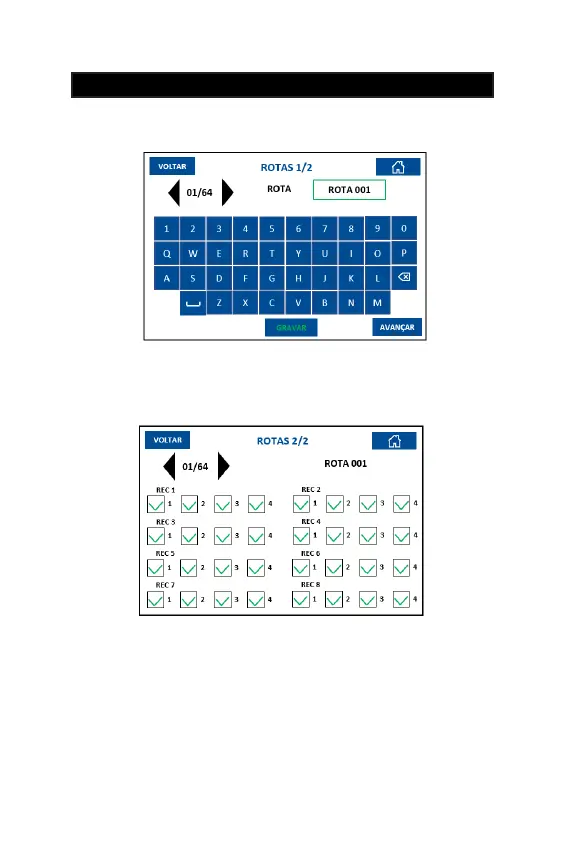

Figure 11.12.a
Figure 11.12.b
- ENGLISH -
288
