11.2.3 LABELS - RECEIVERS
Receiver labels can be renamed to identify the access and where a device was
triggered. It is possible to edit the labels for RF receivers (remote control), Active
Tag, Card (CT, CTW, CTWB), Passive Tag, and their respective outputs/relays
(SA1 to SA4).
EXAMPLE:
- An RTX3004 Receiver in the condominium which we will call GARAGE. Outputs
SA1 to SA4 (relay outputs) correspond respectively to the buttons on the remote
control. At the access to the garage there are two doors, one entrance and one
exit, where button 1 of the remote control will be used to activate the ENTRANCE
door, button 2 to activate the EXIT door and button 3 for PANIC, considering that
the PANIC button should open the ENTRANCE door. Below are the settings
according to the described scenario:

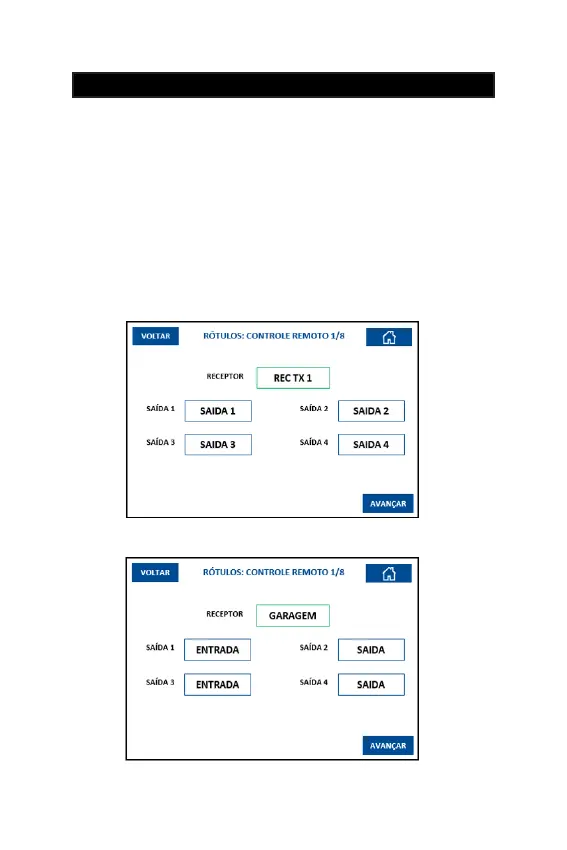

Figure 11.2.3.a
Figure 11.2.3.b
