Nice MG3000 - 04.5 Wiegand Scanner (RFID); 04.6 Biometric Scanner (LN5-P;LN30-ID)

9
The input for Wiegand Linear-HCS scanners is intended for registering devices,
such as passwords, proximity cards and passive tags. It can be used with Nice
RFID and biometric scanners or Password Keypad of di󰀨erent models as long
as they communicate via Wiegand 26- or 34-bits protocol, however the storage
of the serial for use in the system will be done in 26 bits format.

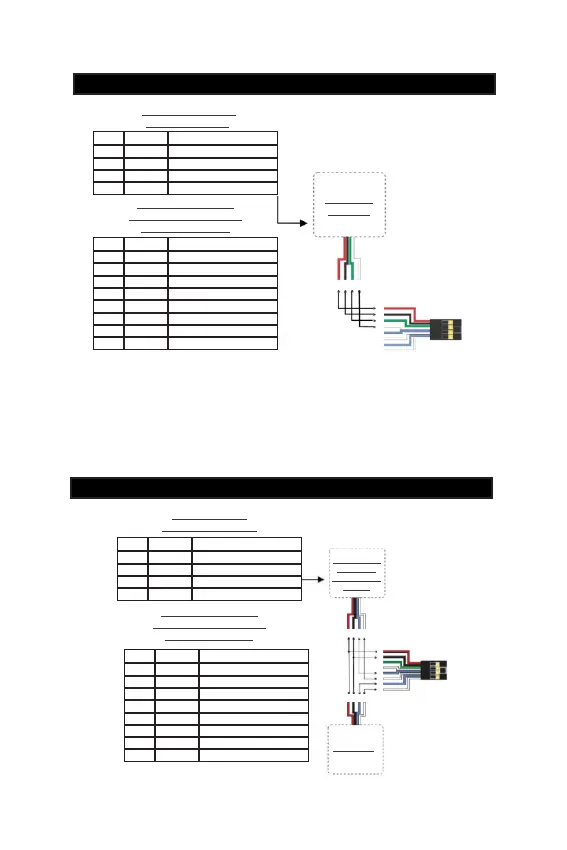

The installation must be done according to the illustration in gure 4.5.a.
NOTE: For the integration of systems from other manufacturers, contact Nice
Brazil.
04.5 WIEGAND SCANNER (RFID)
04.6 BIOMETRIC SCANNER (LN5-P/LN30-ID)
- ENGLISH -
212
WIEGAND
READER
Figure 4.5.a
41 32
1
2
3
4
5
6
7
8
WIEGAND READER
CABLE HARNESS
8-WAY CONNECTOR
FOR CONNECTING THE
GUARITA MODULE
PIN COLOR FUNCTION
1 Red 12 VDC input
2 Black GND input
3 Green Data 0
4 White Data 1
PIN COLOR FUNCTION
1 Red 12 VDC output
2 Black GND output
3 Green Data 0
4 White Data 1
5 Blue RS485-A (1)
6 White RS485-B (1)
7 Blue RS485-A (2)
8 White RS485-B (2)
RS485 READER
CONNECTION WHIP
8-WAY CONNECTOR
FOR CONNECTING THE
GUARITA MODULE
Figure 4.6.a
BIOMETRY
1
2
3
4
5
6
7
8
1 234
1 234
ALARM LACK
OF WATER
AND BUTTON
9 KEYS
PIN COLOR FUNCTION
1 Red 12 VDC input
2 Black GND input
3 Green RS485-A
4 White RS485-B
PIN COLOR FUNCTION
1 Red 12 VDC output
2 Black GND output
3 Green Data 0
4 White Data 1
5 Blue RS485-A (1)
6 White RS485-B (1)
7 Blue RS485-A (2)
8 White RS485-B (2)
