10
The input for Linear-HCS RS485 Scanners is intended for the registration of
devices, such as proximity cards and biometrics. The installation must be done
according to gure 4.6.a.
NOTE:
-RS485 1: Water Shortage Alarm or Terminal Block Interface (on request)
-RS485 2: Biometrics
For the integration of systems from other manufacturers, consult Linear-HCS
The table support is ideal for installation on counters or tables, which can be
screwed on, thus keeping the MG3000 just tted in it. It is recommended to use
this accessory in cases where there is poor visibility of the MG3000’s display
due to its viewing angle. If there is no need for the accessory, the MG3000 can
be xed directly to the chosen location. The table stand is an accessory sold
separately.

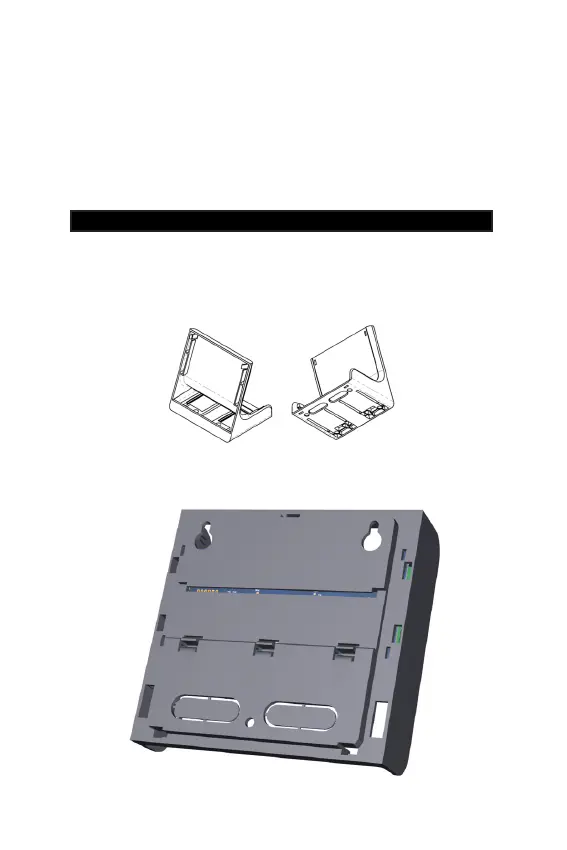

Both the MG3000 and the Table Support [Figure 4.7.a] have outputs for the
wires and cables ensuring a good installation nishing.
04.7 TABLE SUPPORT
Figure 4.7.a
- ENGLISH -
213
