VBA23001-R.3762.A

- A18 ･ D90 -

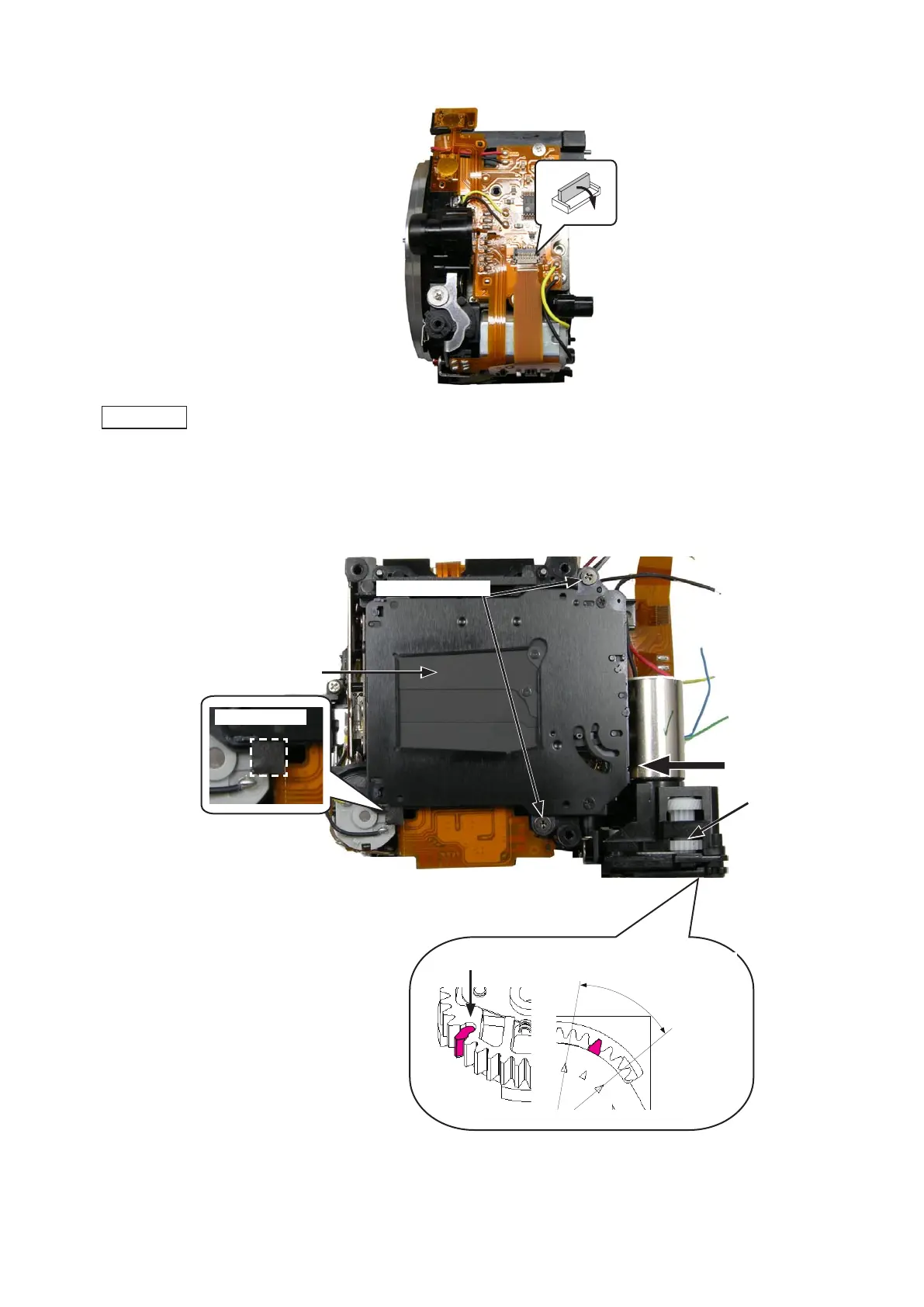

Shutter unit (#B31)

・Connect the FPC of the AF CCD unit (#B2163) to the connector.Connect the FPC of the AF CCD unit (#B2163) to the connector.

・Turn the gear of the aperture control unit in the direction of the arrow, and raise the mirror.aperture control unit in the direction of the arrow, and raise the mirror.and raise the mirror.

・Attach the shutter unit (#B31) with two screws (#638).Attach the shutter unit (#B31) with two screws (#638).

・Attach the sponge (#817).Attach the sponge (#817).

・Turn the gear in the direction of the arrow so that the index can be within the range of the initial position.gear in the direction of the arrow so that the index can be within the range of the initial position.so that the index can be within the range of the initial position.

Shutter unit

Gear

Screw (#638)

Sponge (#817)

初期位置範囲

Index

Range of initial

position

INC
