Nikon VBA23001 - Prism Box; Eyepiece Barrel Unit

VBA23001-R.3762.A
- A24 ･ D90 -
[#503]x2
[#504]x2
[#502]x2
[#521]
[#B261RP]

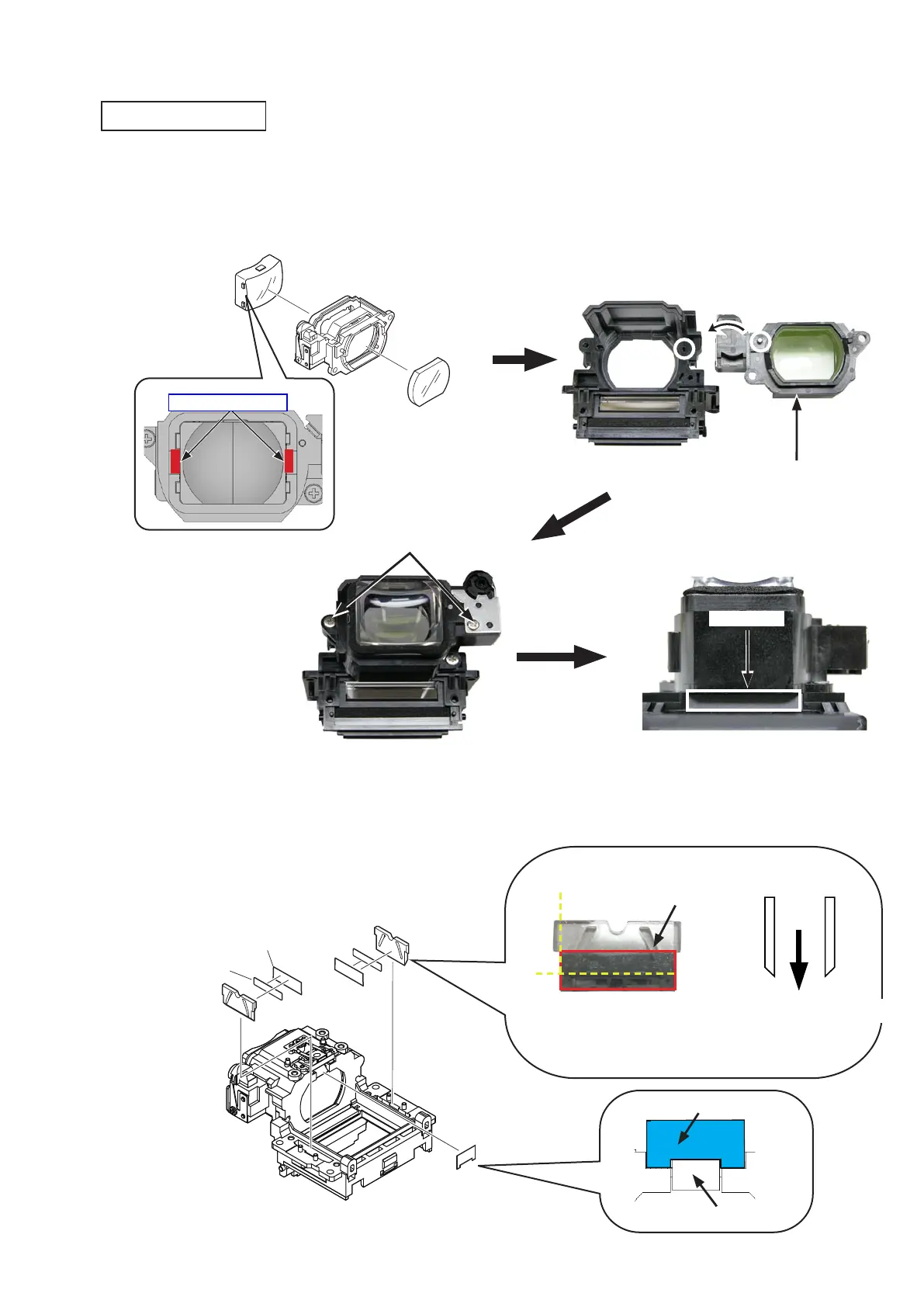

・Mount the eyepiece lens 1 (#5) and eyepiece lens 3 (#7).
・
Mount the eyepiece barrel unit (#B271) on the penta prism box unit (#B261RP) by tting with the boss.
・
Tighten the two screws (#642).
・
Attach the tape (#783).
Screw (#642)
×2
Eyepiece barrel unit (#B271)
Eyepiece barrel unitEyepiece barrel unit
2. Prism box
・Attach the double-stick tape (#504) to light guide (#503).Attach the double-stick tape (#504) to light guide (#503).
・Peel of the backing paper and attach the polarizing plate (#502).polarizing plate (#502).
・Fit the attached light guides (#503) into the groove.light guides (#503) into the groove.
・Attach the tape (#521).Attach the tape (#521).
５０３組み込み方向
Reference position of
double-stick tape.
(#502)
#503 Direction for mounting
Eyepiece lens 1 (#5)
Eyepiece lens 3 (#7)
Tape (#783)
Adhesive: Super X
(#521)
Photometric prism
INC
