VBA23001-R.3762 .A
- D23 ･ D90 -

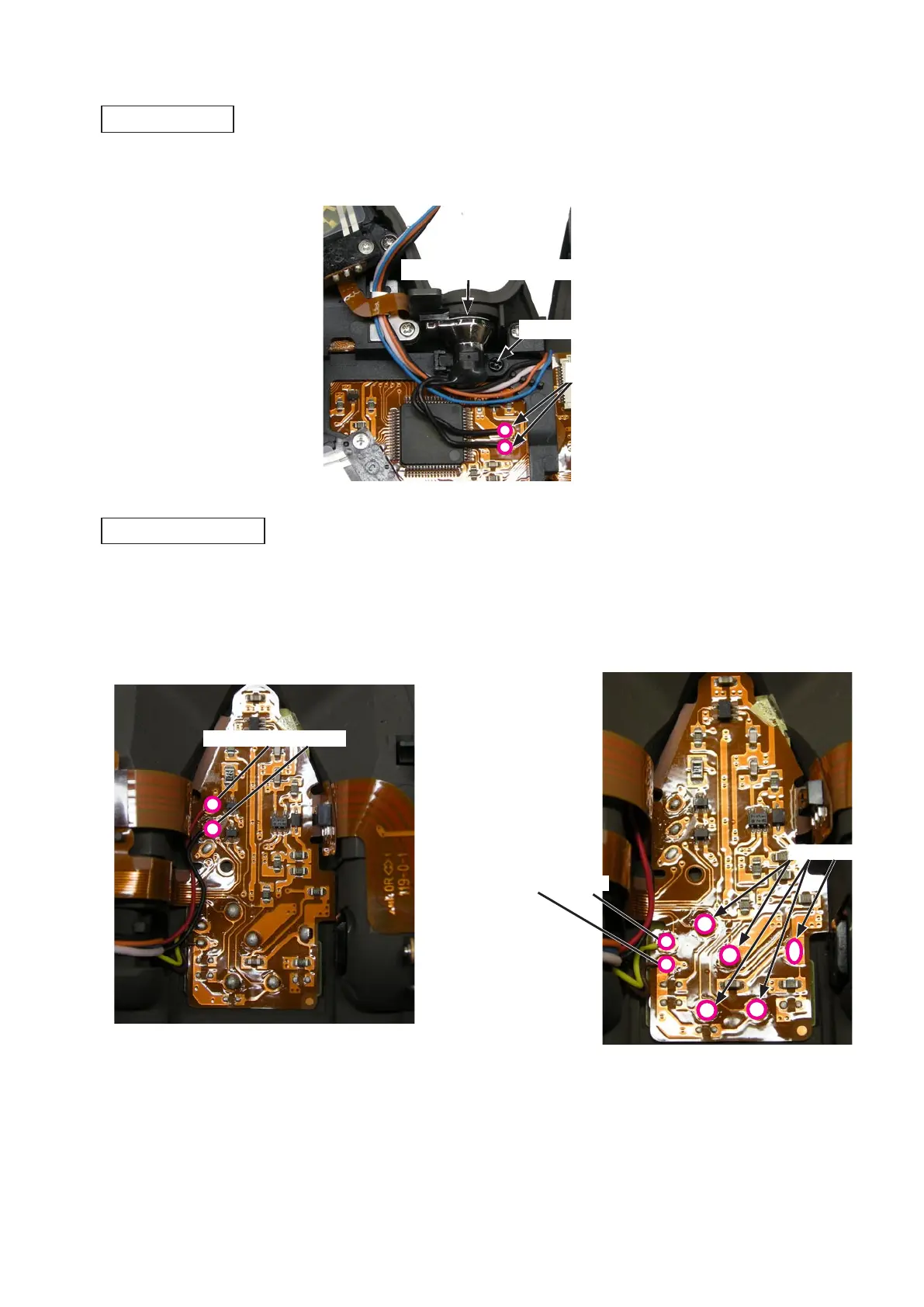

・Unsolder the wires (Red/Black).Unsolder the wires (Red/Black).
・Unsolder the wires (Brown/Yellow).Unsolder the wires (Brown/Yellow).
・Remove the five solders of the shoe mold unit (#B317).Remove the five solders of the shoe mold unit (#B317).
・Unsolder the two wires (Black) of the AF-assist lamp unit (#B325).Unsolder the two wires (Black) of the AF-assist lamp unit (#B325).
・Take out the screw (#611).Take out the screw (#611).
Wire
×
2 (Red/Black)
Wire
×
2 (Brown/Yellow)
Solder
×
5
AF-assist lamp unit (#B325)
Screw (#611)
Wire
×2
(Black)
AF-assist lamp unit
Top cover FPC unit
3. Top cover
To Next Page
