Nikon VBA23001 - Main PCB

VBA23001-R.3762.A
- A48 ･ D90 -

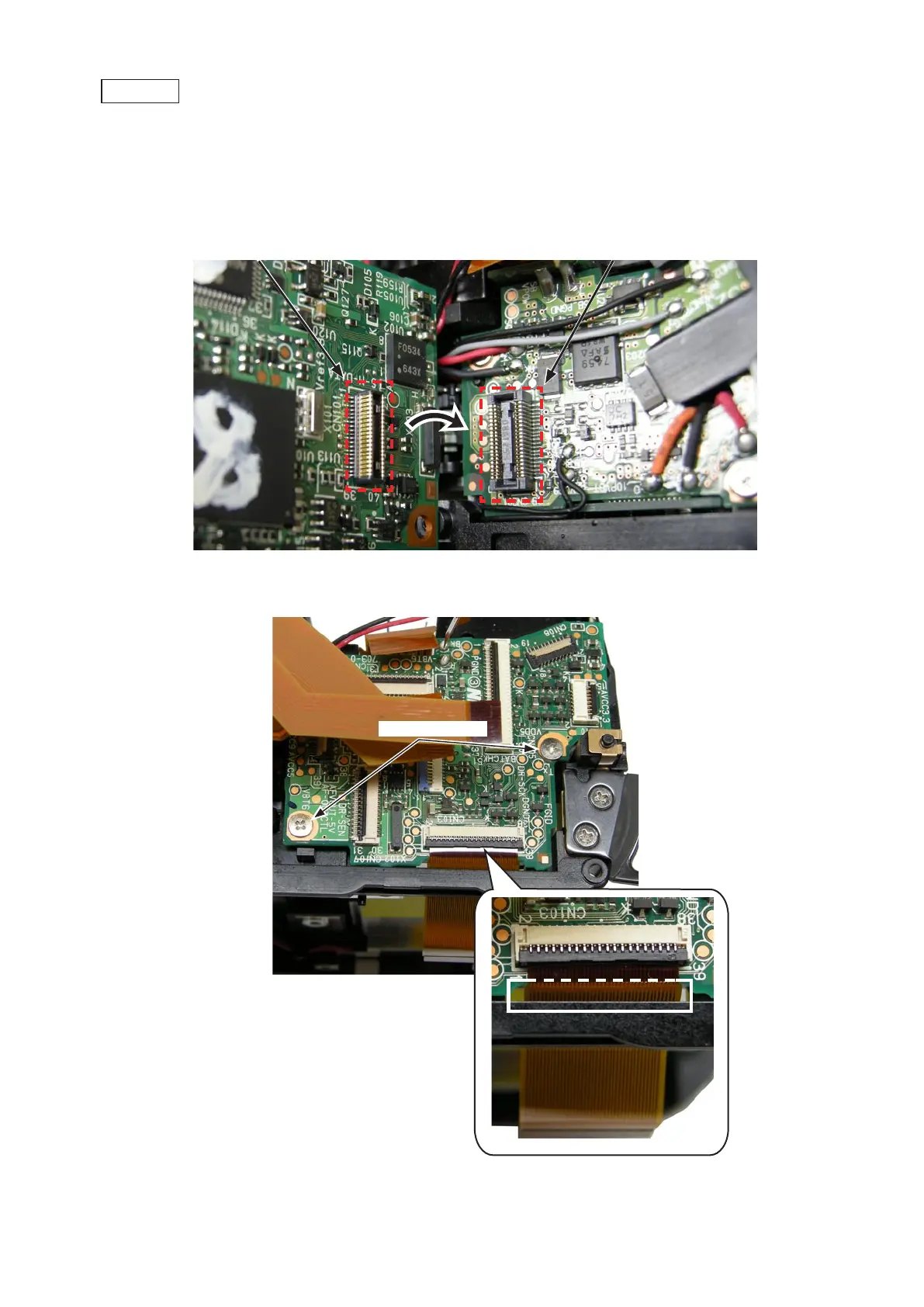

・Mount the main PCB (#1001) by connecting the connectors.main PCB (#1001) by connecting the connectors.
・Place the FPC in the clearance between the PCB and rear body.FPC in the clearance between the PCB and rear body.
・Tighten the two screws (#640).Tighten the two screws (#640).
Power drive PCB (#B1002)
Screw
×
2 (#640)
Main PCB
Main PCB (#1001)
INC
