VBA23001-R.3762.A
- A40 ･ D90 -

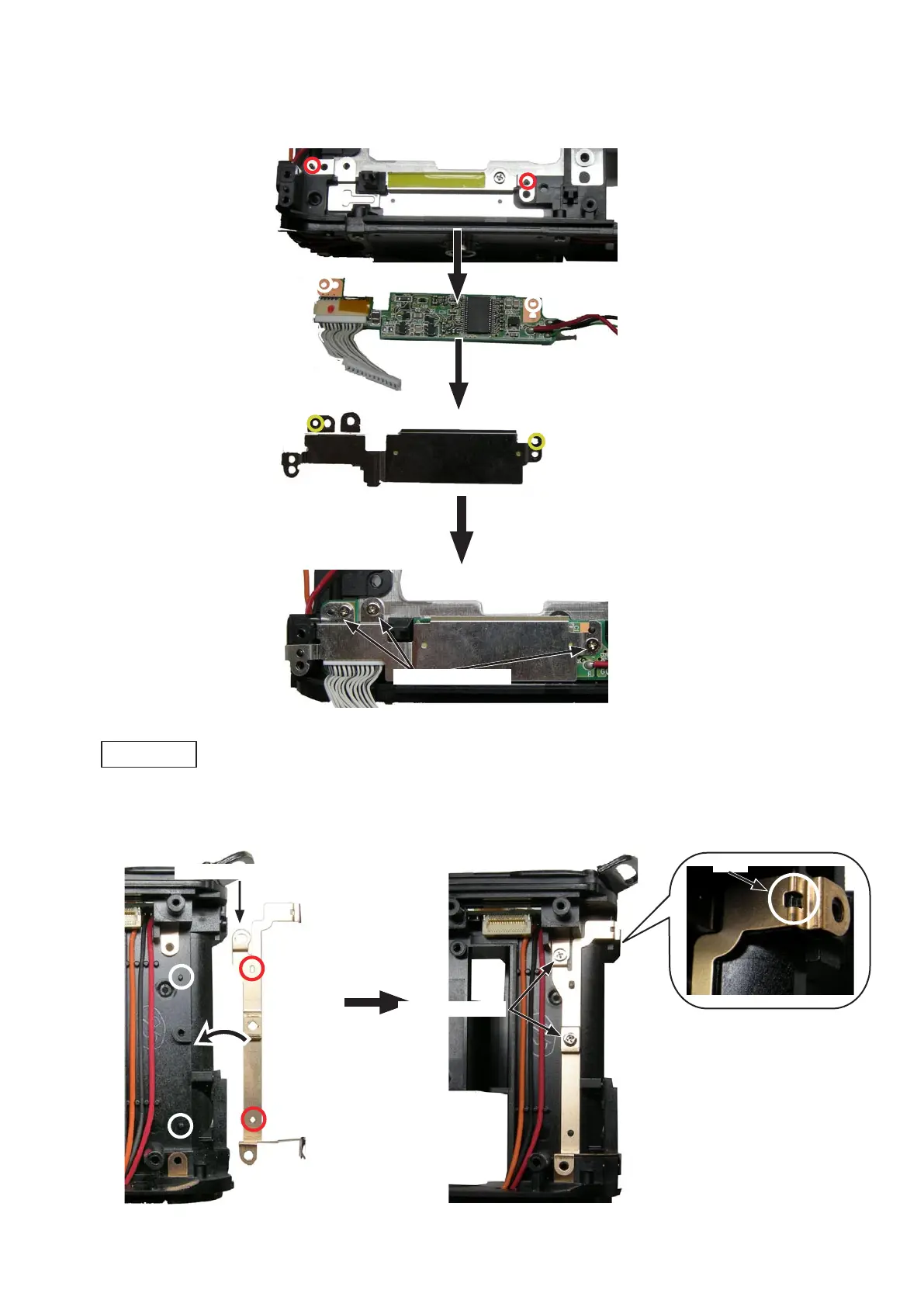

・Mount the imaging power PCB unit (#B1029) and the shield plate (#B108) by the fitting with the bosses.Mount the imaging power PCB unit (#B1029) and the shield plate (#B108) by the fitting with the bosses.
・Tighten the three screws (#683).Tighten the three screws (#683).
Shield plate (#B108)
Imaging power PCB unit (#B1029)
・Mount the GND plate (#110) by fitting with the bosses.Mount the GND plate (#110) by fitting with the bosses.
・Hook the GND plate (#110), and tighten the two screws (#683).Hook the GND plate (#110), and tighten the two screws (#683).
Hook
Screw (#683)
×
2
GND plate (#110)
Screw (#683)
×
3
DC/DC PCB
INC
