VBA23001-R.3762 .A
- D60 ･ D90 -
・

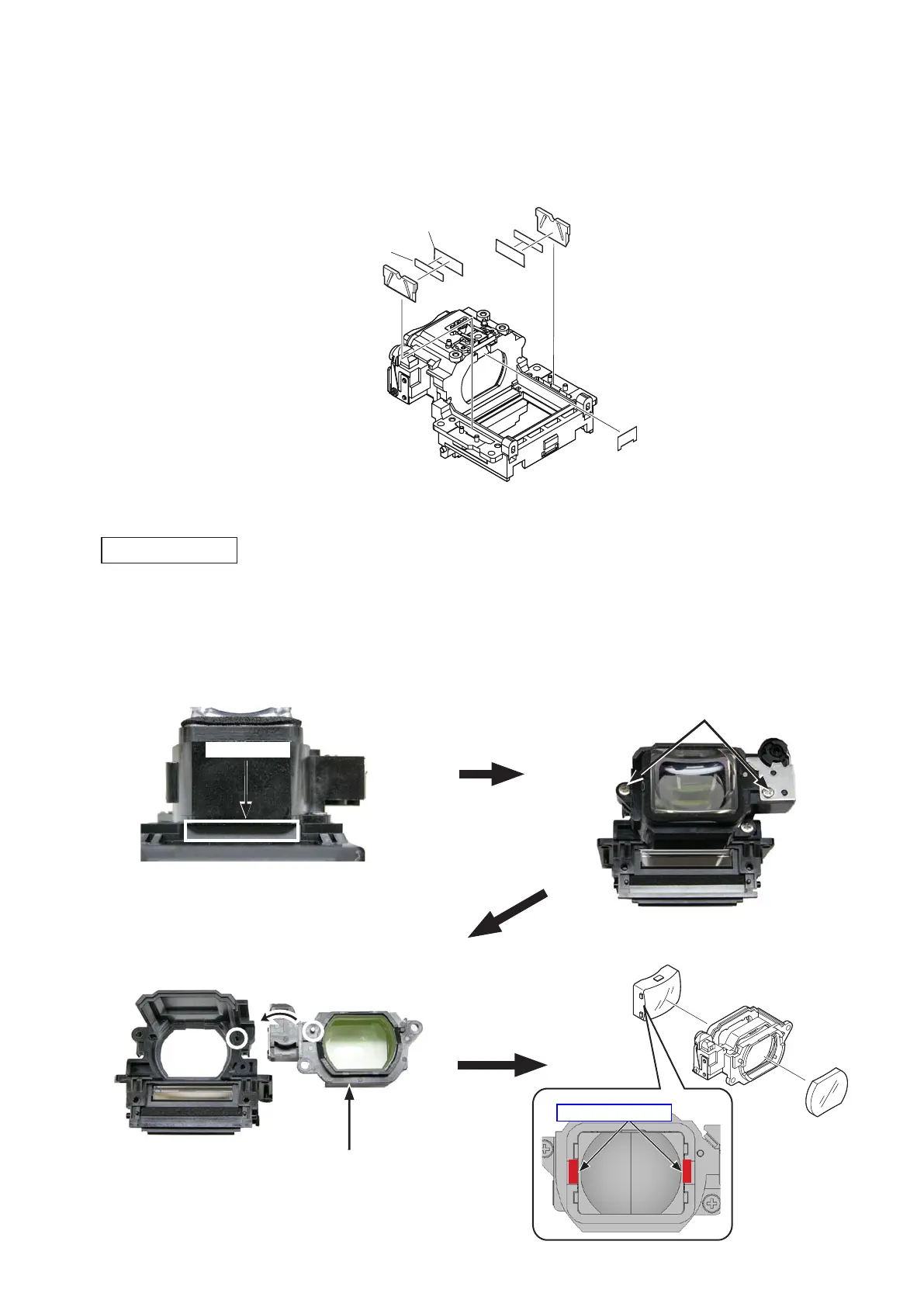

Peel off the tape (#783).
・
Take out the two screws (#642).
・
Remove the eyepiece barrel unit (#B271) from the penta prism box unit (#B261RP).
・
Remove the eyepiece lens 1 (#5) and eyepiece lens 3 (#7).
Screw (#642)
×
2
Eyepiece barrel unit
・Peel off the tape (#521).Peel off the tape (#521).
・Remove the light guide (#503).Remove the light guide (#503).
・Remove the double-stick tape (#504) from the light guide (#503).Remove the double-stick tape (#504) from the light guide (#503).
・Remove the polarizer plate (#502).Remove the polarizer plate (#502).
Eyepiece barrel unit (#B271)
Tape (#783)
Adhesive: Super X
Eyepiece lens 1 (#5)
Eyepiece lens 3 (#7)
[#503]x2
[#504]x2
[#502]x2
[#521]
[#B261RP]
To Next Page
