VBA23001-R.3762.A
- A11 ･ D90 -

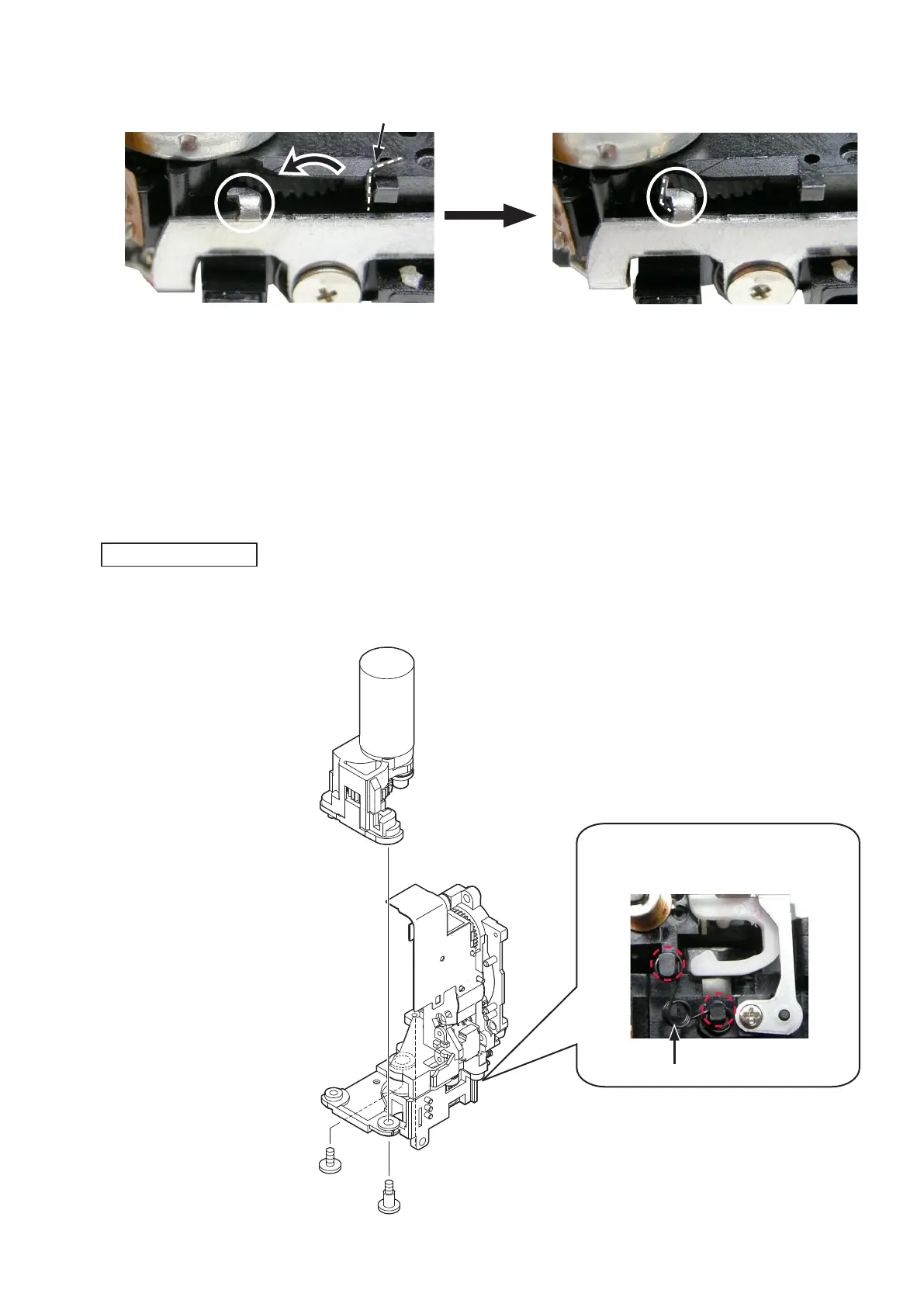

・Hook the spring (#195) as below.Hook the spring (#195) as below.
Spring (#195)
Aperture control PCB
・Assemble the aperture control unit (#B241RP) and the sequence base plate (#B91).Assemble the aperture control unit (#B241RP) and the sequence base plate (#B91).
・Tighten the screw (#630) and (#628).Tighten the screw (#630) and (#628).
(#630)
(#628)
(#B241RP)
(#B91)
ref.) If the spring (#212) comes off, attachspring (#212) comes off, attachattach
it so that it engages the hooks as below.
Spring (#212)
