Nikon VBA23001 User Manual

VBA23001-R.3762 .A
- D74 ･ D90 -

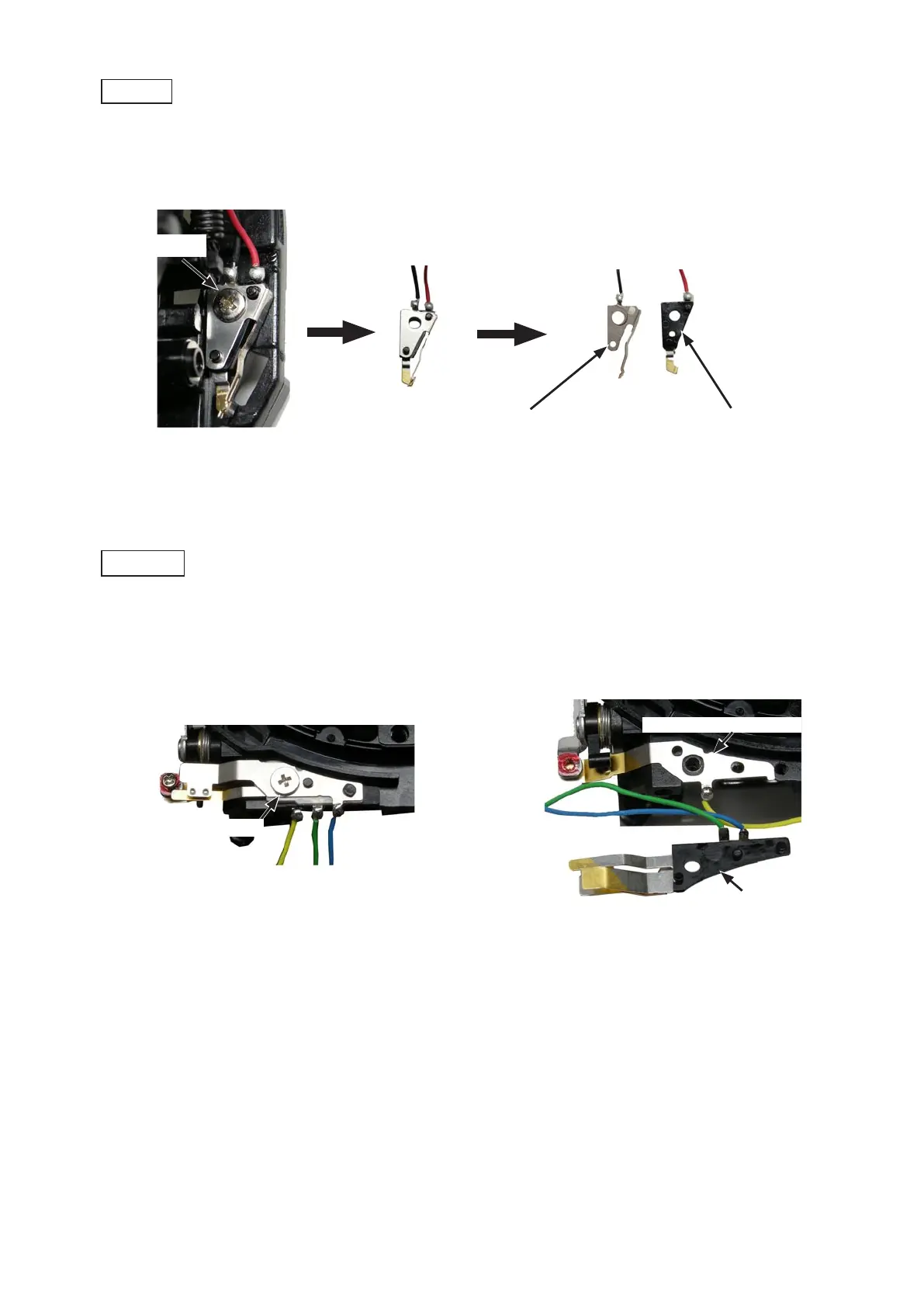

・Take out the screw (#627), and remove the preview sw unit (#B228) and the preview SW (#227).Take out the screw (#627), and remove the preview sw unit (#B228) and the preview SW (#227).
・Unsolder the wires (Yellow/Green/Blue).Unsolder the wires (Yellow/Green/Blue).
・Take out the screw (#642).Take out the screw (#642).
・Remove the f-min SW B (#134), and the f-min SW unit (#B133).Remove the f-min SW B (#134), and the f-min SW unit (#B133).
・Unsolder the wires (Black/Red).Unsolder the wires (Black/Red).
F-min SW B (#134)
F-min sw unit (#B133)
Wire
×
3 (Yellow/Green/Blue)
Preview SW unit (#B228)
Preview SW (#227)
Screw (#642)
Wire
×
2 (Black/Red)
Screw (#627)
F-min SW
Preview sw
INC
