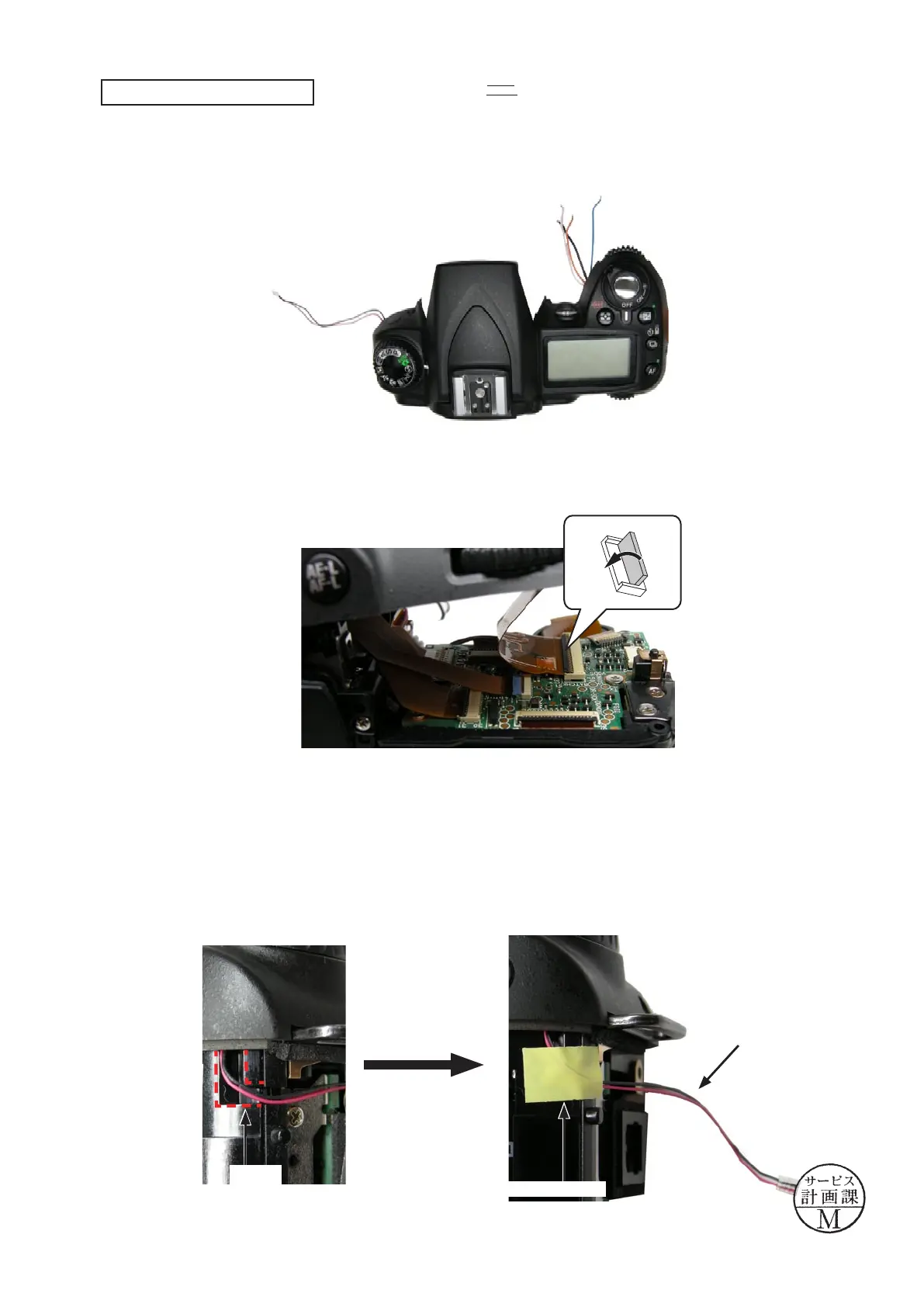

Mount the top cover on the body
・Push the wires (four SB wires and two microphone wires) of the top cover unit (#B23RP) to the bayonet side.Push the wires (four SB wires and two microphone wires) of the top cover unit (#B23RP) to the bayonet side.
・Attach the microphone (#1051) by fitting in the cutout.Attach the microphone (#1051) by fitting in the cutout.
・Attach the tape [TA0005 (6Attach the tape [TA0005 (6
×
10)] to fix the microphone lead wires.
・Connect the FPC of the top cover unit (#B23RP).Connect the FPC of the top cover unit (#B23RP).
(Refer to Page A69 for
"Inspection and adjustment of
AE-CCD position
"
.)
Cutout
Wires of the
microphone (#1051)
Tape [TA-0005 (6
×
10)]
A75
Changed page △×１
△（Revision）
October. 2. 2008
INC
