VBA23001-R.3762 .A
- D16 ･ D90 -
・Remove the E-ring (#722).Remove the E-ring (#722).
・Remove the spring (#201) and the button (#229).Remove the spring (#201) and the button (#229).
・Remove the snap ring (#387) from behind.snap ring (#387) from behind.
・Remove the buttons (#391 and #392) from the front cover unit .Remove the buttons (#391 and #392) from the front cover unit .
Front cover unit (#B24)
Button (#391)
Button (#392)
Snap ring (#387)
Spring (#201)
Button (#229)
E-ring (#722)
Front cover unit (#B24)
Screw (#611)
×2
Screw (#613)
×2

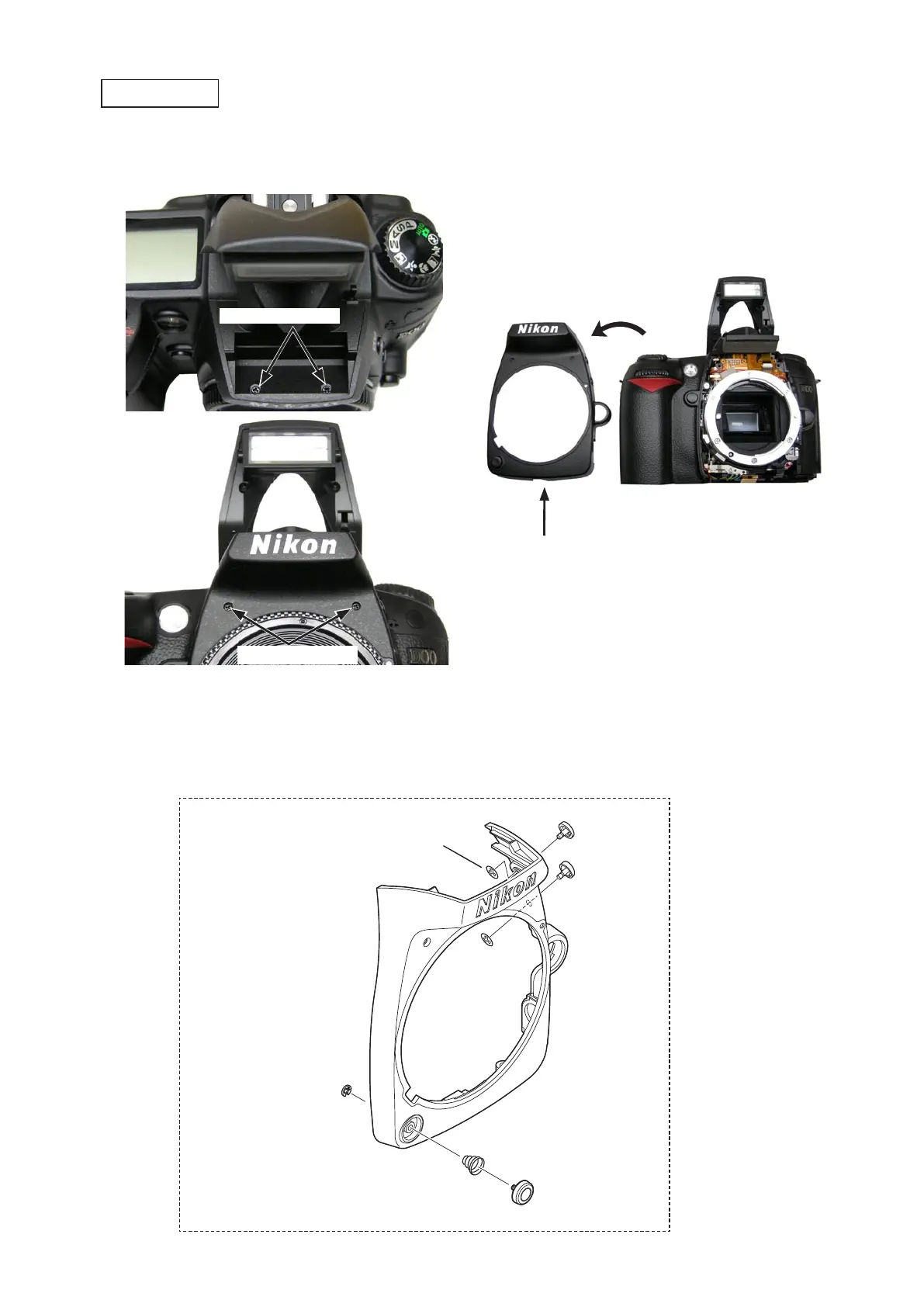

Front cover unit
・ Take out the two screws (#611).
・ Take out the two screws (#613).
・ Remove the front cover unit (#B24).
Front cover unit
To Next Page
