VBA23001-R.3762.A
- A78 ･ D90 -

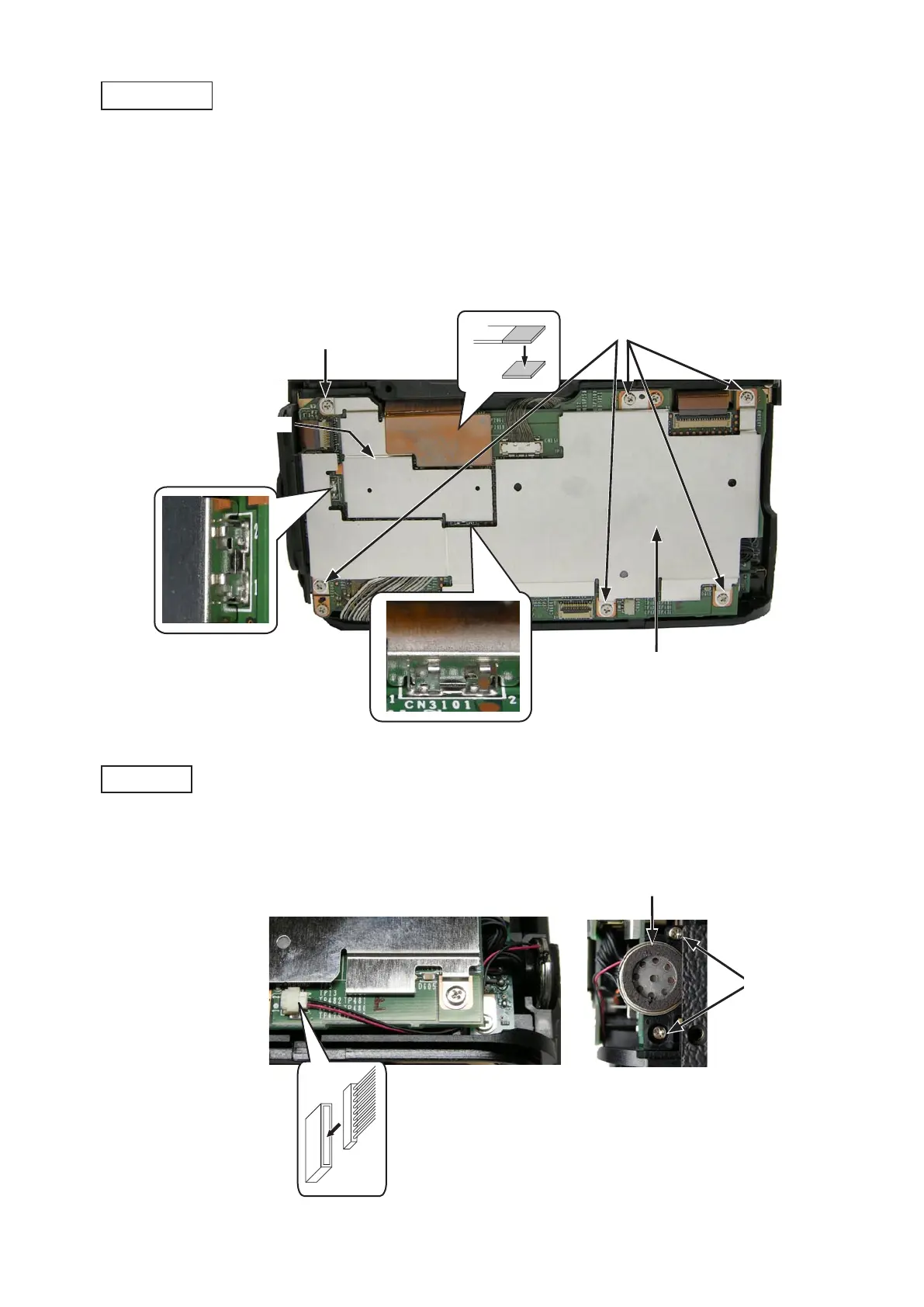

・Mount the shield plate (#78) and the shield plate unit (#B79) carefully not to damage the clip.Mount the shield plate (#78) and the shield plate unit (#B79) carefully not to damage the clip.
・Tighten the six screws (#683).Tighten the six screws (#683).
・Connect the FPC of the DG-PCB unit.Connect the FPC of the DG-PCB unit.
・Mount the speaker unit (#B45), and tighten the two screws (#612).Mount the speaker unit (#B45), and tighten the two screws (#612).
Speaker unit (#B45)
Shield plate unit (#B79)
Screw
×1
(#683)
Shield plate (#78)
Screw
×5
(#683)
Screw
×2
(#612)
DG shield plate
Speaker unit
INC
