VBA23001-R.3762.A
- A61 ･ D90 -

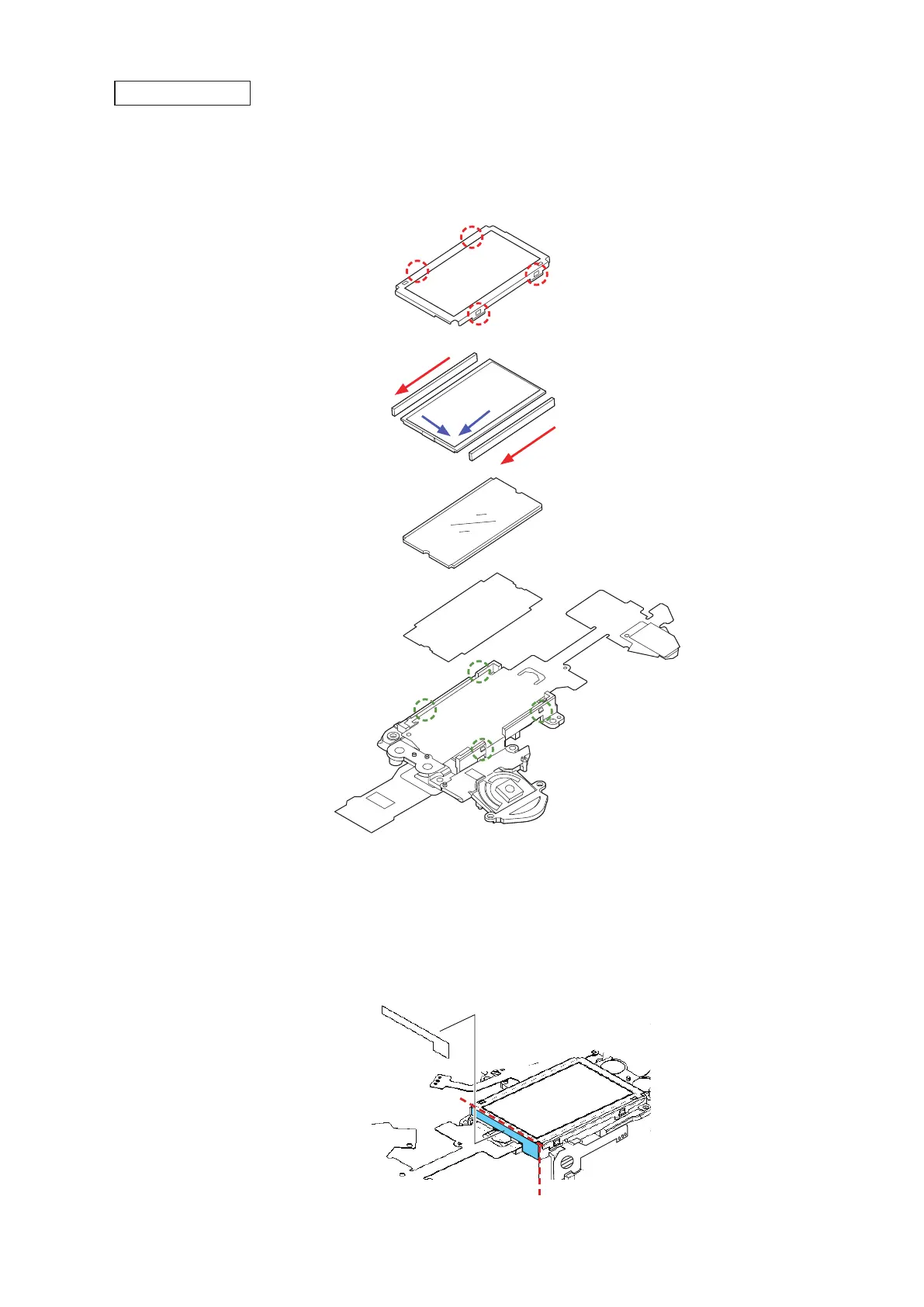

Top cover FPC unit
・Mount the reflection sheet (#334) and the light guide (#333) to the top cover FPC unit (#B1007RP).Mount the reflection sheet (#334) and the light guide (#333) to the top cover FPC unit (#B1007RP).
・Position the two conducting rubber (#332) in the direction of the red arrows, and attach them.conducting rubber (#332) in the direction of the red arrows, and attach them.and attach them.
・Position the upper LCD (#1044) in the direction of the blue arrows, and mount them.upper LCD (#1044) in the direction of the blue arrows, and mount them.
・Mount the plate (#331) by engaging the four hooks of the top cover FPC unit (#B1007RP).Mount the plate (#331) by engaging the four hooks of the top cover FPC unit (#B1007RP).
Tape (#825)
・Attach the tape (#825).Attach the tape (#825).
Reference position
Reflection sheet (#334)
Light guide (#333)
Conducting rubber (#332)
×
2
Upper LCD (#1044)
Plate (#331)
Top cover FPC unit (#B1007RP)
To Next Page
