VBA23001-R.3762 .A
- D14
･
D90 -
・
T

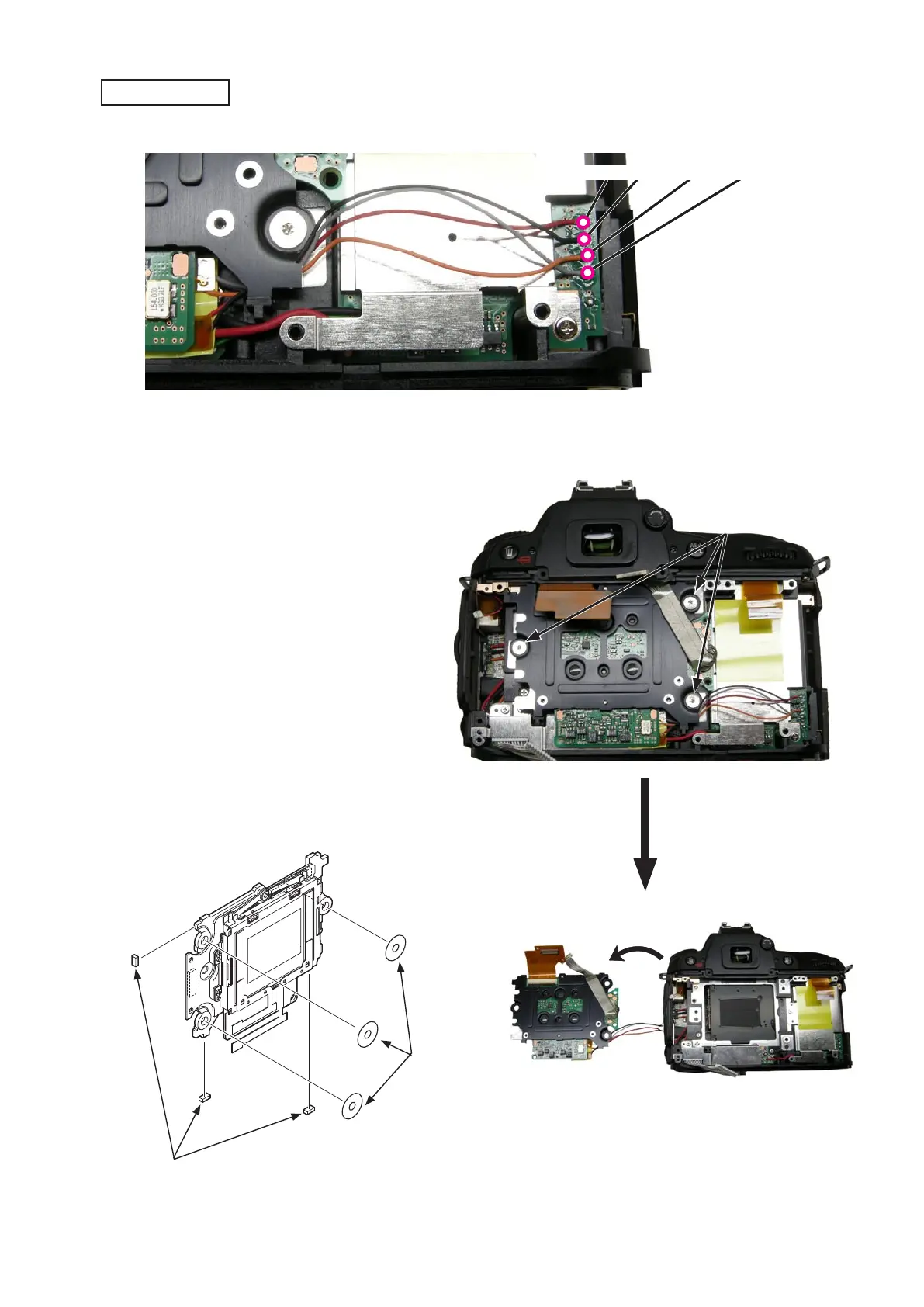

ake out the three screws (#680), and remove the image sensor unit (#B1051).
Caution: Some bodies have already the lumirror sheet T=0.1(#62) and washer (#63) attached. (ref. page
A46)
・
Unsolder
the
wires
(Red/Black/Orange/Gray).
Unsolder the wires (Red/Black/Orange/Gray).
Screw (#680)
×3
Image sensor unit (#B1051)
W
ire
×4
(Red/Black/Orange/Gray)
Image sensor unit
[
#62
]
[#63
]
INC
19
21
Table of Contents
Default Chapter
2
Table of Contents
2
Points to Notice for Disassembly and Assembly
7
Disassembly
8
External Area
8
Bottom Cover
8
Removal of Back Cover
9
Back Cover
10
Rear Display FPC Unit
10
TFT Monitor
14
Button / SW-Related
15
SD Cover Unit
16
Speaker Unit
18
DG-Shield Plate
18
DG PCB Unit
19
Image Sensor Unit
20
A/M Cover Plat
21
SB Pop-Up
21
Front Cover Unit
22
Grip Rubber Unit
23
I/F Cover
24
Removal of Top Cover
26
Top Cover
29
AF-Assist Lamp Unit
29
Top Cover FPC Unit
29
AE-L Button
34
Top Cover Grip Button
34
Power Dial
35
Hot Shoe
36
SB Upper Cover
36
SB Lower Control Unit
37
Remote Control Unit
40
M/D FPC Unit
40
Delete Button
41
Mode Dial
41
Microphone
41
Removal of the Main Condenser
43
Main PCB Unit
44
Separation of Front Body from Rear Body
46
Eyepiece Mold
46
Rear Body
48
Sb/If Pcb
48
DC/DC Pcb
48
Imaging Power PCB Unit
50
Bottom Plate Unit
51
Power Drive PCB Unit
52
Battery Contact-Spring
54
Eyelet
56
Buzzer Unit
57
Drip-Proof Sponge
57
Dust-Proof Tape
58
Separation of Prism Box Unit from Front Body Unit
59
Prism Box Unit
60
Metering FPC Unit
60
Inside Finder LCD Unit
60
Penta Prism
63
Penta Prism FPC Unit
63
Eyepiece Barrel Unit
66
Front Body Unit
67
Sb Pcb
67
Shutter Unit
68
AF CCD Unit
68
Front Body FPC
70
Aperture Control Unit
72
AF Driving Base
75
Bayonet
76
A/M Change Sw
78
Release Button
79
F-Min SW
80
Preview Sw
80
Main Mirror Unit
81
Assembly / Adjustment
83
Front Body Unit
83
Main Mirror Unit
85
Preview SW
86
F-Min SW
87
Release Button
87
A/M Change SW
89
Bayonet
90
AF Driving Base
92
Aperture Control PCB
93
Front Body FPC
96
AF CCD Unit
99
Shutter Unit
100
Sb Pcb
102
Height Adjustment of AF Coupling Shaft
103
Height Adjustment of Aperture Lever
103
Angle Inspection and Adjustment of Main Mirror and Sub-Mirror
104
Angle Adjustment of Main Mirror and Sub-Mirror
105
Prism Box
106
Eyepiece Barrel Unit
106
Penta Prism FPC Unit
107
Penta Prism
107
Screen Box
110
Inside Finder LCD Unit
112
Rear Body
114
Dust-Proof Tape
114
Drip-Proof Sponge
114
Buzzer Unit
115
Eyelet
116
Battery Contact Spring
118
Power Drive PCB Unit
119
Bottom Plate Unit
120
Imaging Power PCB Unit
121
DC/DC Pcb
122
SB/IF PCB Unit
125
4 .Mounting Front Body on Rear Body.
126
Eyepiece Mold
126
Inspection and Adjustment of Body Back
127
Main PCB
130
Mount the Main Condenser
132
Top Cover
133
Microphone
134
Mode Dial
134
Delete Button
135
M/D FPC Unit
135
Remote Control Unit
136
SB Lower Control Unit
137
SB Upper Cover
139
Hot Shoe
140
Power Dial
141
Top Cover Grip Button
142
AE-L Button
142
Top Cover FPC Unit
143
AF Assist Lamp Unit
147
Mount the Top Cover on the Body
148
I/F Cover
151
Grip Rubber Unit
152
Front Cover Unit
153
A/M Cover Plate
154
Image Sensor Unit
155
DG PCB Unit
156
Inspection and Adjustment of AE CCD Positioning
157
Battery Check Voltage Inspection
159
DG Shield Plate
160
Speaker Unit
160
Accuracy Inspection and Adjustment (Camera Body Exc. Imaging)
161
D90 Inspection and Adjustment Software (J65119)
162
Procedure for Installing USB Driver
166
Necessary Adjustments When Parts Are Replaced Necessary Adjustments When Parts Are Replaced（Camera
168
AE Inspection and Adjustment
169
AF Inspection and Adjustment
171
Back Cover
173
SD Cover Unit
174
Button / SW
175
TFT Monitor
176
Rear Display FPC Unit
177
Mounting of Back Cover
182
External Area
182
Bottom Cover
183
Shooting-Image Adjustment
184
Shooting Image Adjustment Software and Software Updates
185
Image Adjustment
186
Infinity Focus Inspection & Adjustment
191
Measurement of Consumption Current Value
192
Cleaning between Penta Prism and SI-LCD
193
Wiring
194
